| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51597cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51597cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,686,400 | 95,880,960 |
| Size | 535.7 MB | 91.4 MB |
| Events in quadrant A | 4,118,975 | 642,961 |
| Events in quadrant B | 4,447,976 | 697,206 |
| Events in quadrant C | 5,320,041 | 585,770 |
| Events in quadrant D | 6,395,996 | 519,890 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16604 | 2 |
| B | 0 | 17496 | 1 |
| C | 0 | 20268 | 1 |
| D | 0 | 23475 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6557 | 232 | 3.538203% |
| B | 6558 | 282 | 4.300091% |
| C | 6558 | 669 | 10.201281% |
| D | 6558 | 971 | 14.806343% |

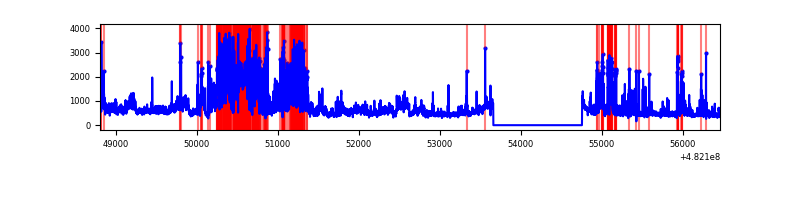

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7652 | 6558 | 76 | 76 | 0.99% | 1.16% |  |
| B | 7653 | 6558 | 145 | 145 | 1.89% | 2.21% |  |
| C | 7653 | 6559 | 437 | 437 | 5.71% | 6.66% |  |
| D | 7653 | 6558 | 774 | 774 | 10.11% | 11.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 250 | 299887 | 1675.65 | 735 | 719 | 178.5 |
| A | 12 | 3 | 272234 | 1520.76 | 735 | 719 | 178.5 |
| A | 4 | 175 | 134032 | 746.69 | 735 | 719 | 178.5 |
| B | 10 | 44 | 507147 | 3278.97 | 724 | 700 | 154.5 |
| B | 4 | 174 | 244062 | 1575.64 | 724 | 700 | 154.5 |
| B | 5 | 185 | 162634 | 1048.44 | 724 | 700 | 154.5 |
| C | 15 | 198 | 1404588 | 7455.23 | 688 | 682 | 188.3 |
| C | 3 | 233 | 910740 | 4832.72 | 688 | 682 | 188.3 |
| C | 13 | 3 | 155859 | 824.04 | 688 | 682 | 188.3 |
| D | 5 | 113 | 1590673 | 8387.45 | 682 | 660 | 189.6 |
| D | 12 | 6 | 926569 | 4884.24 | 682 | 660 | 189.6 |
| D | 2 | 155 | 260538 | 1370.88 | 682 | 660 | 189.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

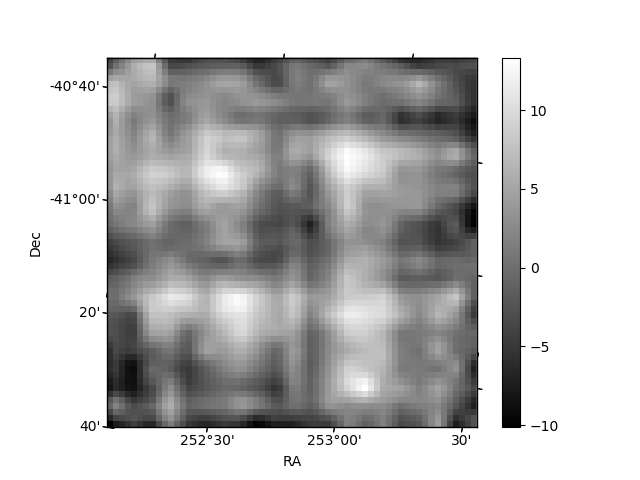

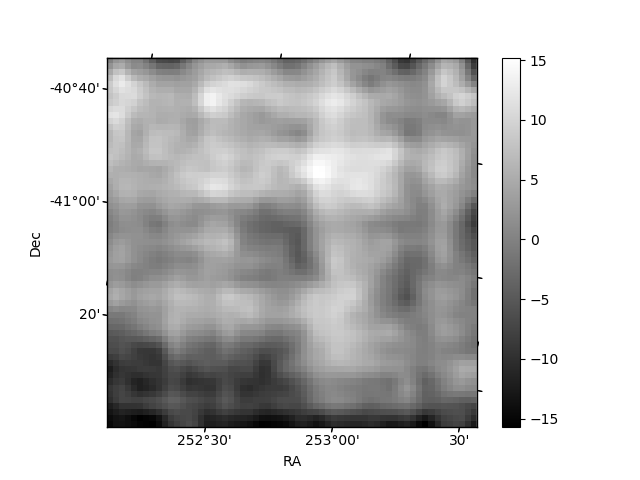

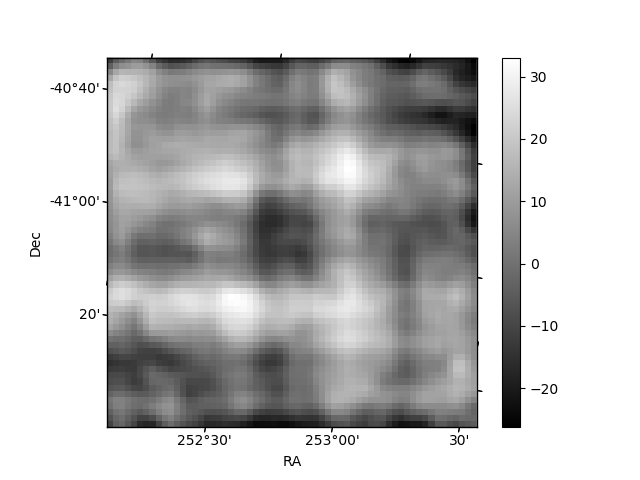

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

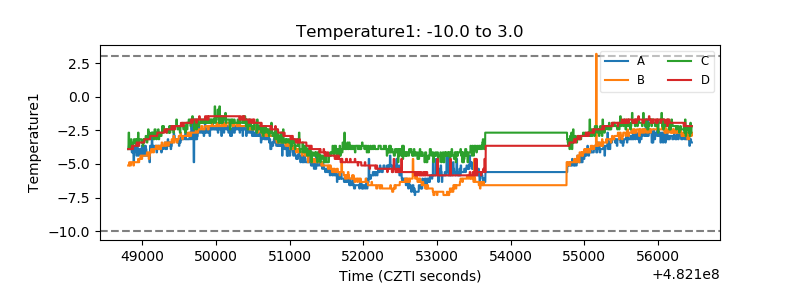

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

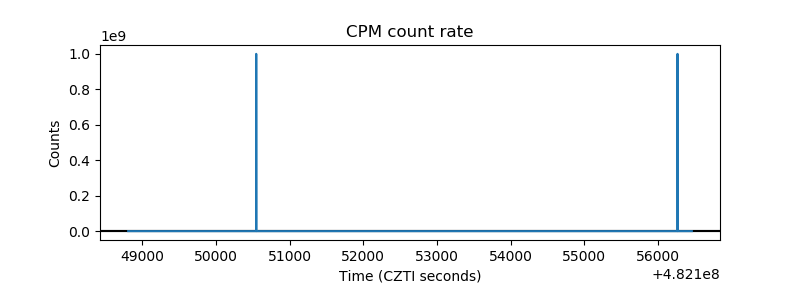

| _CPM_Rate |  |

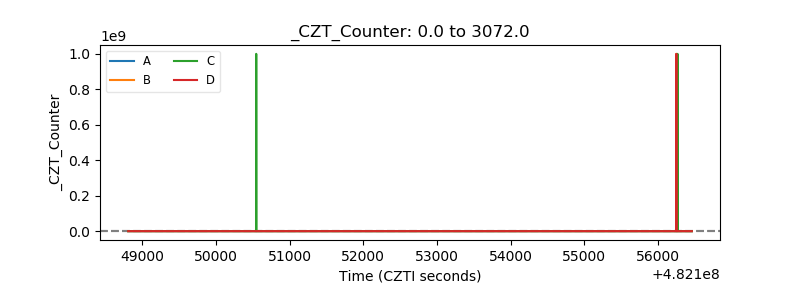

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

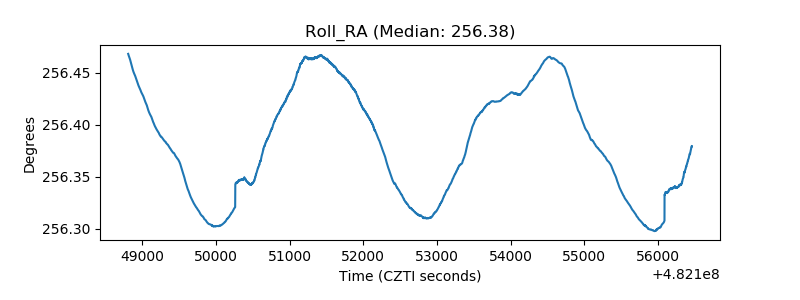

| _Roll_RA |  |
| Veto Counter |  |
