| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51598cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51598cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,745,600 | 100,186,560 |
| Size | 520.5 MB | 95.5 MB |
| Events in quadrant A | 5,449,226 | 644,669 |
| Events in quadrant B | 3,987,914 | 709,742 |
| Events in quadrant C | 4,855,926 | 615,854 |
| Events in quadrant D | 5,379,603 | 587,985 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20812 | 2 |
| B | 0 | 16359 | 2 |
| C | 0 | 19123 | 2 |
| D | 0 | 20539 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6823 | 374 | 5.481460% |
| B | 6823 | 258 | 3.781328% |
| C | 6823 | 454 | 6.653965% |
| D | 6823 | 329 | 4.821926% |

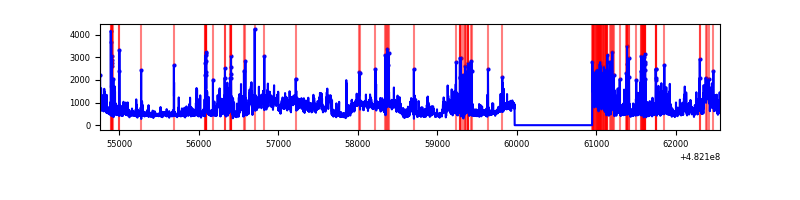

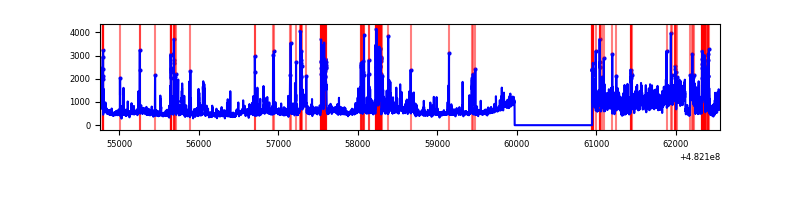

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7798 | 6823 | 137 | 137 | 1.76% | 2.01% |  |
| B | 7798 | 6823 | 65 | 65 | 0.83% | 0.95% |  |
| C | 7798 | 6823 | 245 | 245 | 3.14% | 3.59% |  |
| D | 7798 | 6824 | 219 | 219 | 2.81% | 3.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 1002426 | 5403.88 | 763 | 744 | 185.4 |
| A | 8 | 10 | 499032 | 2688.16 | 763 | 744 | 185.4 |
| A | 12 | 250 | 280764 | 1510.65 | 763 | 744 | 185.4 |
| B | 8 | 128 | 160792 | 982.35 | 760 | 733 | 162.9 |
| B | 5 | 185 | 136644 | 834.14 | 760 | 733 | 162.9 |
| B | 10 | 44 | 111824 | 681.81 | 760 | 733 | 162.9 |
| C | 15 | 198 | 725091 | 3610.43 | 732 | 725 | 200.6 |
| C | 3 | 233 | 560018 | 2787.66 | 732 | 725 | 200.6 |
| C | 13 | 3 | 341044 | 1696.24 | 732 | 725 | 200.6 |
| D | 2 | 163 | 967281 | 4715.93 | 738 | 712 | 205.0 |
| D | 8 | 176 | 402986 | 1962.71 | 738 | 712 | 205.0 |
| D | 3 | 12 | 249599 | 1214.33 | 738 | 712 | 205.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

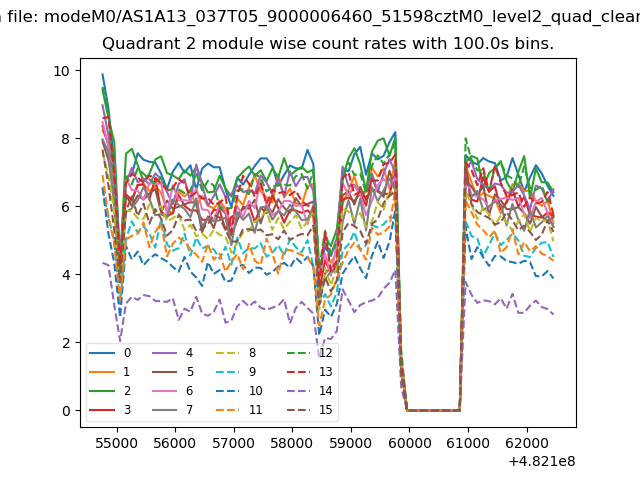

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

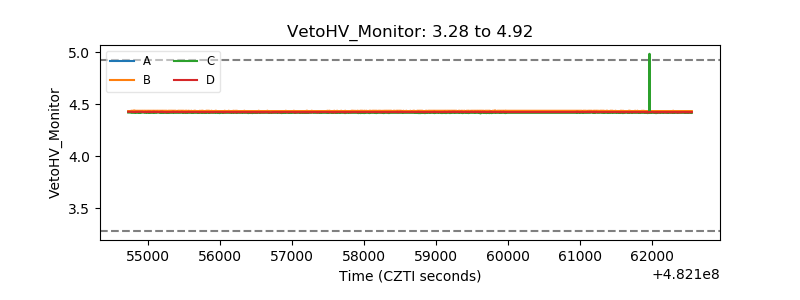

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

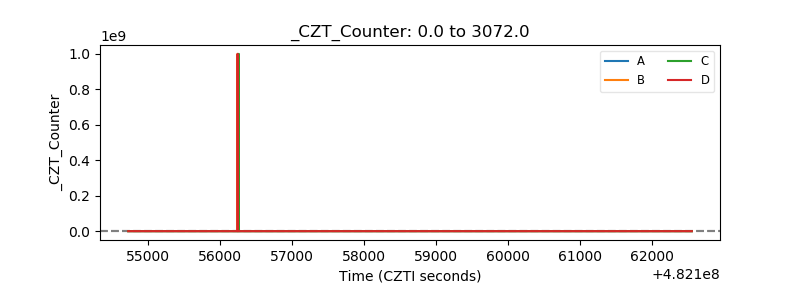

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

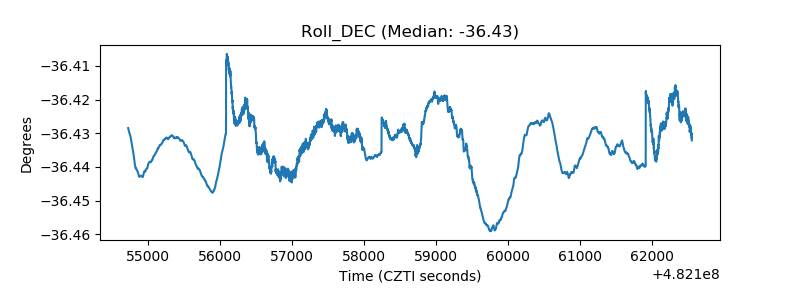

| _Roll_DEC |  |

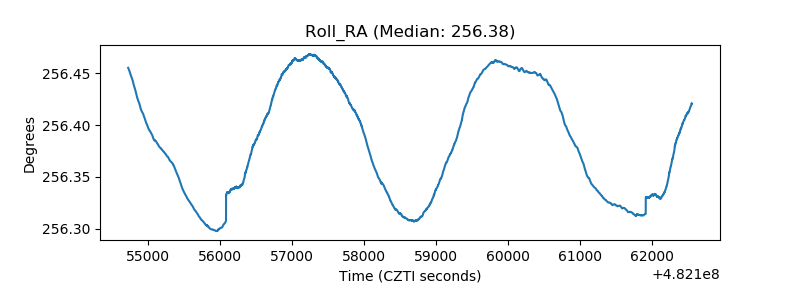

| _Roll_RA |  |

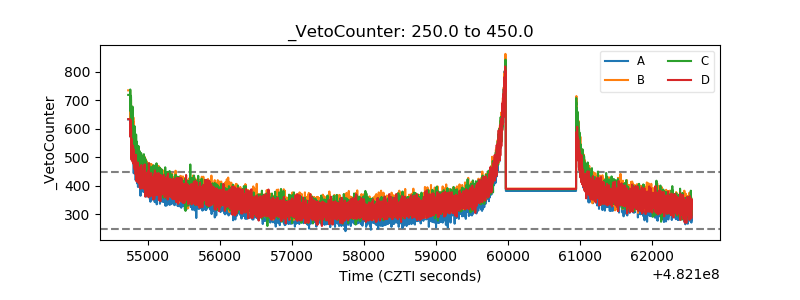

| Veto Counter |  |
