| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51601cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51601cztM0_level2_quad_clean.evt |
| Size (bytes) | 843,465,600 | 103,178,880 |
| Size | 804.4 MB | 98.4 MB |
| Events in quadrant A | 11,056,425 | 541,781 |
| Events in quadrant B | 5,500,772 | 805,005 |
| Events in quadrant C | 8,077,355 | 574,729 |
| Events in quadrant D | 5,963,708 | 642,474 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38428 | 1 |
| B | 0 | 21765 | 1 |
| C | 0 | 29781 | 1 |
| D | 0 | 23419 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8058 | 2664 | 33.060313% |
| B | 8059 | 455 | 5.645862% |
| C | 8059 | 1965 | 24.382678% |
| D | 8059 | 747 | 9.269140% |

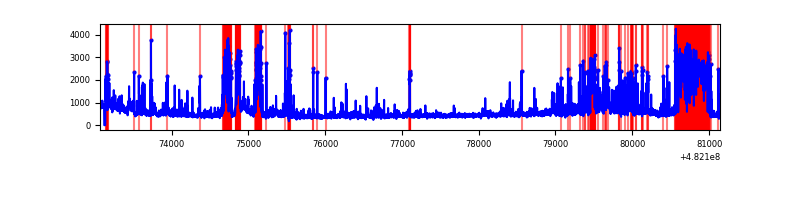

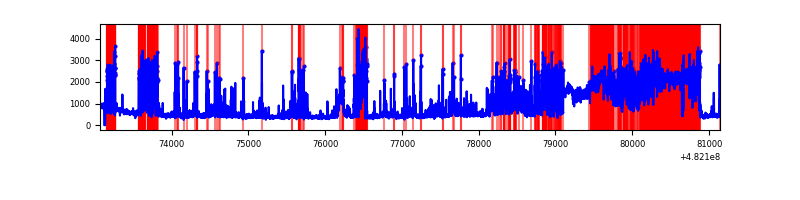

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8073 | 8059 | 1976 | 1976 | 24.48% | 24.52% |  |
| B | 8074 | 8060 | 141 | 141 | 1.75% | 1.75% |  |
| C | 8074 | 8060 | 1218 | 1218 | 15.09% | 15.11% |  |
| D | 8074 | 8060 | 618 | 618 | 7.65% | 7.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 250 | 3038058 | 15949.5 | 771 | 752 | 190.4 |
| A | 7 | 160 | 1725838 | 9058.77 | 771 | 752 | 190.4 |
| A | 4 | 175 | 1205314 | 6325.39 | 771 | 752 | 190.4 |
| B | 5 | 185 | 535845 | 2837.44 | 883 | 853 | 188.5 |
| B | 5 | 172 | 331036 | 1751.19 | 883 | 853 | 188.5 |
| B | 4 | 174 | 253743 | 1341.25 | 883 | 853 | 188.5 |
| C | 15 | 198 | 2856781 | 14082.81 | 742 | 735 | 202.8 |
| C | 13 | 3 | 979850 | 4827.89 | 742 | 735 | 202.8 |
| C | 1 | 243 | 397688 | 1957.33 | 742 | 735 | 202.8 |
| D | 12 | 6 | 1051535 | 4609.69 | 831 | 802 | 227.9 |
| D | 8 | 176 | 385655 | 1688.4 | 831 | 802 | 227.9 |
| D | 7 | 159 | 254763 | 1114.16 | 831 | 802 | 227.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

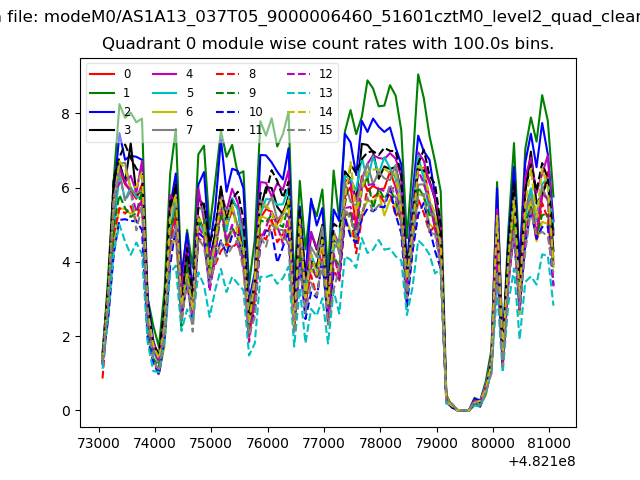

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

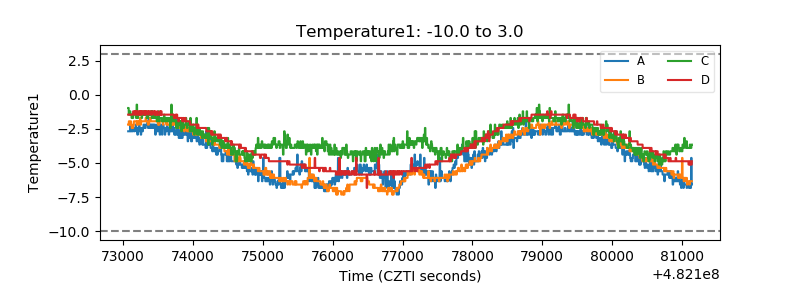

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

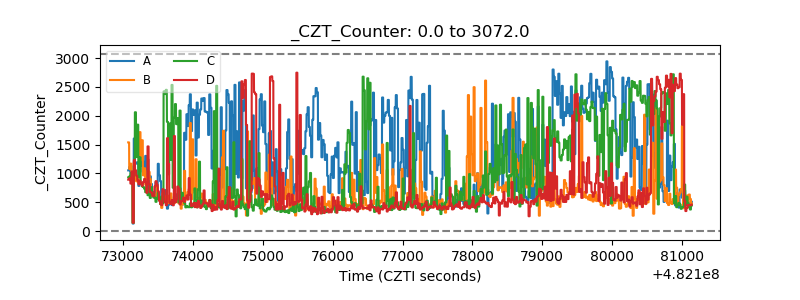

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
