| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51625cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51625cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,323,877,760 | 419,322,240 |
| Size | 2.2 GB | 399.9 MB |
| Events in quadrant A | 21,619,081 | 2,650,457 |
| Events in quadrant B | 19,147,276 | 2,975,125 |
| Events in quadrant C | 15,947,784 | 2,689,568 |
| Events in quadrant D | 27,034,648 | 2,355,878 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84377 | 5 |
| B | 0 | 76832 | 5 |
| C | 0 | 68554 | 5 |
| D | 0 | 101097 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 598 | 0 |
| B | 0 | 598 | 0 |
| C | 0 | 598 | 0 |
| D | 0 | 598 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 29458 | 2129 | 7.227239% |
| B | 29459 | 1307 | 4.436675% |
| C | 29459 | 622 | 2.111409% |
| D | 29458 | 2821 | 9.576346% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 44534 | 29462 | 1678 | 1678 | 3.77% | 5.70% |  |
| B | 44535 | 29462 | 751 | 751 | 1.69% | 2.55% |  |
| C | 44535 | 29464 | 405 | 405 | 0.91% | 1.37% |  |
| D | 44534 | 29462 | 2639 | 2639 | 5.93% | 8.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 3324453 | 4357.4 | 3130 | 3061 | 762.2 |
| A | 12 | 250 | 2381631 | 3120.49 | 3130 | 3061 | 762.2 |
| A | 4 | 175 | 944315 | 1234.85 | 3130 | 3061 | 762.2 |
| B | 5 | 185 | 1198415 | 1790.06 | 3146 | 3030 | 667.8 |
| B | 5 | 172 | 1038994 | 1551.33 | 3146 | 3030 | 667.8 |
| B | 10 | 41 | 875394 | 1306.35 | 3146 | 3030 | 667.8 |
| C | 15 | 255 | 769587 | 891.82 | 3137 | 3105 | 859.5 |
| C | 13 | 3 | 741453 | 859.09 | 3137 | 3105 | 859.5 |
| C | 14 | 245 | 536295 | 620.38 | 3137 | 3105 | 859.5 |
| D | 0 | 18 | 3852996 | 4588.38 | 2993 | 2892 | 839.1 |
| D | 8 | 176 | 2014042 | 2396.8 | 2993 | 2892 | 839.1 |
| D | 7 | 60 | 1533615 | 1824.25 | 2993 | 2892 | 839.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

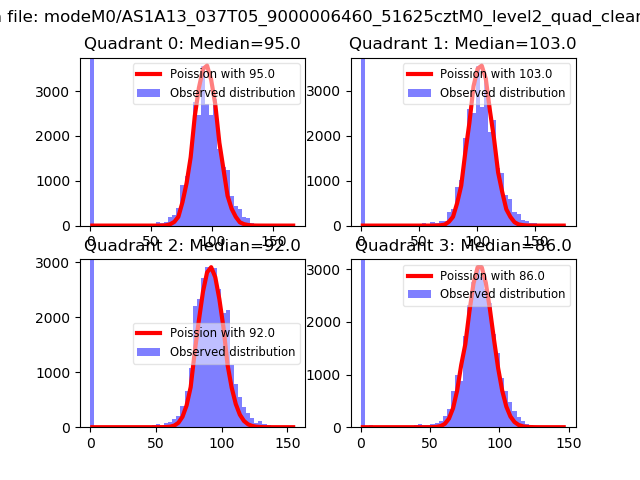

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

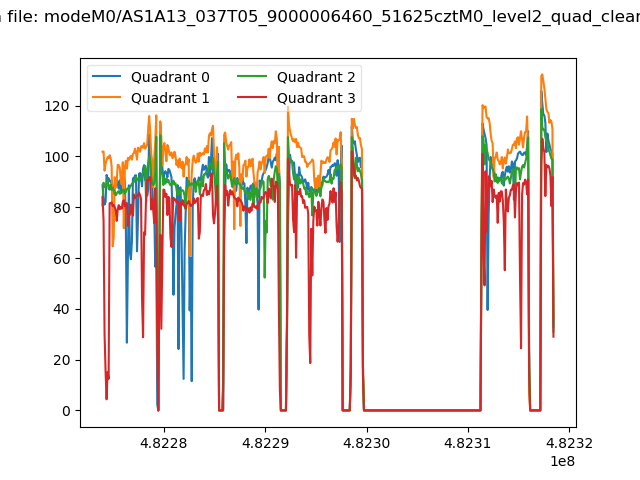

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

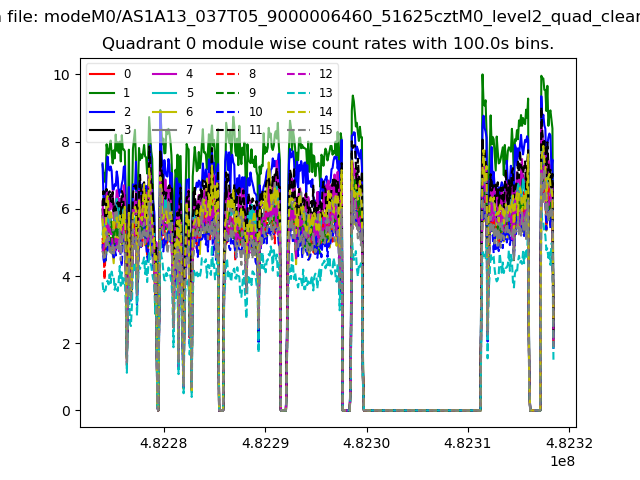

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

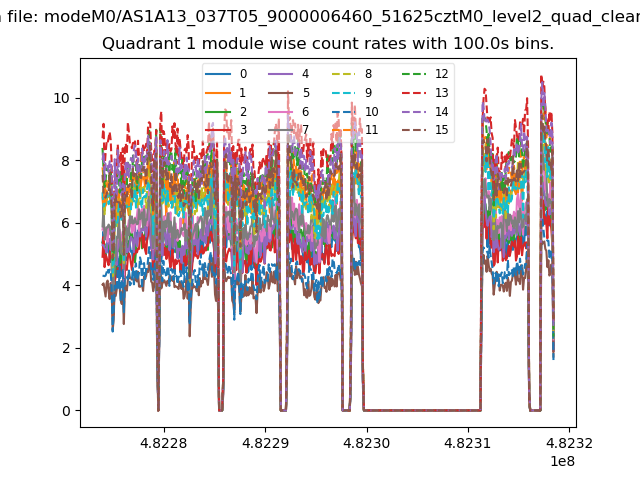

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

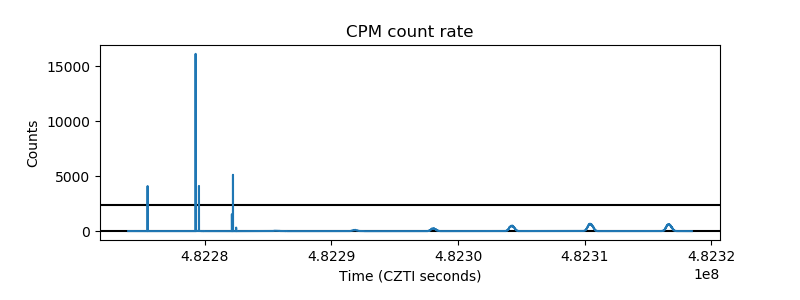

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

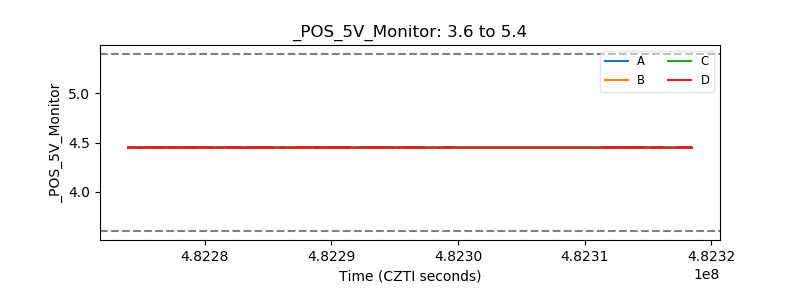

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

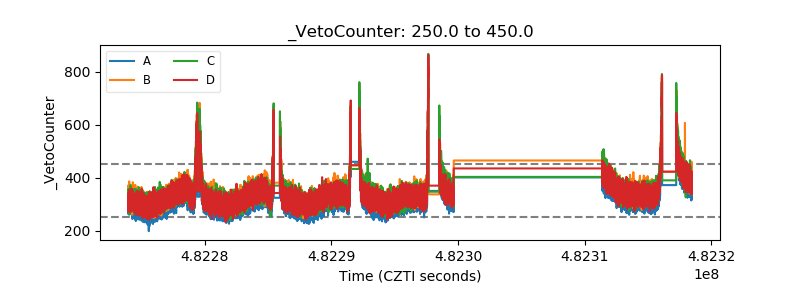

| Veto Counter |  |
