| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51628cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51628cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,311,040 | 102,775,680 |
| Size | 523.9 MB | 98.0 MB |
| Events in quadrant A | 6,955,592 | 618,575 |
| Events in quadrant B | 4,108,291 | 723,725 |
| Events in quadrant C | 4,259,085 | 653,470 |
| Events in quadrant D | 4,455,746 | 617,395 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25620 | 4 |
| B | 0 | 17034 | 2 |
| C | 0 | 17635 | 2 |
| D | 0 | 18210 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7153 | 953 | 13.323081% |
| B | 7153 | 268 | 3.746680% |
| C | 7153 | 239 | 3.341255% |
| D | 7153 | 188 | 2.628268% |

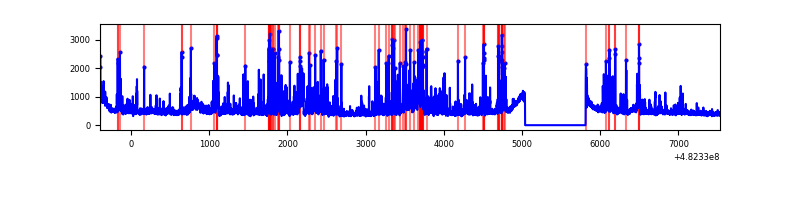

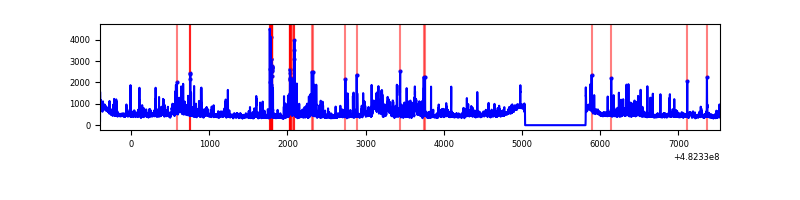

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7928 | 7154 | 583 | 583 | 7.35% | 8.15% |  |
| B | 7928 | 7154 | 49 | 49 | 0.62% | 0.68% |  |
| C | 7928 | 7154 | 116 | 116 | 1.46% | 1.62% |  |
| D | 7928 | 7154 | 110 | 110 | 1.39% | 1.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1913546 | 10159.46 | 772 | 753 | 188.3 |
| A | 12 | 3 | 1135510 | 6027.06 | 772 | 753 | 188.3 |
| A | 12 | 250 | 257635 | 1364.38 | 772 | 753 | 188.3 |
| B | 5 | 185 | 121660 | 706.11 | 797 | 771 | 171.2 |
| B | 0 | 213 | 113846 | 660.47 | 797 | 771 | 171.2 |
| B | 10 | 44 | 107695 | 624.54 | 797 | 771 | 171.2 |
| C | 14 | 245 | 257564 | 1203.76 | 782 | 776 | 213.3 |
| C | 15 | 189 | 202989 | 947.92 | 782 | 776 | 213.3 |
| C | 13 | 3 | 163186 | 761.34 | 782 | 776 | 213.3 |
| D | 8 | 176 | 466080 | 2154.15 | 781 | 753 | 216.0 |
| D | 3 | 12 | 315131 | 1455.36 | 781 | 753 | 216.0 |
| D | 1 | 3 | 162741 | 749.9 | 781 | 753 | 216.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

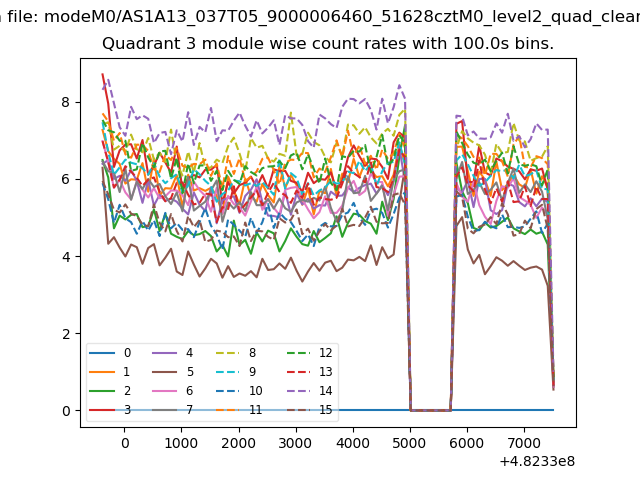

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

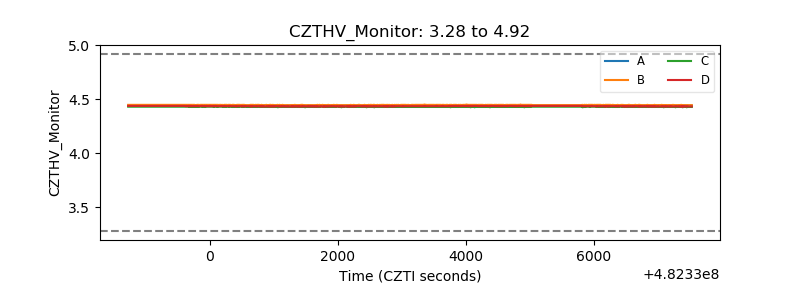

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

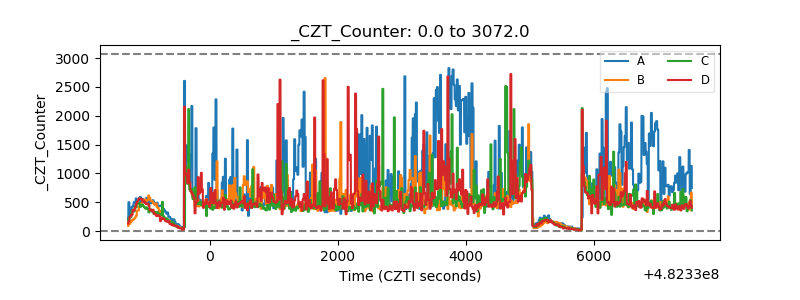

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

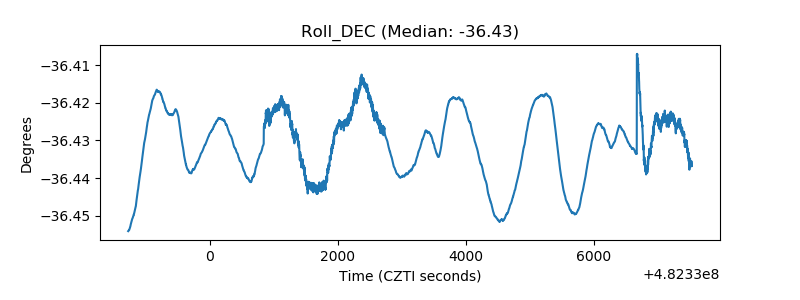

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
