| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51629cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51629cztM0_level2_quad_clean.evt |
| Size (bytes) | 651,133,440 | 102,081,600 |
| Size | 621.0 MB | 97.4 MB |
| Events in quadrant A | 9,639,423 | 560,128 |
| Events in quadrant B | 4,122,879 | 738,708 |
| Events in quadrant C | 5,175,719 | 650,085 |
| Events in quadrant D | 4,584,824 | 621,222 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33888 | 2 |
| B | 0 | 17302 | 2 |
| C | 0 | 20749 | 2 |
| D | 0 | 19071 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7479 | 1773 | 23.706378% |
| B | 7479 | 363 | 4.853590% |
| C | 7479 | 560 | 7.487632% |
| D | 7480 | 395 | 5.280749% |

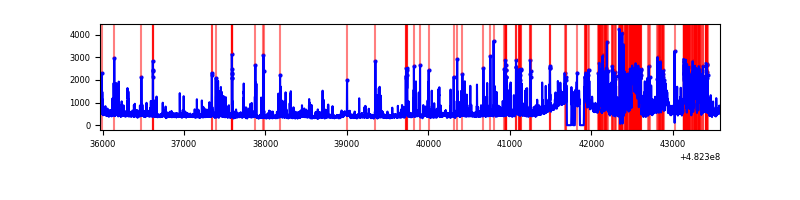

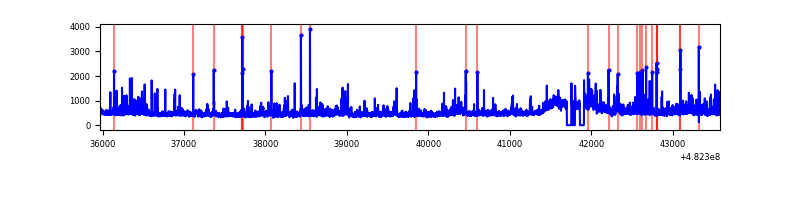

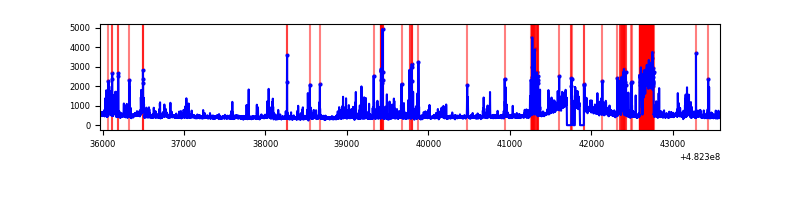

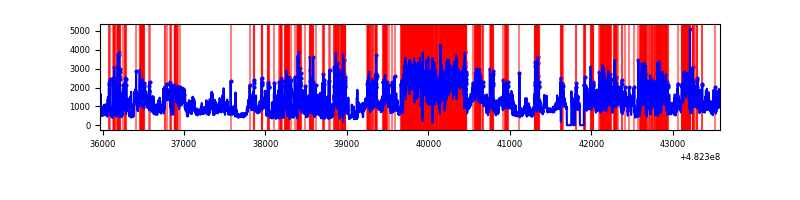

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 7482 | 1181 | 1181 | 15.52% | 15.78% |  |
| B | 7609 | 7482 | 26 | 26 | 0.34% | 0.35% |  |
| C | 7609 | 7482 | 320 | 320 | 4.21% | 4.28% |  |
| D | 7610 | 7483 | 216 | 216 | 2.84% | 2.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 2326807 | 12346.89 | 777 | 755 | 188.4 |
| A | 7 | 64 | 2020088 | 10718.8 | 777 | 755 | 188.4 |
| A | 15 | 174 | 736236 | 3904.0 | 777 | 755 | 188.4 |
| B | 1 | 207 | 143778 | 784.86 | 838 | 807 | 182.2 |
| B | 0 | 213 | 79885 | 434.11 | 838 | 807 | 182.2 |
| B | 8 | 128 | 74831 | 406.36 | 838 | 807 | 182.2 |
| C | 9 | 38 | 497303 | 2240.47 | 810 | 805 | 221.6 |
| C | 10 | 19 | 386093 | 1738.63 | 810 | 805 | 221.6 |
| C | 13 | 3 | 373840 | 1683.33 | 810 | 805 | 221.6 |
| D | 8 | 176 | 413344 | 1839.73 | 810 | 780 | 224.3 |
| D | 10 | 172 | 403754 | 1796.97 | 810 | 780 | 224.3 |
| D | 2 | 249 | 133865 | 593.46 | 810 | 780 | 224.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

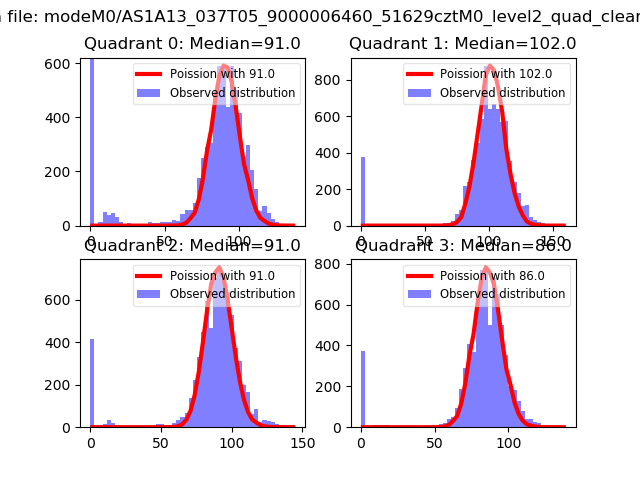

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

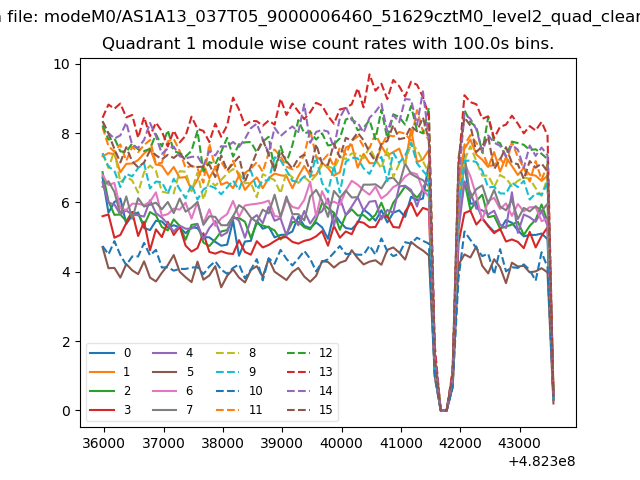

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

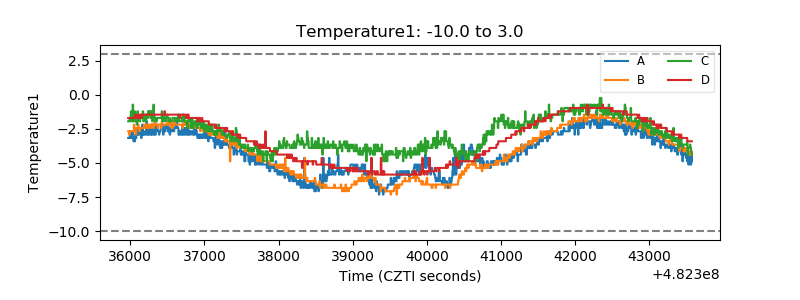

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

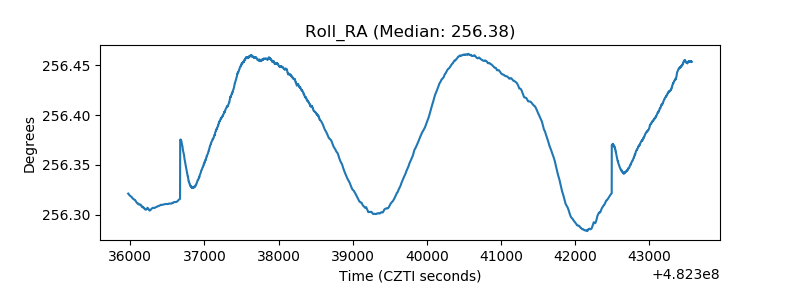

| _Roll_RA |  |
| Veto Counter |  |
