| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51631cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51631cztM0_level2_quad_clean.evt |
| Size (bytes) | 724,705,920 | 112,164,480 |
| Size | 691.1 MB | 107.0 MB |
| Events in quadrant A | 7,713,941 | 683,725 |
| Events in quadrant B | 5,406,502 | 801,419 |
| Events in quadrant C | 7,148,437 | 684,057 |
| Events in quadrant D | 5,928,880 | 662,413 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28535 | 0 |
| B | 0 | 21587 | 0 |
| C | 0 | 26961 | 0 |
| D | 0 | 23324 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8121 | 1154 | 14.210073% |
| B | 8121 | 390 | 4.802364% |
| C | 8122 | 673 | 8.286136% |
| D | 8121 | 418 | 5.147149% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

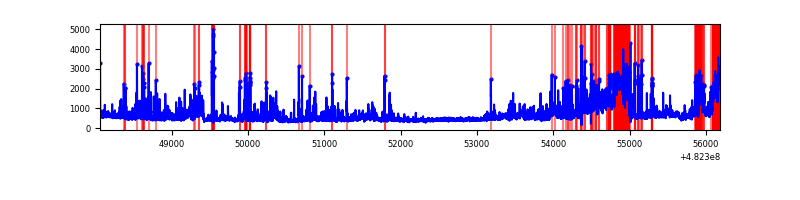

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8121 | 8121 | 732 | 732 | 9.01% | 9.01% |  |
| B | 8121 | 8121 | 216 | 216 | 2.66% | 2.66% |  |
| C | 8122 | 8122 | 545 | 545 | 6.71% | 6.71% |  |
| D | 8121 | 8121 | 386 | 386 | 4.75% | 4.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 2428535 | 11846.37 | 838 | 818 | 204.9 |
| A | 12 | 250 | 1173714 | 5723.3 | 838 | 818 | 204.9 |
| A | 15 | 174 | 221320 | 1075.97 | 838 | 818 | 204.9 |
| B | 8 | 128 | 471203 | 2508.53 | 869 | 839 | 187.5 |
| B | 10 | 44 | 300789 | 1599.68 | 869 | 839 | 187.5 |
| B | 7 | 252 | 175890 | 933.58 | 869 | 839 | 187.5 |
| C | 5 | 250 | 2333348 | 10172.81 | 840 | 833 | 229.3 |
| C | 15 | 148 | 541560 | 2358.28 | 840 | 833 | 229.3 |
| C | 15 | 189 | 327164 | 1423.23 | 840 | 833 | 229.3 |
| D | 10 | 172 | 581751 | 2489.09 | 842 | 811 | 233.4 |
| D | 3 | 12 | 506647 | 2167.3 | 842 | 811 | 233.4 |
| D | 7 | 60 | 316027 | 1350.57 | 842 | 811 | 233.4 |

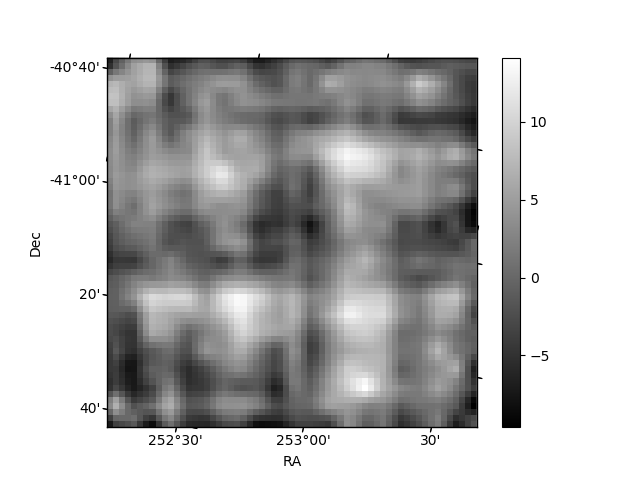

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

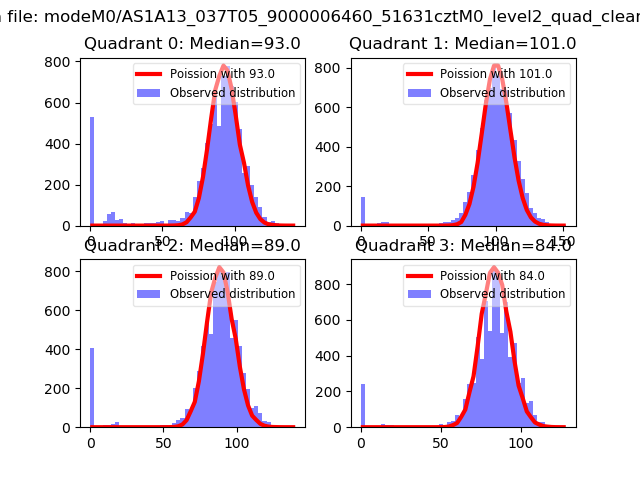

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

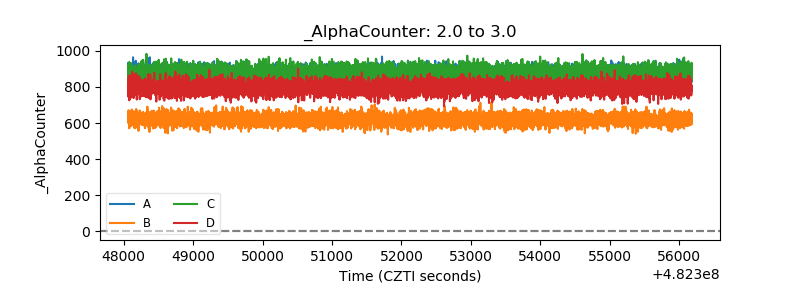

| Alpha Counter |  |

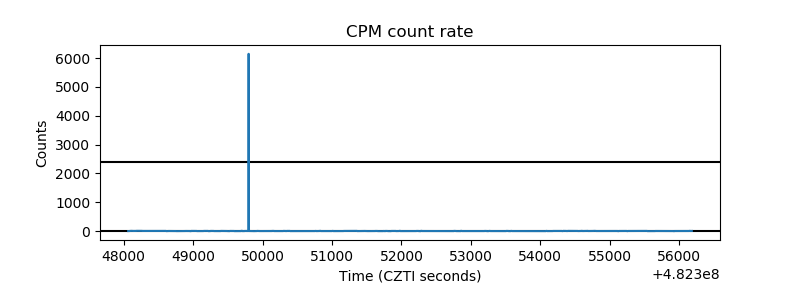

| _CPM_Rate |  |

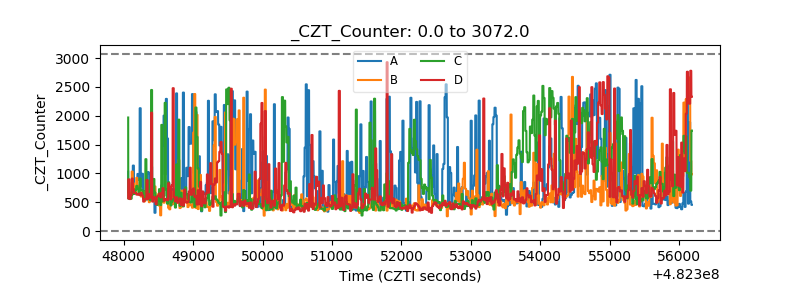

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

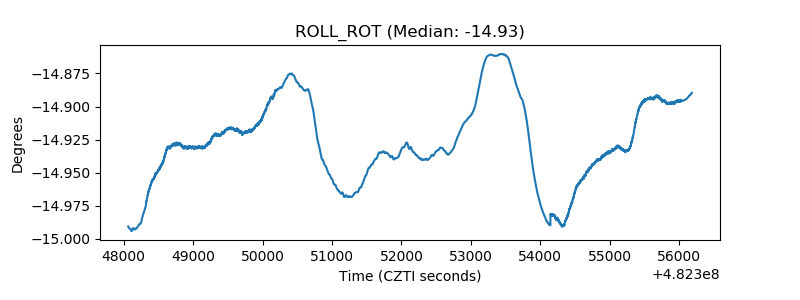

| _ROLL_ROT |  |

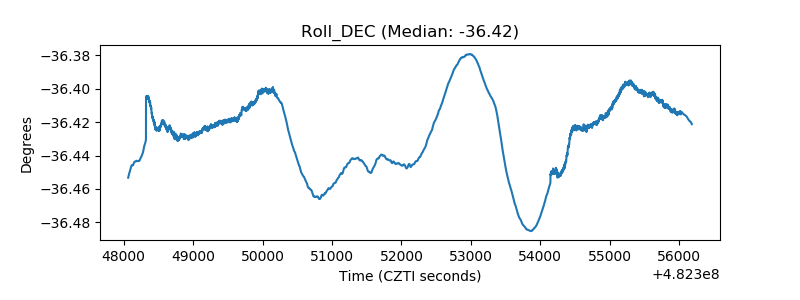

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
