| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_031T01_9000006462_51708cztM0_level2.fits | modeM0/AS1A13_031T01_9000006462_51708cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,942,400 | 101,640,960 |
| Size | 480.6 MB | 96.9 MB |
| Events in quadrant A | 5,508,104 | 650,414 |
| Events in quadrant B | 4,500,204 | 698,062 |
| Events in quadrant C | 4,324,030 | 636,793 |
| Events in quadrant D | 3,775,070 | 601,775 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21347 | 3 |
| B | 0 | 18339 | 2 |
| C | 0 | 17846 | 2 |
| D | 0 | 16182 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7046 | 214 | 3.037184% |
| B | 7046 | 303 | 4.300312% |
| C | 7047 | 222 | 3.150277% |
| D | 7047 | 82 | 1.163616% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8591 | 7048 | 116 | 116 | 1.35% | 1.65% |  |
| B | 8591 | 7048 | 144 | 144 | 1.68% | 2.04% |  |
| C | 8592 | 7049 | 175 | 175 | 2.04% | 2.48% |  |
| D | 8592 | 7049 | 75 | 75 | 0.87% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 914222 | 5029.28 | 739 | 723 | 181.6 |
| A | 3 | 78 | 487391 | 2679.35 | 739 | 723 | 181.6 |
| A | 3 | 14 | 330132 | 1813.56 | 739 | 723 | 181.6 |
| B | 8 | 128 | 708864 | 4470.68 | 738 | 714 | 158.4 |
| B | 1 | 223 | 246767 | 1553.38 | 738 | 714 | 158.4 |
| B | 0 | 213 | 187063 | 1176.46 | 738 | 714 | 158.4 |
| C | 12 | 254 | 377577 | 1891.01 | 728 | 725 | 199.3 |
| C | 13 | 3 | 312026 | 1562.08 | 728 | 725 | 199.3 |
| C | 0 | 192 | 299588 | 1499.67 | 728 | 725 | 199.3 |
| D | 3 | 12 | 324016 | 1607.94 | 722 | 698 | 201.1 |
| D | 5 | 157 | 164473 | 814.49 | 722 | 698 | 201.1 |
| D | 2 | 120 | 87557 | 431.97 | 722 | 698 | 201.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

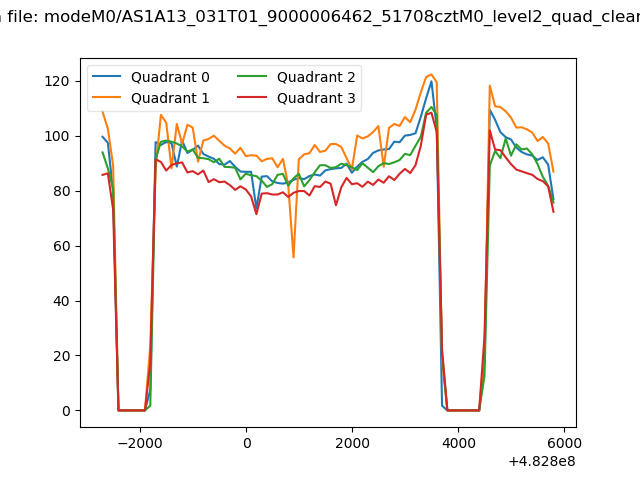

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

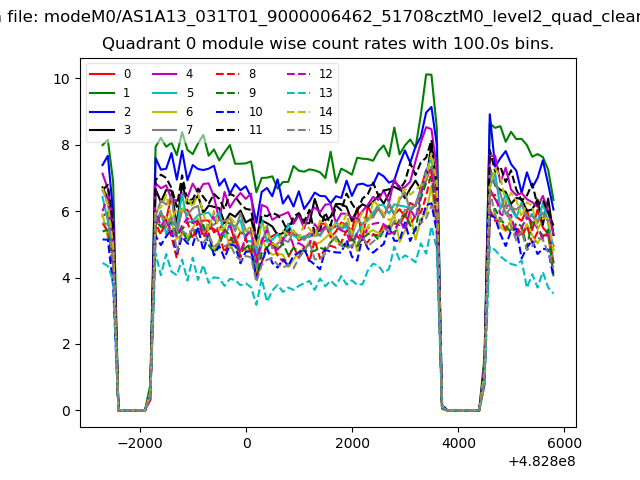

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

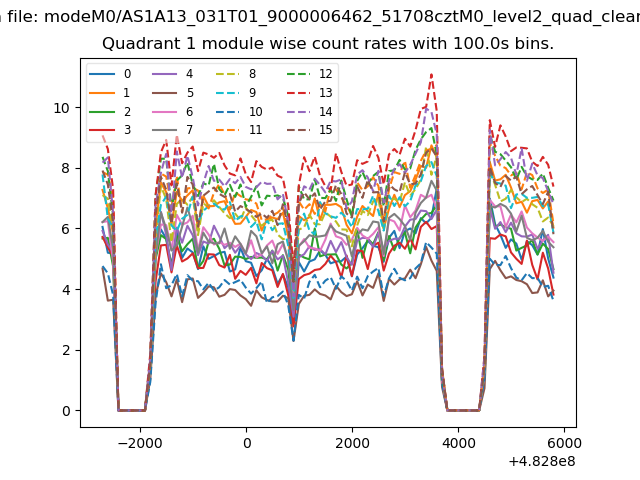

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

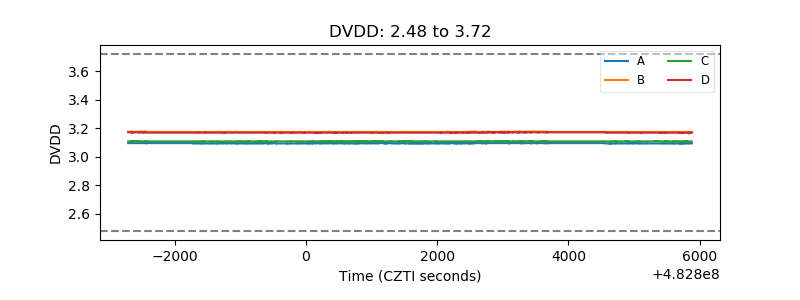

| D_VDD |  |
| Temperature 1 |  |

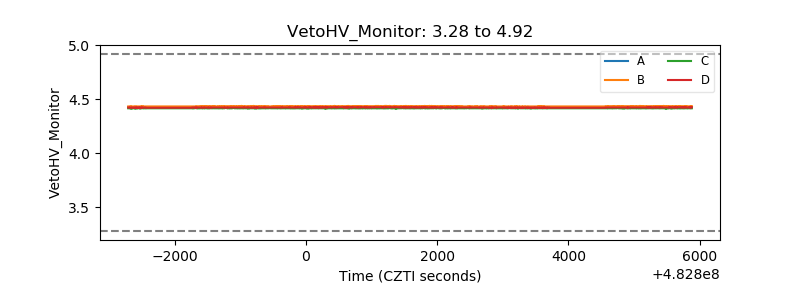

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

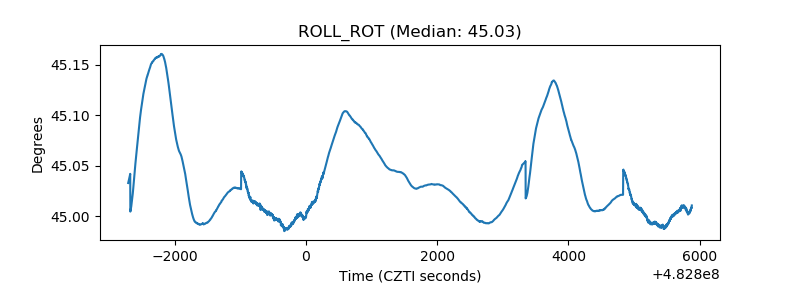

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
