| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_031T01_9000006462_51725cztM0_level2.fits | modeM0/AS1A13_031T01_9000006462_51725cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,383,680 | 95,008,320 |
| Size | 411.4 MB | 90.6 MB |
| Events in quadrant A | 3,828,262 | 609,020 |
| Events in quadrant B | 3,688,884 | 657,711 |
| Events in quadrant C | 4,835,219 | 585,026 |
| Events in quadrant D | 3,106,433 | 567,804 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15986 | 2 |
| B | 0 | 15709 | 2 |
| C | 0 | 19040 | 2 |
| D | 0 | 14336 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6553 | 184 | 2.807874% |
| B | 6553 | 206 | 3.143598% |
| C | 6553 | 437 | 6.668701% |
| D | 6553 | 67 | 1.022432% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7603 | 6554 | 151 | 151 | 1.99% | 2.30% |  |
| B | 7603 | 6554 | 126 | 126 | 1.66% | 1.92% |  |
| C | 7603 | 6554 | 388 | 388 | 5.10% | 5.92% |  |
| D | 7603 | 6554 | 54 | 54 | 0.71% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 677298 | 4074.08 | 679 | 665 | 166.1 |
| A | 5 | 240 | 88271 | 527.48 | 679 | 665 | 166.1 |
| A | 4 | 3 | 63467 | 378.14 | 679 | 665 | 166.1 |
| B | 1 | 223 | 403871 | 2797.62 | 677 | 654 | 144.1 |
| B | 6 | 51 | 251246 | 1738.67 | 677 | 654 | 144.1 |
| B | 0 | 213 | 71536 | 491.8 | 677 | 654 | 144.1 |
| C | 0 | 192 | 1041013 | 5794.14 | 658 | 652 | 179.6 |
| C | 9 | 38 | 573131 | 3188.34 | 658 | 652 | 179.6 |
| C | 13 | 3 | 278817 | 1549.2 | 658 | 652 | 179.6 |
| D | 3 | 12 | 133432 | 714.44 | 662 | 638 | 185.9 |
| D | 8 | 176 | 81474 | 434.9 | 662 | 638 | 185.9 |
| D | 2 | 249 | 59415 | 316.22 | 662 | 638 | 185.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

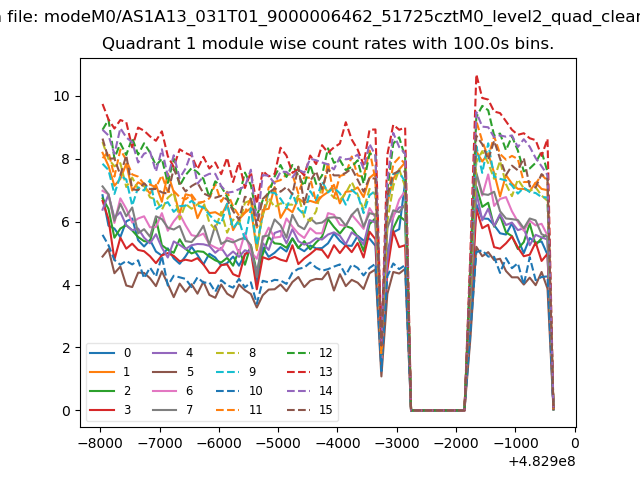

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

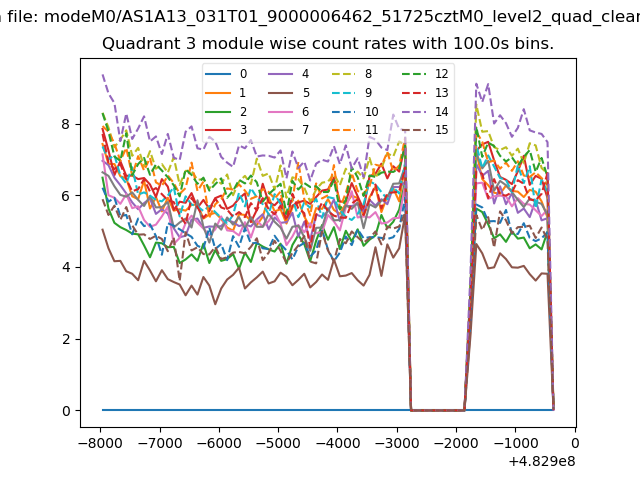

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

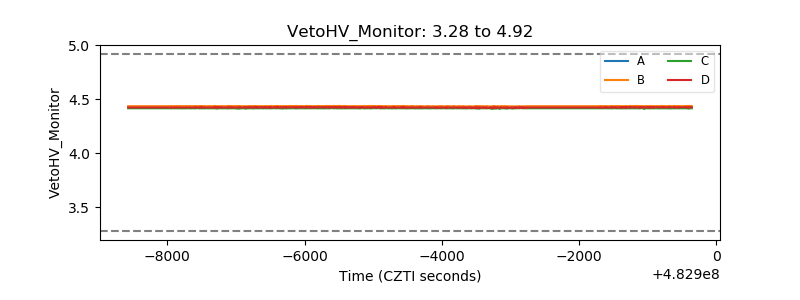

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

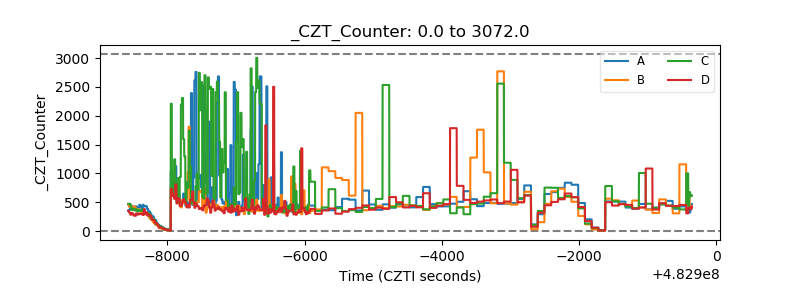

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

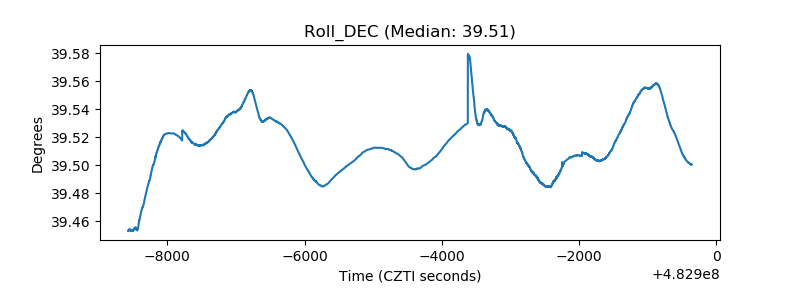

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
