| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_090T01_9000006464_51795cztM0_level2.fits | modeM0/AS1A13_090T01_9000006464_51795cztM0_level2_quad_clean.evt |
| Size (bytes) | 718,102,080 | 91,074,240 |
| Size | 684.8 MB | 86.9 MB |
| Events in quadrant A | 8,456,518 | 562,538 |
| Events in quadrant B | 4,331,882 | 675,026 |
| Events in quadrant C | 4,653,477 | 586,145 |
| Events in quadrant D | 8,610,611 | 456,451 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29994 | 2 |
| B | 0 | 17653 | 2 |
| C | 0 | 18799 | 2 |
| D | 0 | 30340 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6843 | 993 | 14.511179% |
| B | 6843 | 257 | 3.755663% |
| C | 6844 | 428 | 6.253653% |
| D | 6844 | 1671 | 24.415546% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7663 | 6844 | 891 | 891 | 11.63% | 13.02% |  |
| B | 7663 | 6843 | 124 | 124 | 1.62% | 1.81% |  |
| C | 7664 | 6845 | 399 | 399 | 5.21% | 5.83% |  |
| D | 7664 | 6845 | 1603 | 1603 | 20.92% | 23.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 2053054 | 11958.96 | 686 | 668 | 171.6 |
| A | 12 | 3 | 1736888 | 10116.71 | 686 | 668 | 171.6 |
| A | 10 | 253 | 414953 | 2413.98 | 686 | 668 | 171.6 |
| B | 10 | 128 | 389726 | 2526.36 | 718 | 694 | 154.0 |
| B | 0 | 171 | 247324 | 1601.61 | 718 | 694 | 154.0 |
| B | 7 | 252 | 238326 | 1543.18 | 718 | 694 | 154.0 |
| C | 15 | 218 | 876815 | 4605.54 | 692 | 684 | 190.2 |
| C | 13 | 3 | 525303 | 2757.75 | 692 | 684 | 190.2 |
| C | 15 | 231 | 152001 | 795.42 | 692 | 684 | 190.2 |
| D | 11 | 129 | 4367996 | 24842.95 | 627 | 604 | 175.8 |
| D | 12 | 6 | 428993 | 2436.8 | 627 | 604 | 175.8 |
| D | 8 | 176 | 331408 | 1881.71 | 627 | 604 | 175.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

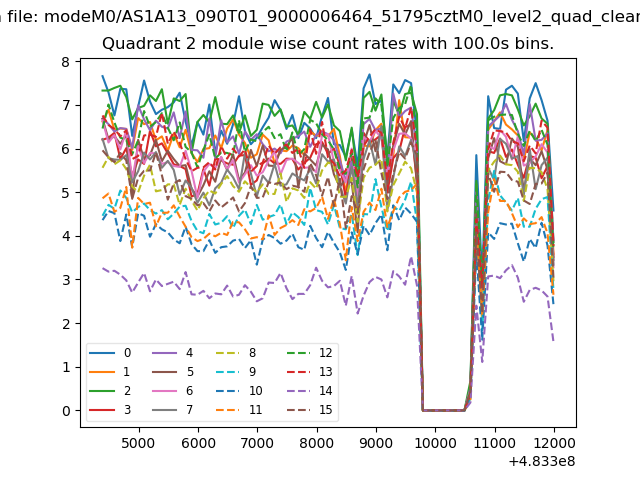

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
