| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T05_9000006466_51893cztM0_level2.fits | modeM0/AS1C09_011T05_9000006466_51893cztM0_level2_quad_clean.evt |
| Size (bytes) | 894,355,200 | 86,014,080 |
| Size | 852.9 MB | 82.0 MB |
| Events in quadrant A | 5,550,543 | 641,901 |
| Events in quadrant B | 8,463,056 | 575,528 |
| Events in quadrant C | 4,184,791 | 636,557 |
| Events in quadrant D | 14,346,844 | 245,384 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21462 | 0 |
| B | 0 | 30124 | 0 |
| C | 0 | 17437 | 0 |
| D | 0 | 47615 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7246 | 333 | 4.595639% |
| B | 7246 | 1881 | 25.959150% |
| C | 7247 | 121 | 1.669656% |
| D | 7247 | 4543 | 62.688009% |

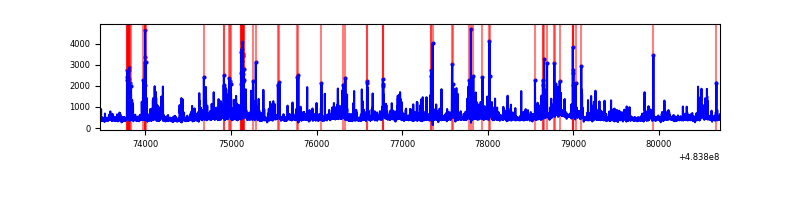

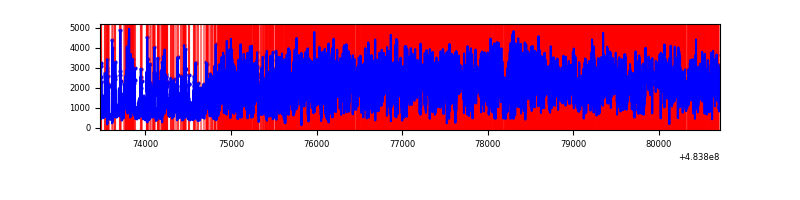

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7246 | 7246 | 233 | 233 | 3.22% | 3.22% |  |
| B | 7246 | 7246 | 1262 | 1262 | 17.42% | 17.42% |  |
| C | 7247 | 7247 | 83 | 83 | 1.15% | 1.15% |  |
| D | 7247 | 7247 | 3737 | 3737 | 51.57% | 51.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 840528 | 4528.78 | 749 | 730 | 185.4 |
| A | 15 | 174 | 378893 | 2039.32 | 749 | 730 | 185.4 |
| A | 4 | 207 | 366462 | 1972.28 | 749 | 730 | 185.4 |
| B | 4 | 170 | 2722630 | 18567.82 | 683 | 660 | 146.6 |
| B | 12 | 32 | 1723276 | 11750.76 | 683 | 660 | 146.6 |
| B | 4 | 171 | 322882 | 2198.03 | 683 | 660 | 146.6 |
| C | 13 | 3 | 470606 | 2338.35 | 732 | 727 | 200.9 |
| C | 15 | 224 | 98849 | 488.3 | 732 | 727 | 200.9 |
| C | 15 | 178 | 84640 | 417.59 | 732 | 727 | 200.9 |
| D | 11 | 129 | 5140498 | 37883.18 | 481 | 462 | 135.7 |
| D | 6 | 206 | 2106606 | 15522.74 | 481 | 462 | 135.7 |
| D | 6 | 42 | 1422260 | 10478.96 | 481 | 462 | 135.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

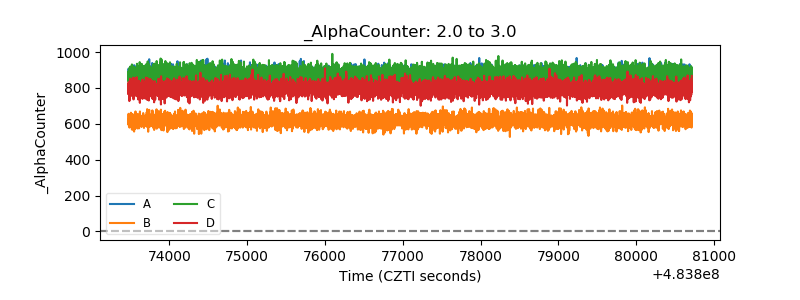

| Alpha Counter |  |

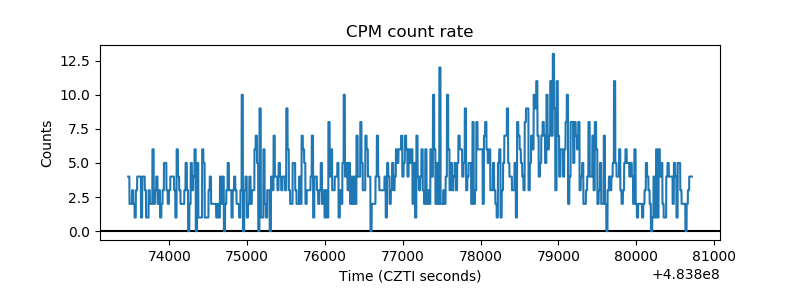

| _CPM_Rate |  |

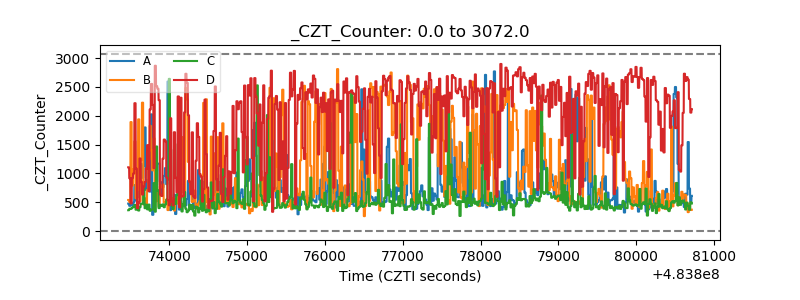

| CZT Counter |  |

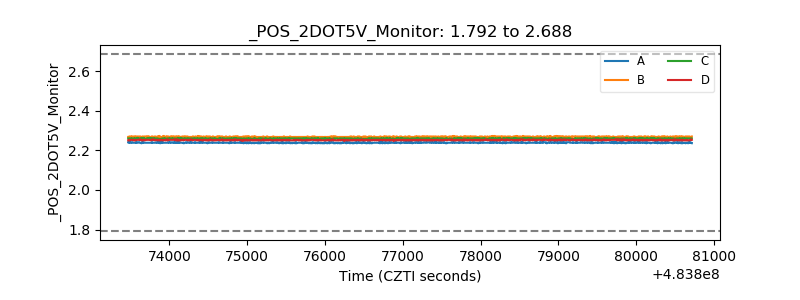

| +2.5 Volts monitor |  |

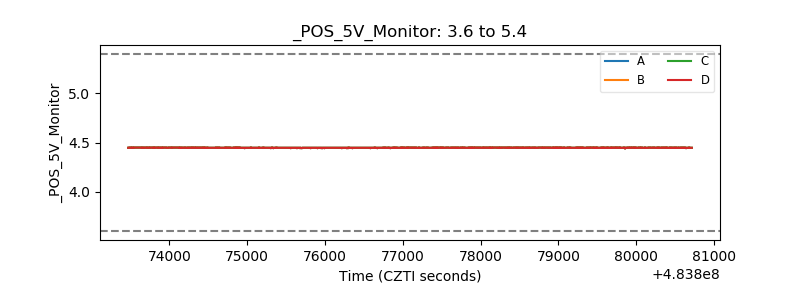

| +5 Volts monitor |  |

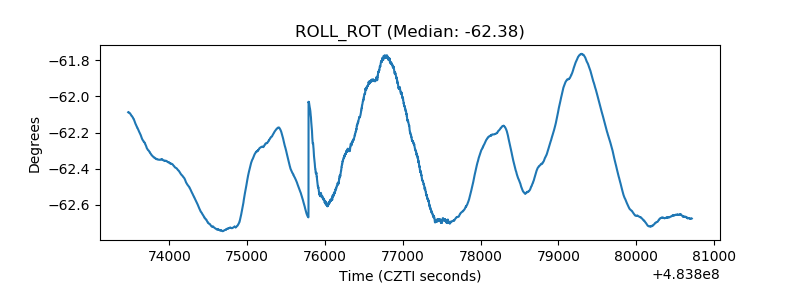

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
