| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006468_51950cztM0_level2.fits | modeM0/AS1C09_011T06_9000006468_51950cztM0_level2_quad_clean.evt |
| Size (bytes) | 878,356,800 | 83,194,560 |
| Size | 837.7 MB | 79.3 MB |
| Events in quadrant A | 7,604,810 | 542,666 |
| Events in quadrant B | 3,601,082 | 678,297 |
| Events in quadrant C | 10,855,132 | 396,471 |
| Events in quadrant D | 9,914,137 | 415,499 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27417 | 0 |
| B | 0 | 15685 | 0 |
| C | 0 | 37146 | 1 |
| D | 0 | 34260 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6965 | 1232 | 17.688442% |
| B | 6966 | 115 | 1.650876% |
| C | 6965 | 2855 | 40.990668% |
| D | 6965 | 2222 | 31.902369% |

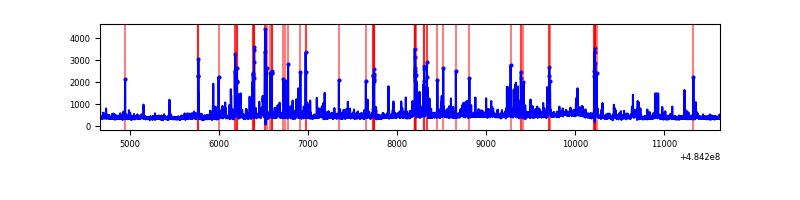

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6965 | 6965 | 1077 | 1077 | 15.46% | 15.46% |  |
| B | 6966 | 6966 | 73 | 73 | 1.05% | 1.05% |  |
| C | 6965 | 6965 | 2374 | 2374 | 34.08% | 34.08% |  |
| D | 6965 | 6965 | 2015 | 2015 | 28.93% | 28.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 2637256 | 16249.97 | 656 | 642 | 162.3 |
| A | 4 | 159 | 706761 | 4351.95 | 656 | 642 | 162.3 |
| A | 15 | 239 | 515039 | 3170.33 | 656 | 642 | 162.3 |
| B | 4 | 201 | 91908 | 607.34 | 700 | 675 | 150.2 |
| B | 0 | 216 | 64992 | 428.16 | 700 | 675 | 150.2 |
| B | 10 | 44 | 63204 | 416.26 | 700 | 675 | 150.2 |
| C | 15 | 224 | 6512582 | 42768.39 | 548 | 542 | 152.3 |
| C | 13 | 3 | 789734 | 5183.09 | 548 | 542 | 152.3 |
| C | 15 | 147 | 643181 | 4220.59 | 548 | 542 | 152.3 |
| D | 12 | 16 | 5225109 | 31824.99 | 573 | 546 | 164.2 |
| D | 12 | 17 | 812317 | 4944.84 | 573 | 546 | 164.2 |
| D | 15 | 58 | 351761 | 2139.4 | 573 | 546 | 164.2 |

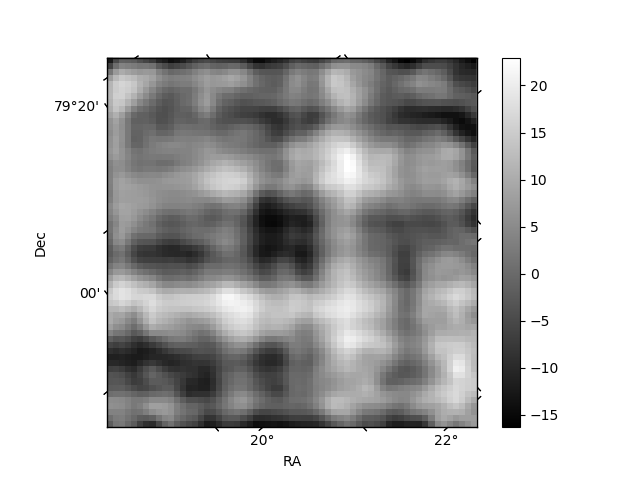

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

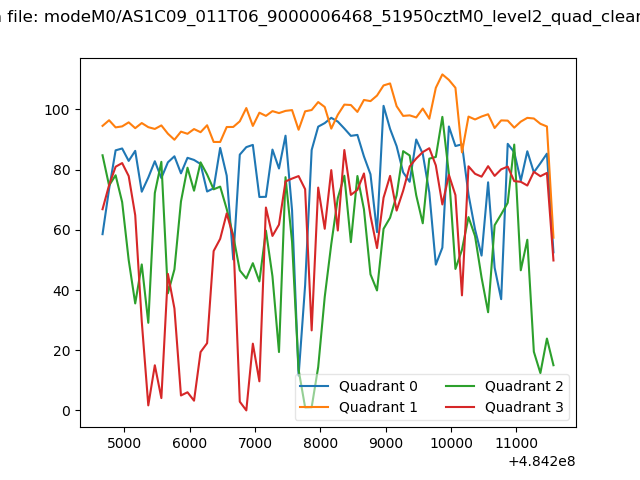

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

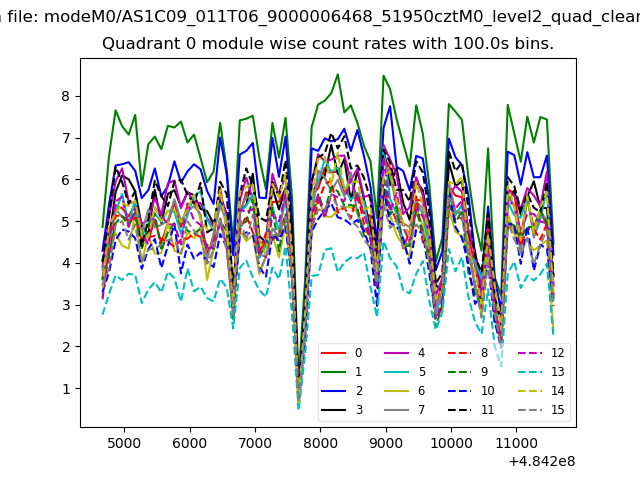

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

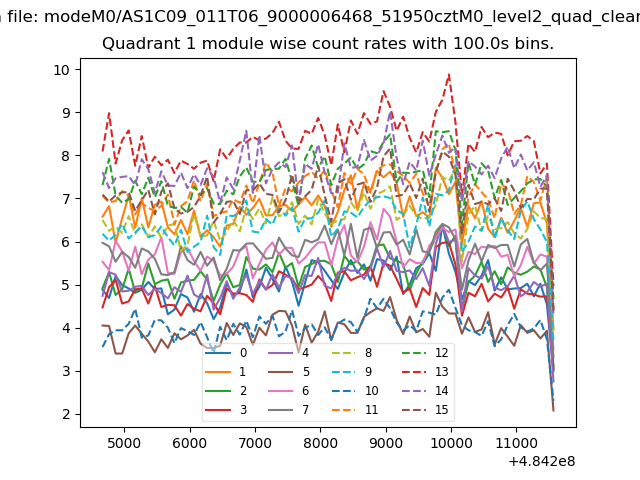

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

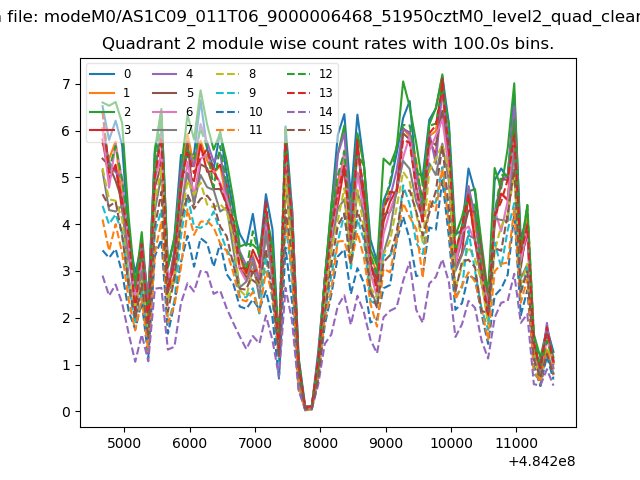

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

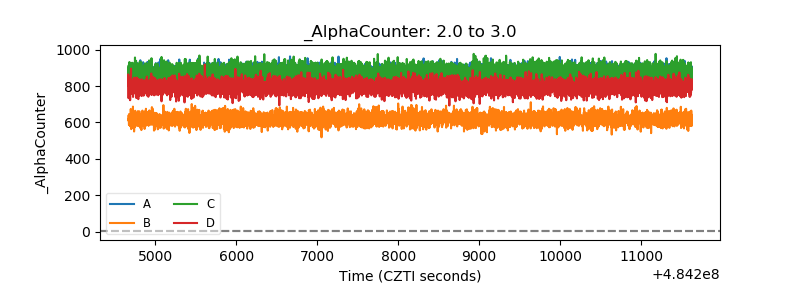

| Alpha Counter |  |

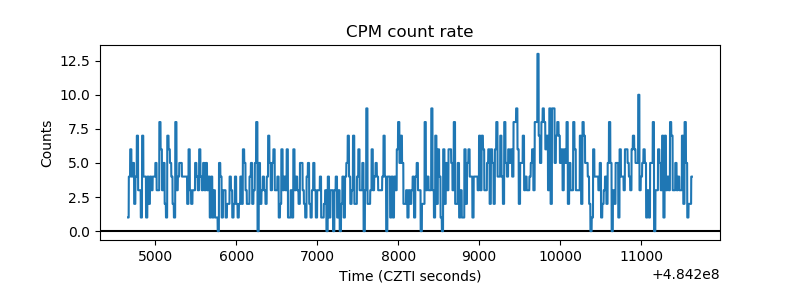

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
