| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006468_51980cztM0_level2.fits | modeM0/AS1C09_011T06_9000006468_51980cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,199,563,200 | 73,785,600 |
| Size | 1.1 GB | 70.4 MB |
| Events in quadrant A | 5,793,972 | 630,966 |
| Events in quadrant B | 6,906,189 | 631,230 |
| Events in quadrant C | 14,643,705 | 269,990 |
| Events in quadrant D | 16,490,083 | 187,013 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22315 | 0 |
| B | 0 | 25763 | 0 |
| C | 0 | 48571 | 0 |
| D | 0 | 53979 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7390 | 585 | 7.916103% |
| B | 7391 | 1279 | 17.304830% |
| C | 7391 | 4717 | 63.820863% |
| D | 7391 | 5361 | 72.534163% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7390 | 7390 | 487 | 487 | 6.59% | 6.59% |  |
| B | 7391 | 7391 | 863 | 863 | 11.68% | 11.68% |  |
| C | 7391 | 7391 | 4317 | 4317 | 58.41% | 58.41% |  |
| D | 7390 | 7390 | 5266 | 5266 | 71.26% | 71.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1879906 | 10230.68 | 736 | 719 | 183.7 |
| A | 5 | 241 | 179174 | 971.55 | 736 | 719 | 183.7 |
| A | 4 | 159 | 169713 | 920.04 | 736 | 719 | 183.7 |
| B | 12 | 32 | 2789073 | 18172.16 | 710 | 686 | 153.4 |
| B | 8 | 128 | 328479 | 2136.26 | 710 | 686 | 153.4 |
| B | 4 | 206 | 290242 | 1887.06 | 710 | 686 | 153.4 |
| C | 12 | 252 | 8515610 | 63925.91 | 476 | 473 | 133.2 |
| C | 15 | 224 | 3628421 | 27236.19 | 476 | 473 | 133.2 |
| C | 4 | 5 | 166372 | 1245.46 | 476 | 473 | 133.2 |
| D | 2 | 172 | 8229030 | 64164.63 | 448 | 427 | 128.2 |
| D | 7 | 126 | 1747244 | 13621.25 | 448 | 427 | 128.2 |
| D | 7 | 60 | 1282795 | 9999.59 | 448 | 427 | 128.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

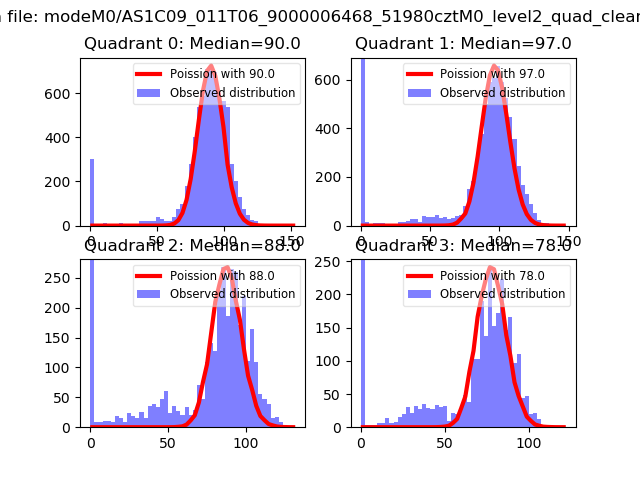

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

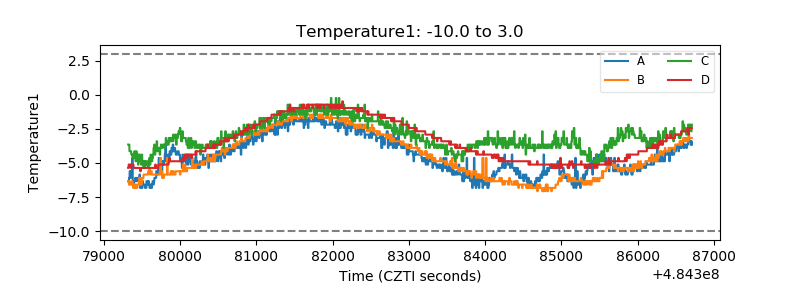

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

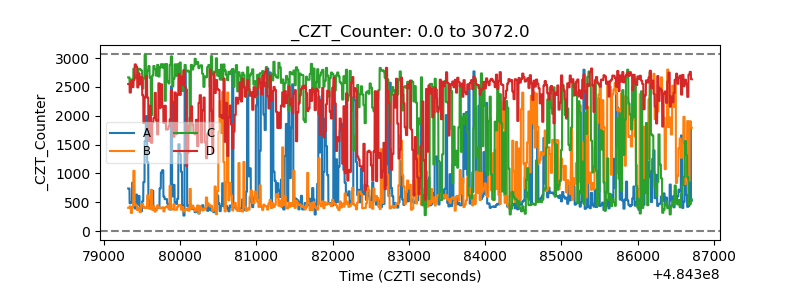

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

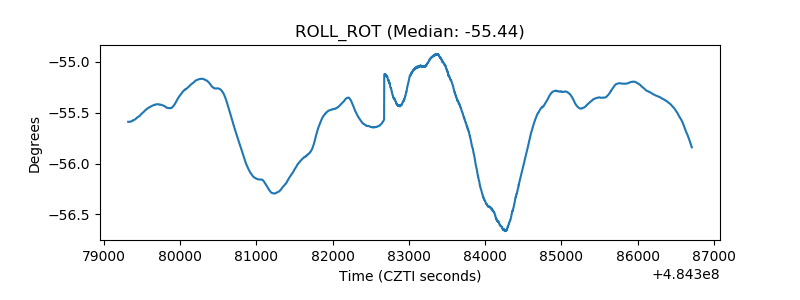

| _ROLL_ROT |  |

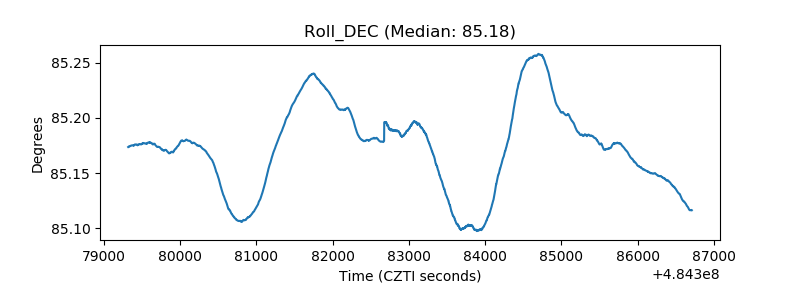

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
