| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006470_52120cztM0_level2.fits | modeM0/AS1C09_011T07_9000006470_52120cztM0_level2_quad_clean.evt |
| Size (bytes) | 874,932,480 | 64,800,000 |
| Size | 834.4 MB | 61.8 MB |
| Events in quadrant A | 2,926,594 | 563,715 |
| Events in quadrant B | 5,248,745 | 590,700 |
| Events in quadrant C | 8,237,094 | 400,736 |
| Events in quadrant D | 15,525,916 | 841 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12550 | 1 |
| B | 0 | 19739 | 1 |
| C | 0 | 28476 | 1 |
| D | 0 | 49941 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5799 | 99 | 1.707191% |
| B | 5800 | 304 | 5.241379% |
| C | 5800 | 1936 | 33.379310% |
| D | 5799 | 5793 | 99.896534% |

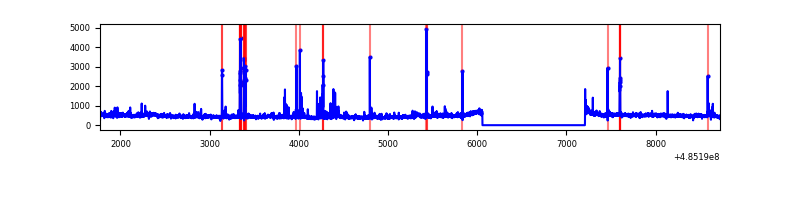

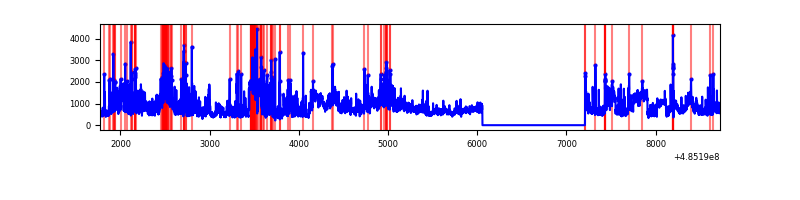

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6949 | 5800 | 35 | 35 | 0.50% | 0.60% |  |
| B | 6950 | 5801 | 141 | 141 | 2.03% | 2.43% |  |
| C | 6950 | 5801 | 1460 | 1460 | 21.01% | 25.17% |  |
| D | 6948 | 5798 | 5647 | 5647 | 81.28% | 97.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 203470 | 1318.87 | 614 | 599 | 153.8 |
| A | 14 | 254 | 55182 | 354.84 | 614 | 599 | 153.8 |
| A | 7 | 206 | 36237 | 231.68 | 614 | 599 | 153.8 |
| B | 5 | 172 | 1576622 | 12357.13 | 604 | 583 | 127.5 |
| B | 4 | 171 | 536895 | 4205.02 | 604 | 583 | 127.5 |
| B | 0 | 216 | 121191 | 945.64 | 604 | 583 | 127.5 |
| C | 15 | 224 | 4279355 | 30164.63 | 517 | 513 | 141.8 |
| C | 2 | 239 | 815133 | 5742.84 | 517 | 513 | 141.8 |
| C | 13 | 3 | 650344 | 4581.12 | 517 | 513 | 141.8 |
| D | 15 | 94 | 11075624 | 290449.66 | 127 | 120 | 38.1 |
| D | 6 | 42 | 3264604 | 85609.49 | 127 | 120 | 38.1 |
| D | 8 | 176 | 200175 | 5246.34 | 127 | 120 | 38.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

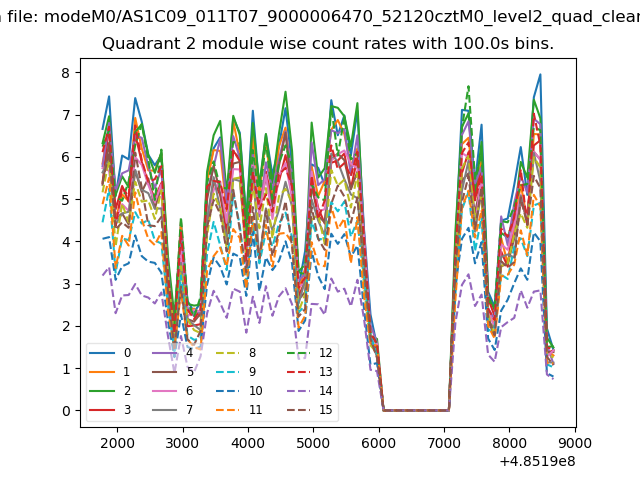

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

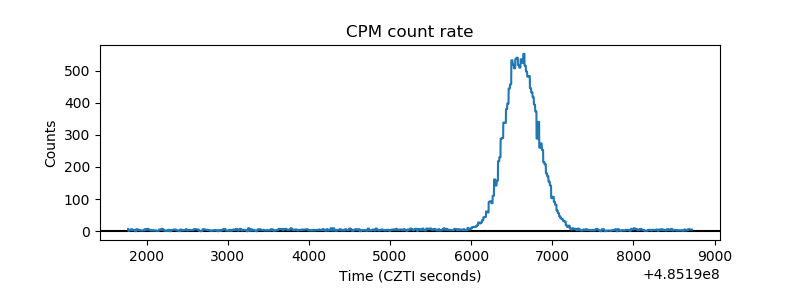

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

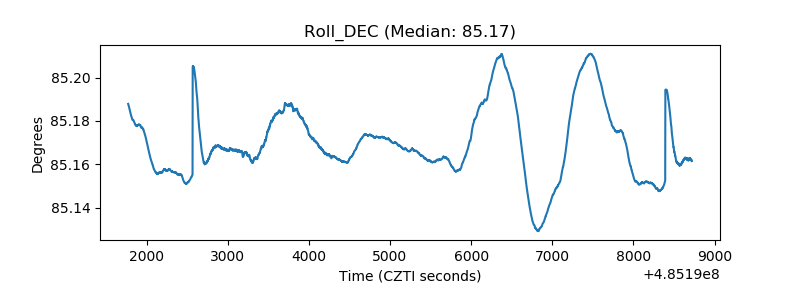

| _Roll_DEC |  |

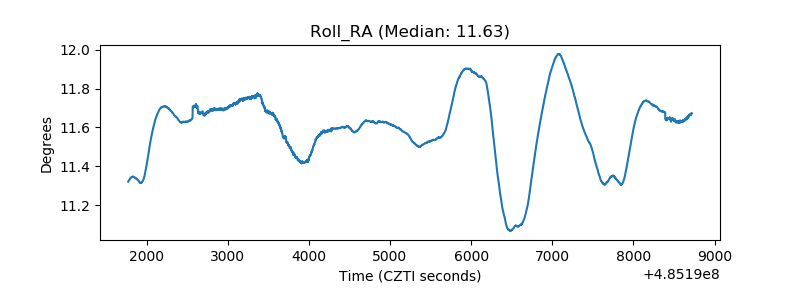

| _Roll_RA |  |

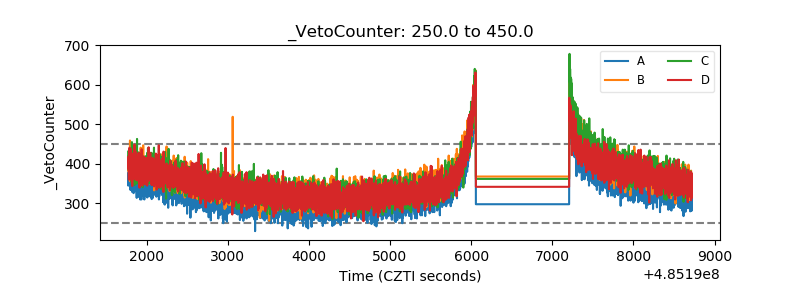

| Veto Counter |  |
