| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006470_52129cztM0_level2.fits | modeM0/AS1C09_011T07_9000006470_52129cztM0_level2_quad_clean.evt |
| Size (bytes) | 868,400,640 | 78,969,600 |
| Size | 828.2 MB | 75.3 MB |
| Events in quadrant A | 3,508,181 | 623,764 |
| Events in quadrant B | 4,477,258 | 631,641 |
| Events in quadrant C | 8,448,855 | 498,589 |
| Events in quadrant D | 15,193,159 | 170,535 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14923 | 1 |
| B | 0 | 17845 | 4 |
| C | 0 | 29741 | 6 |
| D | 0 | 49720 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6691 | 91 | 1.360036% |
| B | 6690 | 433 | 6.472347% |
| C | 6691 | 1491 | 22.283665% |
| D | 6691 | 4983 | 74.473173% |

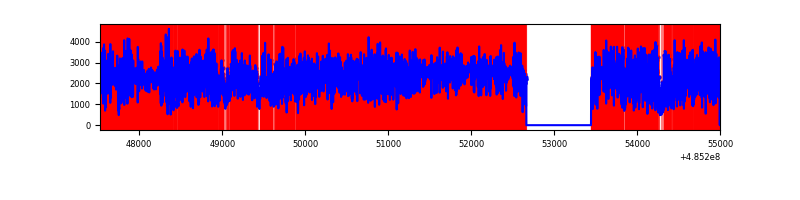

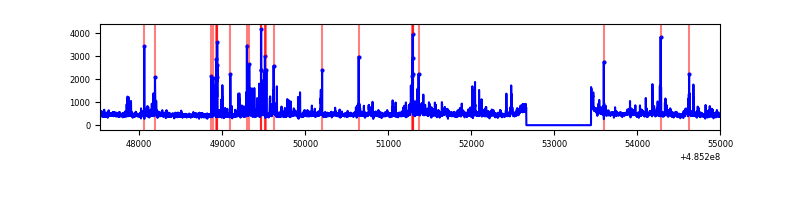

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7471 | 6692 | 28 | 28 | 0.37% | 0.42% |  |
| B | 7472 | 6692 | 281 | 281 | 3.76% | 4.20% |  |
| C | 7472 | 6693 | 1197 | 1197 | 16.02% | 17.88% |  |
| D | 7472 | 6691 | 4691 | 4691 | 62.78% | 70.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 154722 | 884.91 | 705 | 687 | 174.1 |
| A | 5 | 240 | 129116 | 737.8 | 705 | 687 | 174.1 |
| A | 7 | 206 | 70005 | 398.22 | 705 | 687 | 174.1 |
| B | 5 | 172 | 721099 | 4969.97 | 678 | 654 | 145.0 |
| B | 5 | 185 | 327994 | 2258.14 | 678 | 654 | 145.0 |
| B | 12 | 32 | 227800 | 1566.96 | 678 | 654 | 145.0 |
| C | 15 | 224 | 3773267 | 22067.42 | 621 | 617 | 171.0 |
| C | 4 | 5 | 540702 | 3159.13 | 621 | 617 | 171.0 |
| C | 0 | 161 | 496690 | 2901.69 | 621 | 617 | 171.0 |
| D | 6 | 42 | 6132920 | 49302.31 | 432 | 412 | 124.4 |
| D | 15 | 94 | 5903905 | 47461.15 | 432 | 412 | 124.4 |
| D | 5 | 206 | 296515 | 2380.52 | 432 | 412 | 124.4 |

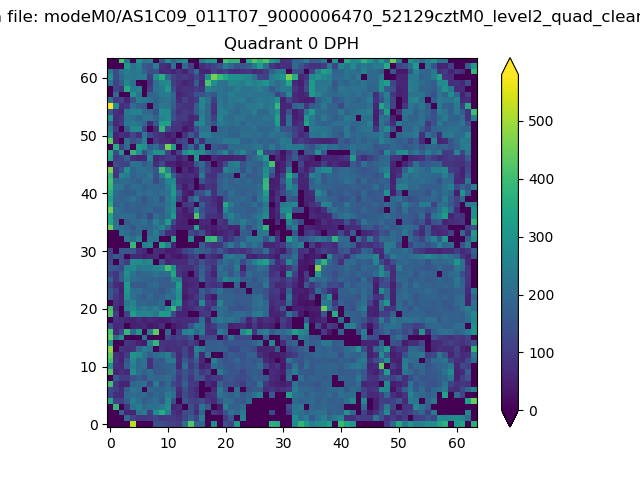

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

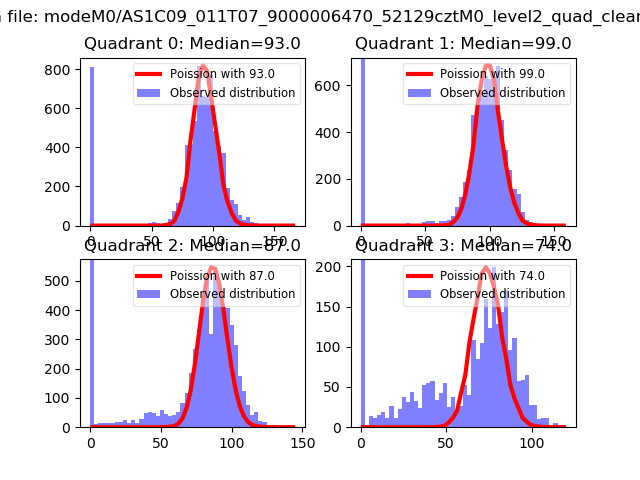

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

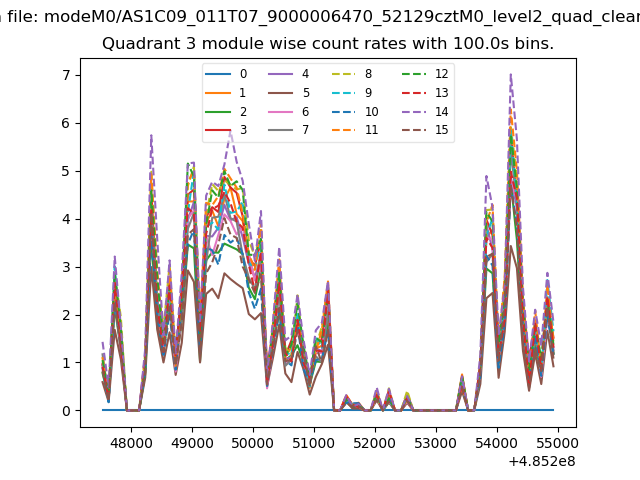

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

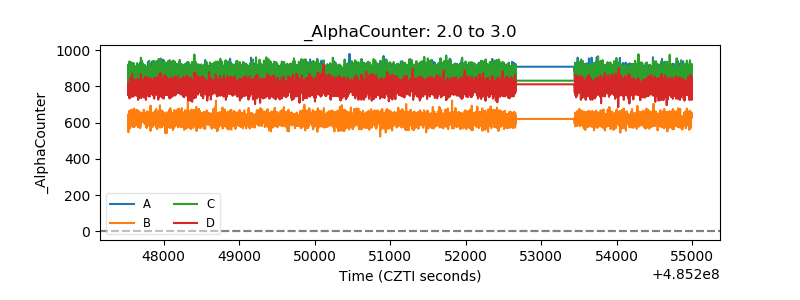

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

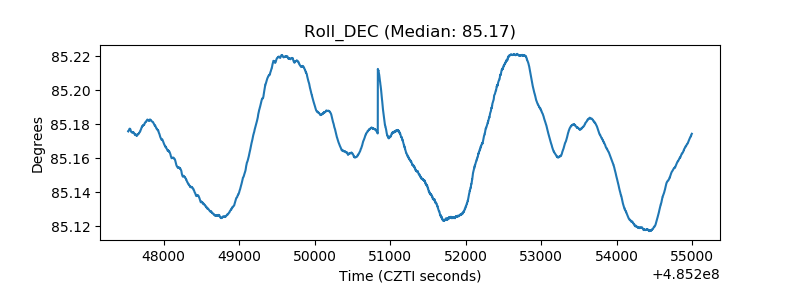

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
