| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006470_52132cztM0_level2.fits | modeM0/AS1C09_011T07_9000006470_52132cztM0_level2_quad_clean.evt |
| Size (bytes) | 947,917,440 | 73,160,640 |
| Size | 904.0 MB | 69.8 MB |
| Events in quadrant A | 4,352,058 | 621,316 |
| Events in quadrant B | 5,107,656 | 640,320 |
| Events in quadrant C | 8,819,829 | 467,780 |
| Events in quadrant D | 16,304,867 | 30,890 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17166 | 1 |
| B | 0 | 19679 | 1 |
| C | 0 | 30723 | 1 |
| D | 0 | 52893 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6518 | 242 | 3.712795% |
| B | 6518 | 472 | 7.241485% |
| C | 6518 | 1843 | 28.275545% |
| D | 6519 | 6237 | 95.674183% |

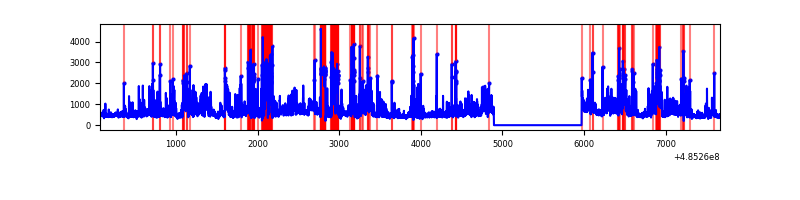

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7593 | 6519 | 198 | 198 | 2.61% | 3.04% |  |
| B | 7593 | 6519 | 313 | 313 | 4.12% | 4.80% |  |
| C | 7593 | 6519 | 1565 | 1565 | 20.61% | 24.01% |  |
| D | 7593 | 6518 | 5698 | 5698 | 75.04% | 87.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 95 | 438322 | 2526.11 | 693 | 677 | 173.2 |
| A | 7 | 206 | 174429 | 1002.91 | 693 | 677 | 173.2 |
| A | 11 | 3 | 168283 | 967.43 | 693 | 677 | 173.2 |
| B | 5 | 172 | 1171207 | 8155.41 | 669 | 646 | 143.5 |
| B | 4 | 81 | 382620 | 2661.25 | 669 | 646 | 143.5 |
| B | 0 | 216 | 301800 | 2098.17 | 669 | 646 | 143.5 |
| C | 15 | 224 | 4675789 | 28614.09 | 590 | 584 | 163.4 |
| C | 15 | 193 | 573354 | 3505.58 | 590 | 584 | 163.4 |
| C | 4 | 5 | 470525 | 2876.22 | 590 | 584 | 163.4 |
| D | 15 | 94 | 6851386 | 85281.85 | 277 | 265 | 80.3 |
| D | 6 | 42 | 5570465 | 69337.11 | 277 | 265 | 80.3 |
| D | 12 | 3 | 1806829 | 22487.87 | 277 | 265 | 80.3 |

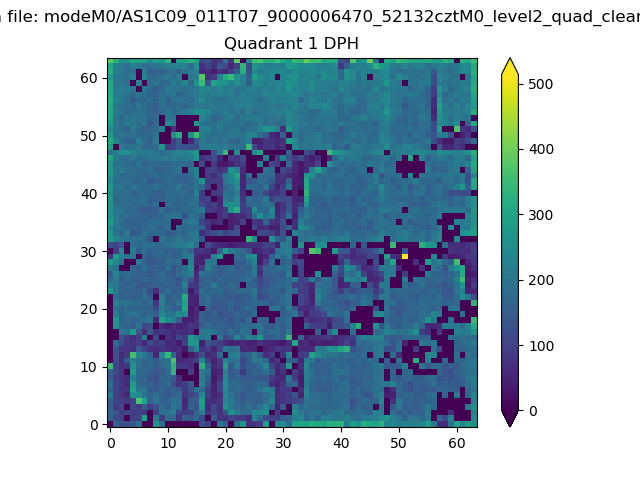

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

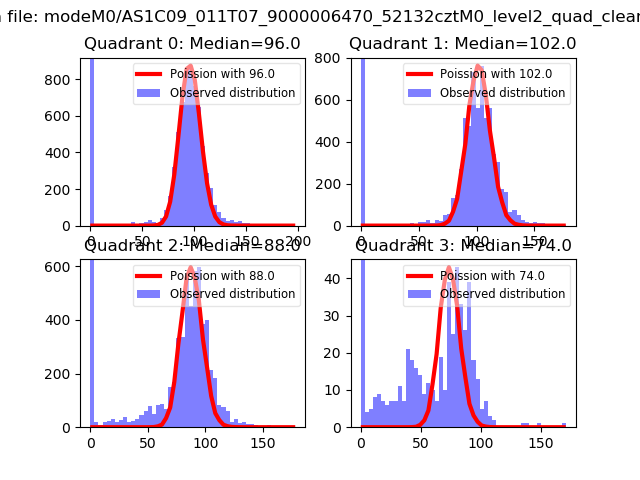

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

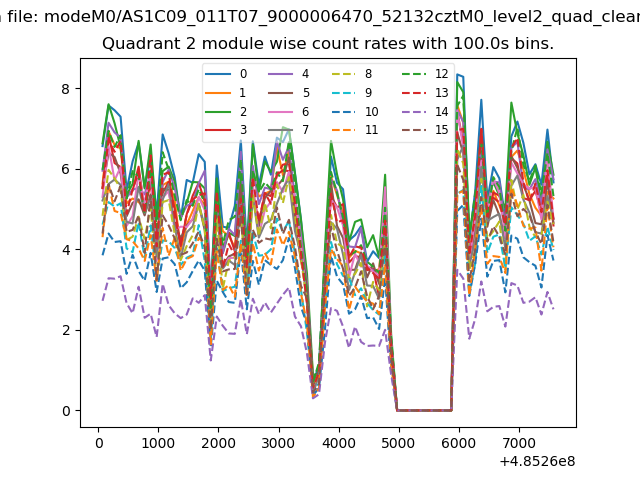

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

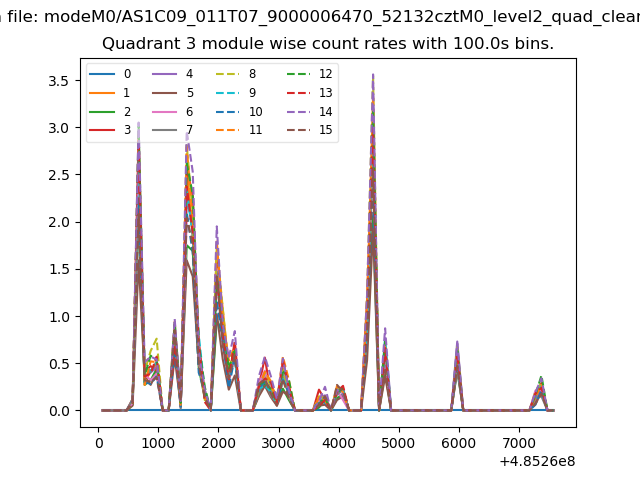

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

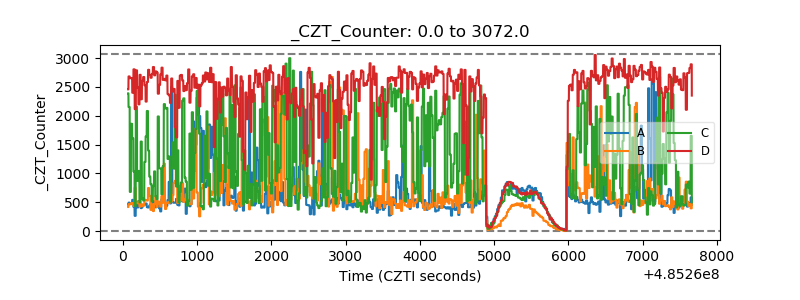

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
