| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006470_52134cztM0_level2.fits | modeM0/AS1C09_011T07_9000006470_52134cztM0_level2_quad_clean.evt |
| Size (bytes) | 884,664,000 | 69,966,720 |
| Size | 843.7 MB | 66.7 MB |
| Events in quadrant A | 4,631,306 | 586,856 |
| Events in quadrant B | 4,958,961 | 598,784 |
| Events in quadrant C | 7,590,752 | 460,706 |
| Events in quadrant D | 15,093,898 | 46,020 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17848 | 1 |
| B | 0 | 18921 | 1 |
| C | 0 | 26723 | 1 |
| D | 0 | 49044 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6102 | 377 | 6.178302% |
| B | 6102 | 644 | 10.553917% |
| C | 6102 | 1602 | 26.253687% |
| D | 6101 | 5706 | 93.525652% |

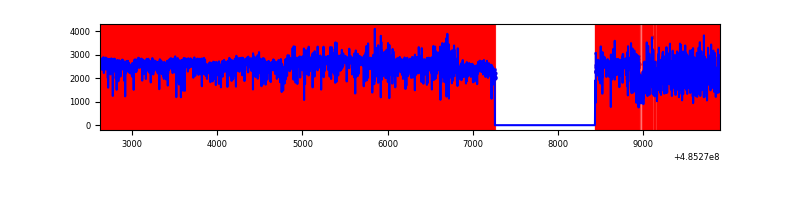

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

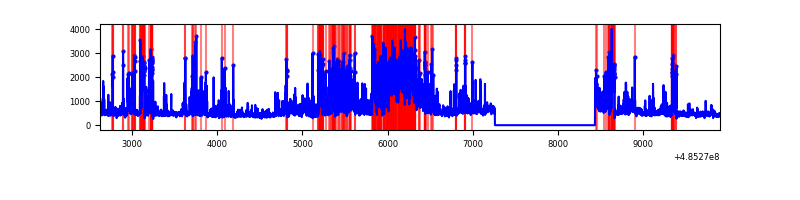

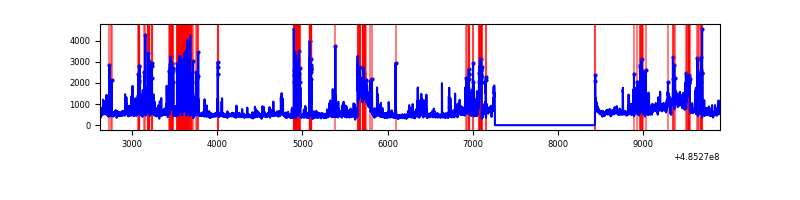

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7277 | 6102 | 258 | 258 | 3.55% | 4.23% |  |
| B | 7277 | 6103 | 424 | 424 | 5.83% | 6.95% |  |
| C | 7277 | 6103 | 1215 | 1215 | 16.70% | 19.91% |  |
| D | 7276 | 6101 | 5465 | 5465 | 75.11% | 89.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 162 | 447072 | 2781.32 | 643 | 627 | 160.5 |
| A | 15 | 174 | 305267 | 1897.88 | 643 | 627 | 160.5 |
| A | 7 | 160 | 246043 | 1528.92 | 643 | 627 | 160.5 |
| B | 5 | 172 | 1669094 | 12665.37 | 629 | 608 | 131.7 |
| B | 4 | 81 | 207960 | 1574.0 | 629 | 608 | 131.7 |
| B | 12 | 32 | 101265 | 764.08 | 629 | 608 | 131.7 |
| C | 15 | 224 | 4327750 | 27675.97 | 567 | 560 | 156.4 |
| C | 15 | 193 | 538606 | 3441.25 | 567 | 560 | 156.4 |
| C | 15 | 209 | 89721 | 570.26 | 567 | 560 | 156.4 |
| D | 6 | 42 | 7639358 | 99163.71 | 264 | 251 | 77.0 |
| D | 15 | 94 | 4742720 | 61562.28 | 264 | 251 | 77.0 |
| D | 12 | 3 | 660330 | 8568.53 | 264 | 251 | 77.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

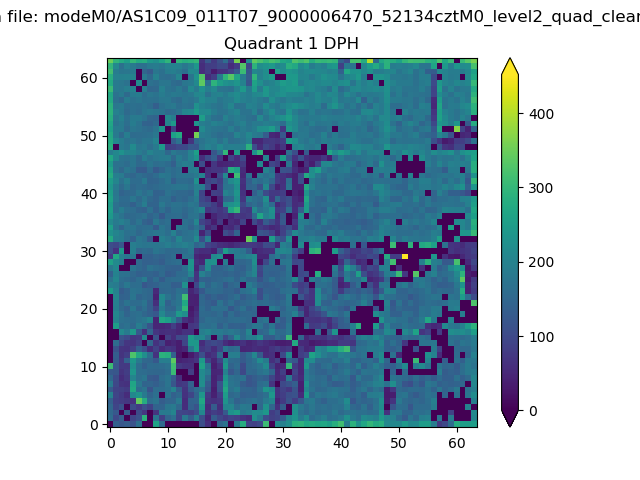

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

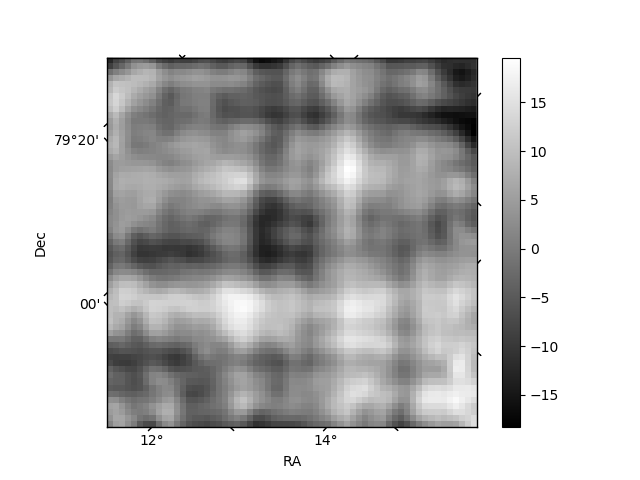

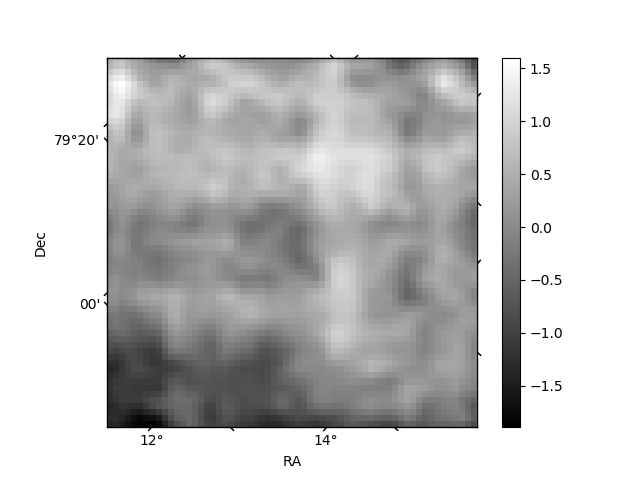

| Plot type | Count rate plots | Images |
|---|---|---|

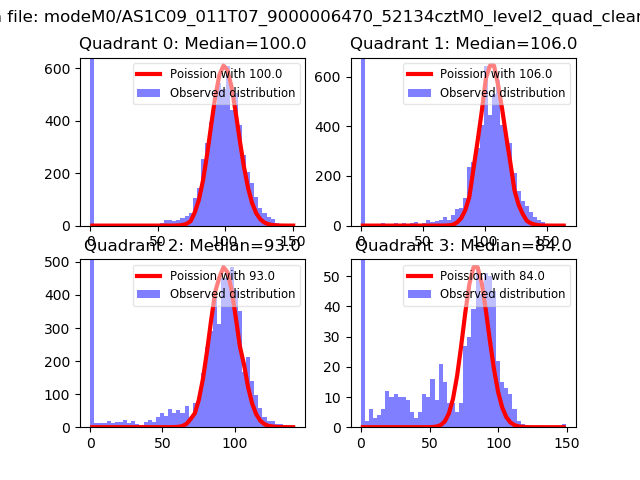

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

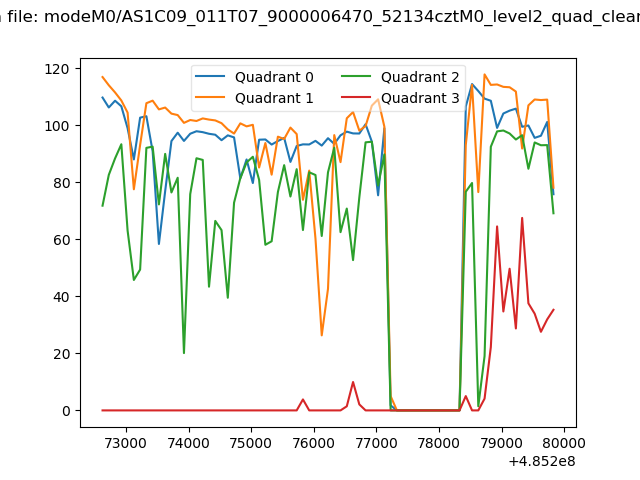

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

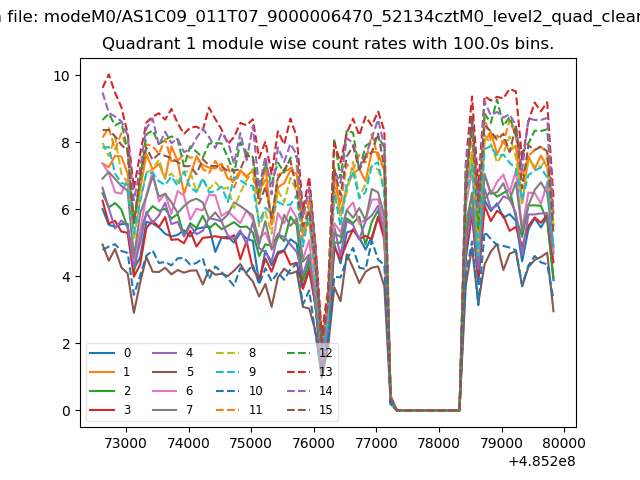

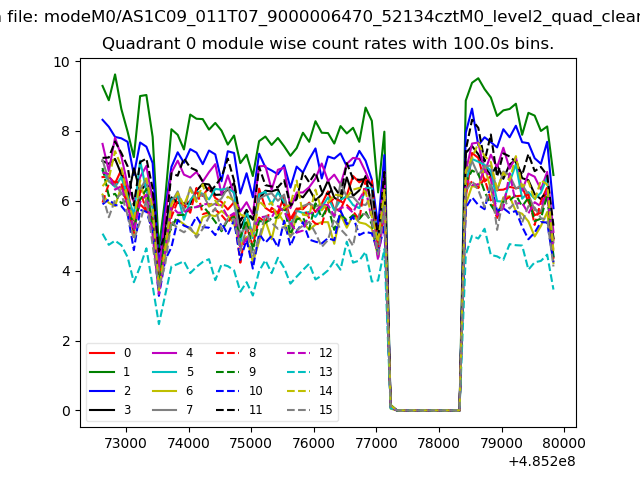

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

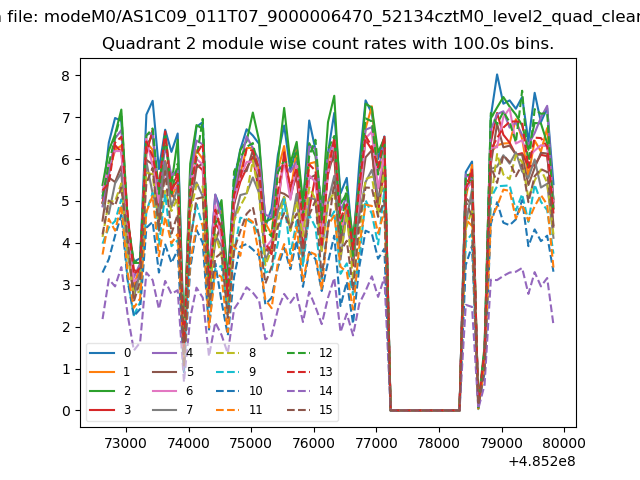

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

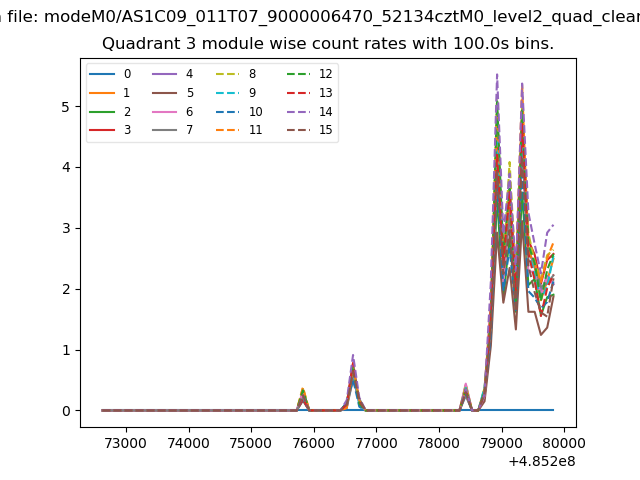

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

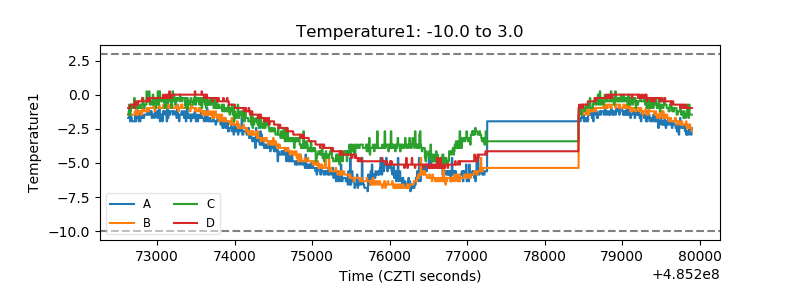

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

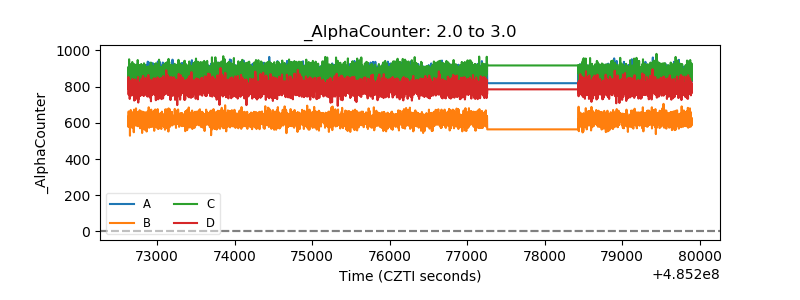

| Alpha Counter |  |

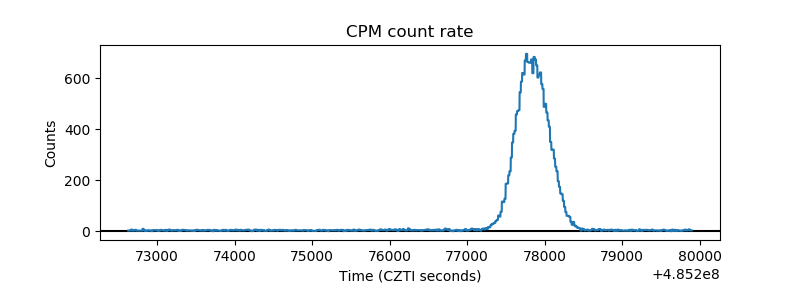

| _CPM_Rate |  |

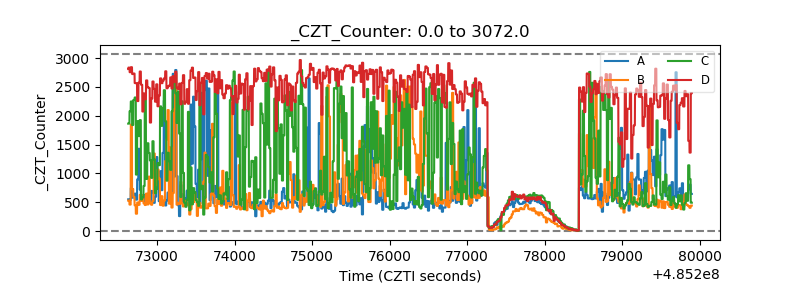

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

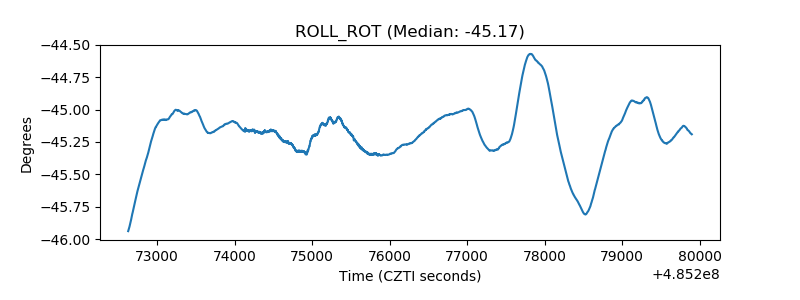

| _ROLL_ROT |  |

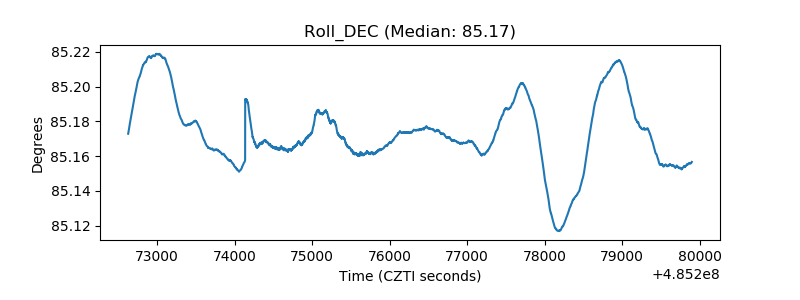

| _Roll_DEC |  |

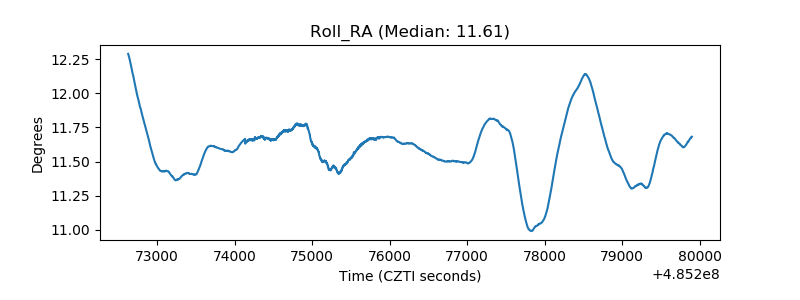

| _Roll_RA |  |

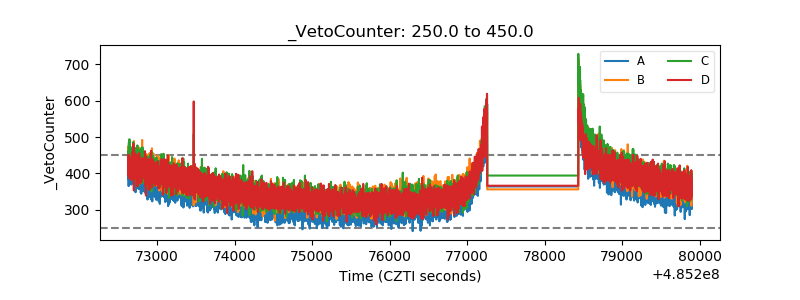

| Veto Counter |  |
