| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006470_52137cztM0_level2.fits | modeM0/AS1C09_011T07_9000006470_52137cztM0_level2_quad_clean.evt |
| Size (bytes) | 999,547,200 | 74,456,640 |
| Size | 953.2 MB | 71.0 MB |
| Events in quadrant A | 3,837,981 | 665,217 |
| Events in quadrant B | 5,347,287 | 672,921 |
| Events in quadrant C | 10,031,163 | 429,148 |
| Events in quadrant D | 17,243,681 | 1,243 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16272 | 1 |
| B | 0 | 20721 | 4 |
| C | 0 | 34702 | 12 |
| D | 0 | 55991 | 24 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6969 | 138 | 1.980198% |
| B | 6967 | 563 | 8.080953% |
| C | 6965 | 2658 | 38.162240% |
| D | 6966 | 6957 | 99.870801% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6970 | 100 | 100 | 1.32% | 1.43% |  |
| B | 7594 | 6969 | 388 | 388 | 5.11% | 5.57% |  |
| C | 7594 | 6968 | 2199 | 2199 | 28.96% | 31.56% |  |
| D | 7592 | 6965 | 6582 | 6582 | 86.70% | 94.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 295728 | 1616.54 | 727 | 709 | 182.5 |
| A | 14 | 254 | 139481 | 760.39 | 727 | 709 | 182.5 |
| A | 3 | 114 | 136708 | 745.2 | 727 | 709 | 182.5 |
| B | 5 | 172 | 962357 | 6427.6 | 706 | 681 | 149.6 |
| B | 5 | 185 | 347529 | 2318.25 | 706 | 681 | 149.6 |
| B | 0 | 216 | 275451 | 1836.49 | 706 | 681 | 149.6 |
| C | 15 | 224 | 4213880 | 25752.75 | 583 | 579 | 163.6 |
| C | 15 | 193 | 2368992 | 14476.33 | 583 | 579 | 163.6 |
| C | 13 | 3 | 291743 | 1779.67 | 583 | 579 | 163.6 |
| D | 6 | 42 | 11268264 | 194330.43 | 200 | 190 | 58.0 |
| D | 15 | 94 | 4529267 | 78108.96 | 200 | 190 | 58.0 |
| D | 12 | 1 | 104676 | 1801.98 | 200 | 190 | 58.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

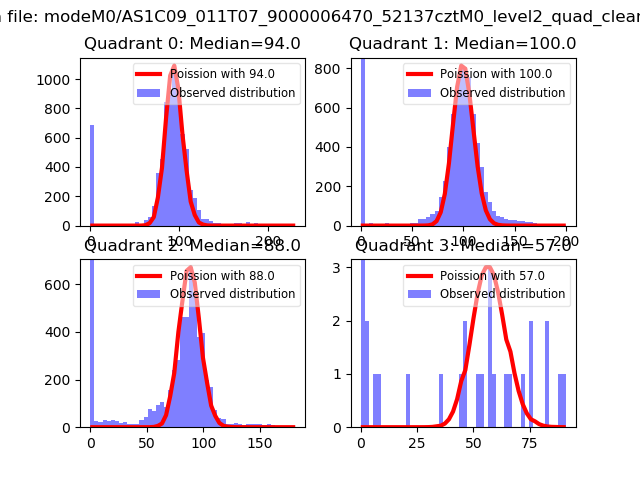

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

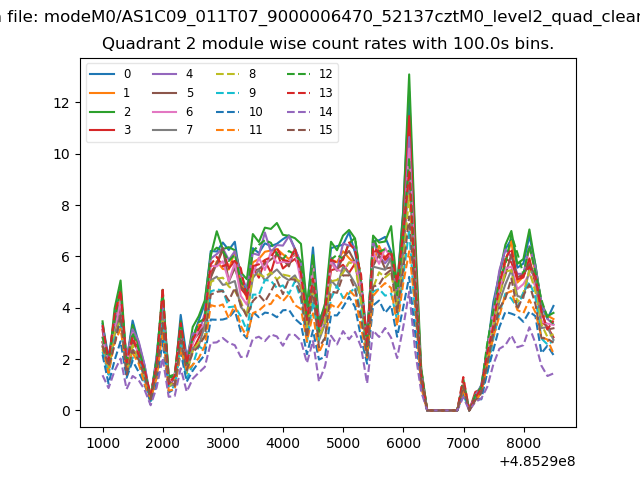

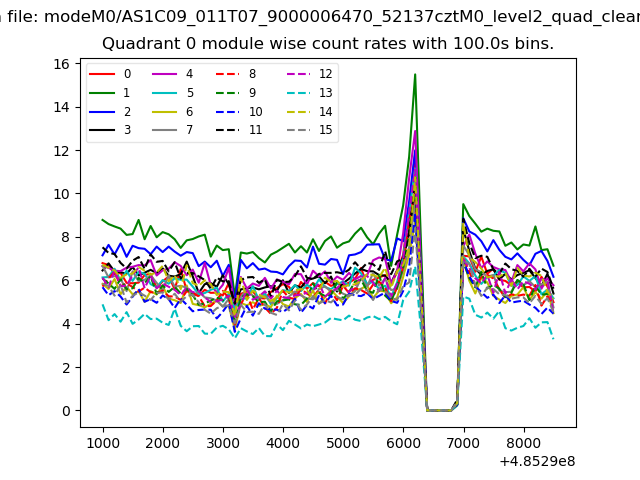

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

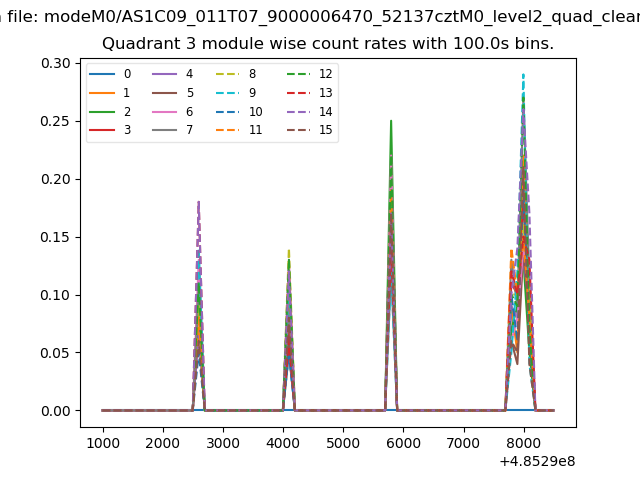

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

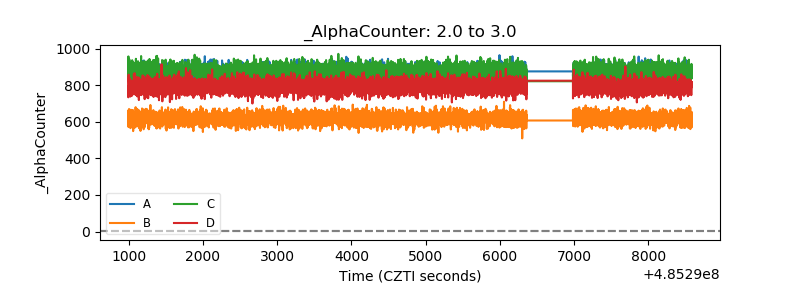

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

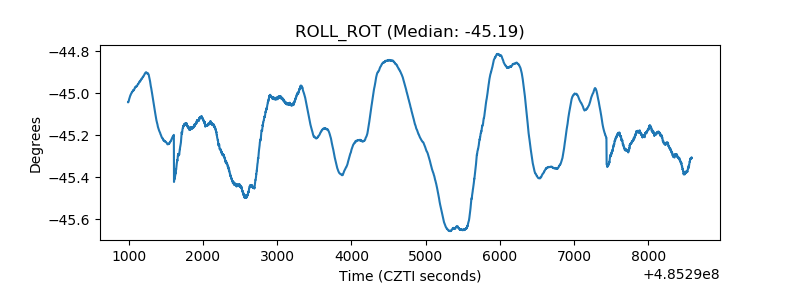

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
