| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006470_52138cztM0_level2.fits | modeM0/AS1C09_011T07_9000006470_52138cztM0_level2_quad_clean.evt |
| Size (bytes) | 78,200,640 | 7,963,200 |
| Size | 74.6 MB | 7.6 MB |
| Events in quadrant A | 468,115 | 74,050 |
| Events in quadrant B | 619,055 | 72,026 |
| Events in quadrant C | 794,289 | 33,064 |
| Events in quadrant D | 949,735 | 96 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 78 |
| B | 0 | 101 | 86 |
| C | 0 | 107 | 86 |
| D | 0 | 105 | 85 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 139903307917352 | 139899969732654 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12081 | 9899 |
| B | 0 | 17396 | 14850 |
| C | 0 | 23980 | 21176 |
| D | 0 | 40851 | 37777 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1061 | 2 | 0.188501% |
| B | 987 | 35 | 3.546099% |
| C | 655 | 138 | 21.068702% |
| D | 373 | 368 | 98.659517% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5603 | 1478 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5620 | 1373 | 30 | 30 | 0.53% | 2.18% |  |
| C | 5639 | 931 | 112 | 112 | 1.99% | 12.03% |  |
| D | 4823 | 403 | 347 | 347 | 7.19% | 86.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 17426 | 603.39 | 107 | 103 | 28.7 |
| A | 4 | 3 | 8341 | 286.95 | 107 | 103 | 28.7 |
| A | 11 | 3 | 7525 | 258.52 | 107 | 103 | 28.7 |
| B | 4 | 81 | 151129 | 6562.08 | 96 | 93 | 23.0 |
| B | 12 | 32 | 36718 | 1591.25 | 96 | 93 | 23.0 |
| B | 7 | 252 | 8681 | 373.12 | 96 | 93 | 23.0 |
| C | 15 | 224 | 442972 | 25635.98 | 56 | 55 | 17.3 |
| C | 13 | 3 | 23685 | 1367.7 | 56 | 55 | 17.3 |
| C | 4 | 5 | 19287 | 1113.15 | 56 | 55 | 17.3 |
| D | 6 | 42 | 723483 | 127874.55 | 14 | 13 | 5.7 |
| D | 15 | 94 | 82510 | 14581.49 | 14 | 13 | 5.7 |
| D | 12 | 3 | 56825 | 10041.62 | 14 | 13 | 5.7 |

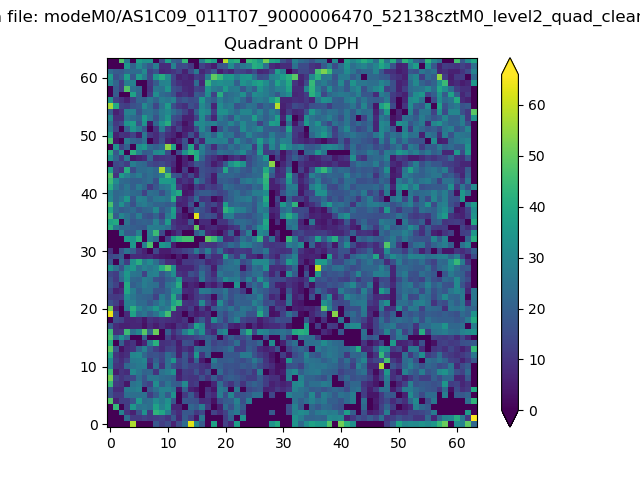

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

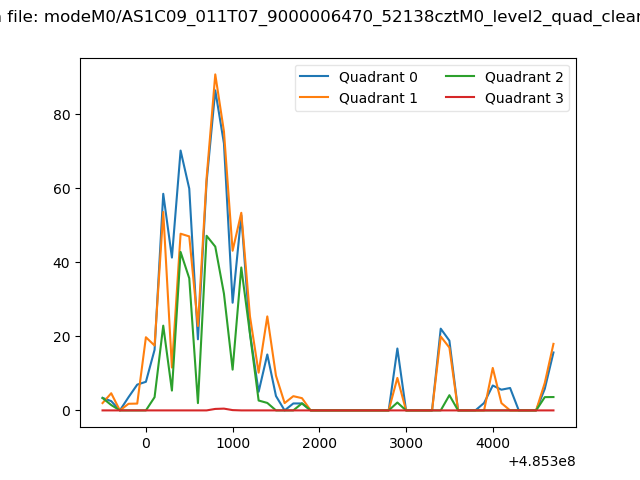

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

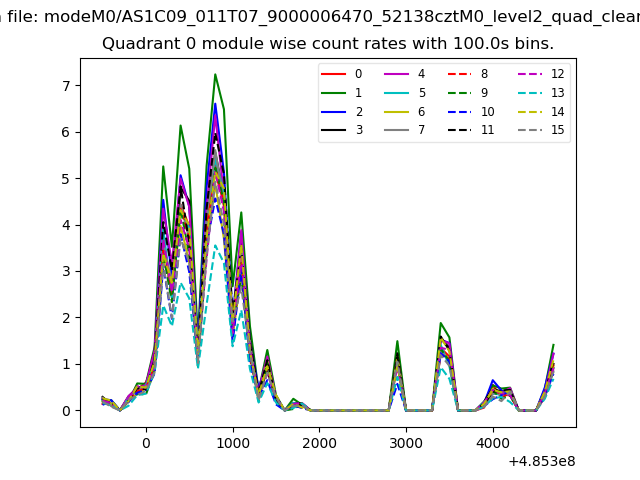

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

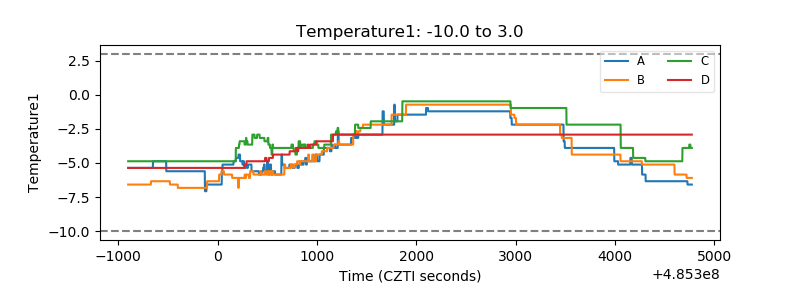

| Temperature 1 |  |

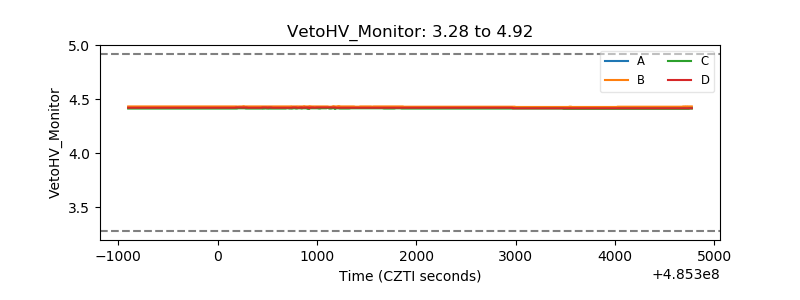

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

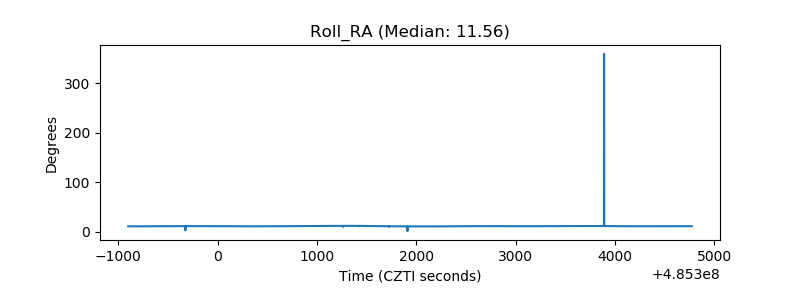

| _Roll_RA |  |
| Veto Counter |  |
