| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006470_52140cztM0_level2.fits | modeM0/AS1C09_011T07_9000006470_52140cztM0_level2_quad_clean.evt |
| Size (bytes) | 885,600,000 | 86,472,000 |
| Size | 844.6 MB | 82.5 MB |
| Events in quadrant A | 4,603,944 | 647,325 |
| Events in quadrant B | 5,461,545 | 694,297 |
| Events in quadrant C | 7,961,785 | 537,723 |
| Events in quadrant D | 14,210,760 | 247,741 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18820 | 25 |
| B | 0 | 21197 | 12 |
| C | 0 | 28615 | 35 |
| D | 0 | 47130 | 74 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7039 | 258 | 3.665293% |
| B | 7042 | 332 | 4.714570% |
| C | 7040 | 1404 | 19.943182% |
| D | 7036 | 4333 | 61.583286% |

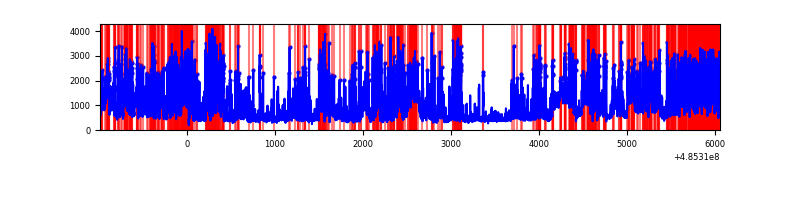

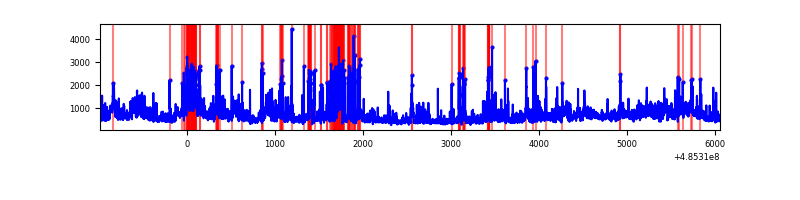

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7039 | 7039 | 166 | 166 | 2.36% | 2.36% |  |
| B | 7042 | 7042 | 199 | 199 | 2.83% | 2.83% |  |
| C | 7040 | 7040 | 994 | 994 | 14.12% | 14.12% |  |
| D | 7038 | 7038 | 4215 | 4215 | 59.89% | 59.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 114 | 815858 | 4381.93 | 749 | 729 | 186.0 |
| A | 7 | 206 | 176852 | 946.79 | 749 | 729 | 186.0 |
| A | 14 | 254 | 139644 | 746.77 | 749 | 729 | 186.0 |
| B | 5 | 172 | 1119467 | 6927.91 | 749 | 721 | 161.5 |
| B | 5 | 185 | 444246 | 2746.56 | 749 | 721 | 161.5 |
| B | 4 | 81 | 209670 | 1293.93 | 749 | 721 | 161.5 |
| C | 15 | 224 | 3077029 | 16217.34 | 686 | 679 | 189.7 |
| C | 15 | 158 | 384660 | 2024.2 | 686 | 679 | 189.7 |
| C | 15 | 209 | 315029 | 1657.13 | 686 | 679 | 189.7 |
| D | 6 | 42 | 7757037 | 54131.35 | 500 | 479 | 143.3 |
| D | 15 | 94 | 1096173 | 7646.61 | 500 | 479 | 143.3 |
| D | 12 | 3 | 723626 | 5046.69 | 500 | 479 | 143.3 |

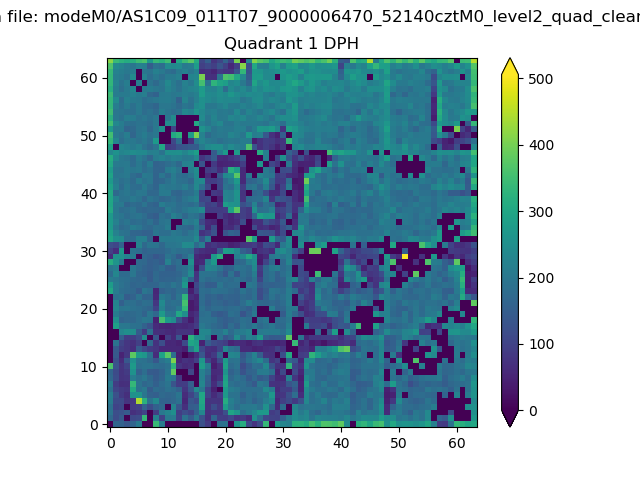

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

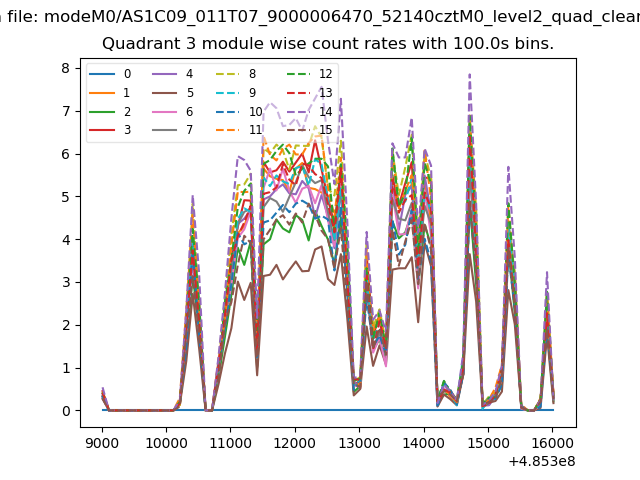

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

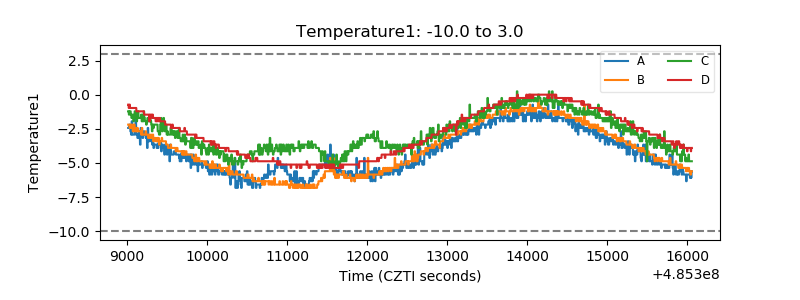

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

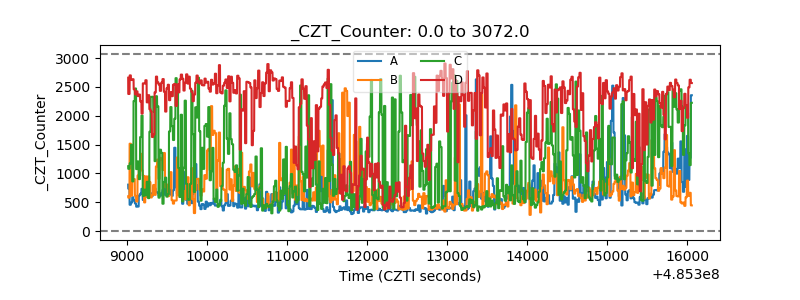

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

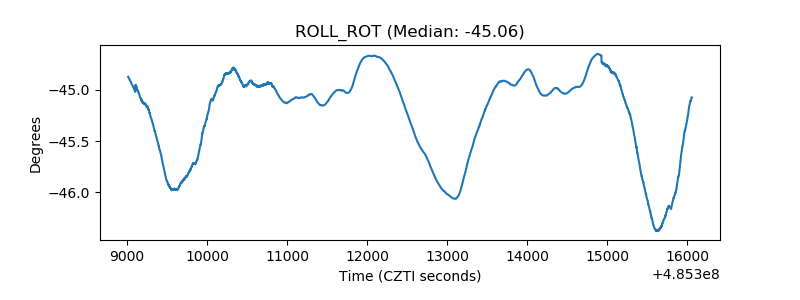

| _ROLL_ROT |  |
| _Roll_DEC |  |

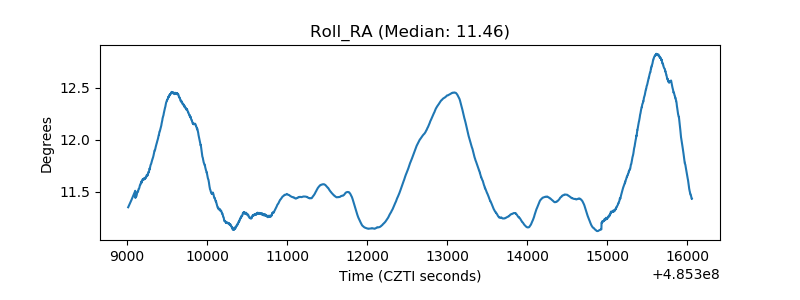

| _Roll_RA |  |
| Veto Counter |  |
