| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006470_52146cztM0_level2.fits | modeM0/AS1C09_011T07_9000006470_52146cztM0_level2_quad_clean.evt |
| Size (bytes) | 834,943,680 | 76,354,560 |
| Size | 796.3 MB | 72.8 MB |
| Events in quadrant A | 4,751,915 | 570,535 |
| Events in quadrant B | 4,741,315 | 608,672 |
| Events in quadrant C | 7,121,010 | 466,641 |
| Events in quadrant D | 13,800,875 | 222,486 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18378 | 5 |
| B | 0 | 18444 | 2 |
| C | 0 | 25629 | 1 |
| D | 0 | 45302 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6352 | 517 | 8.139169% |
| B | 6353 | 555 | 8.736030% |
| C | 6354 | 1504 | 23.670129% |
| D | 6353 | 4258 | 67.023453% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

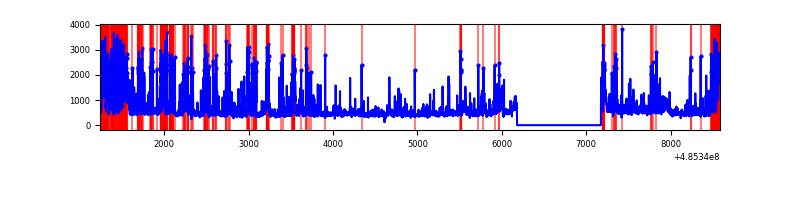

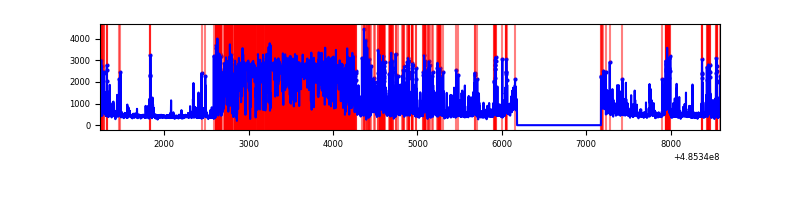

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7348 | 6353 | 402 | 402 | 5.47% | 6.33% |  |
| B | 7348 | 6354 | 406 | 406 | 5.53% | 6.39% |  |
| C | 7349 | 6355 | 1349 | 1349 | 18.36% | 21.23% |  |
| D | 7348 | 6353 | 4205 | 4205 | 57.23% | 66.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 95 | 1139358 | 6877.66 | 663 | 647 | 165.6 |
| A | 15 | 174 | 180795 | 1088.07 | 663 | 647 | 165.6 |
| A | 14 | 254 | 162453 | 977.29 | 663 | 647 | 165.6 |
| B | 4 | 81 | 1075768 | 7839.02 | 644 | 623 | 137.2 |
| B | 5 | 185 | 415658 | 3026.07 | 644 | 623 | 137.2 |
| B | 10 | 254 | 145238 | 1054.41 | 644 | 623 | 137.2 |
| C | 15 | 224 | 2455890 | 14888.0 | 585 | 577 | 164.9 |
| C | 6 | 252 | 844297 | 5115.97 | 585 | 577 | 164.9 |
| C | 1 | 45 | 600118 | 3635.37 | 585 | 577 | 164.9 |
| D | 6 | 42 | 10325968 | 71678.72 | 499 | 477 | 144.1 |
| D | 15 | 94 | 469968 | 3259.17 | 499 | 477 | 144.1 |
| D | 12 | 3 | 232744 | 1612.38 | 499 | 477 | 144.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

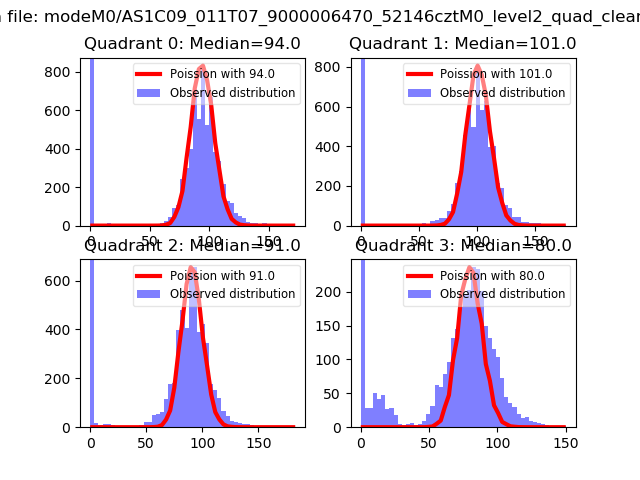

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

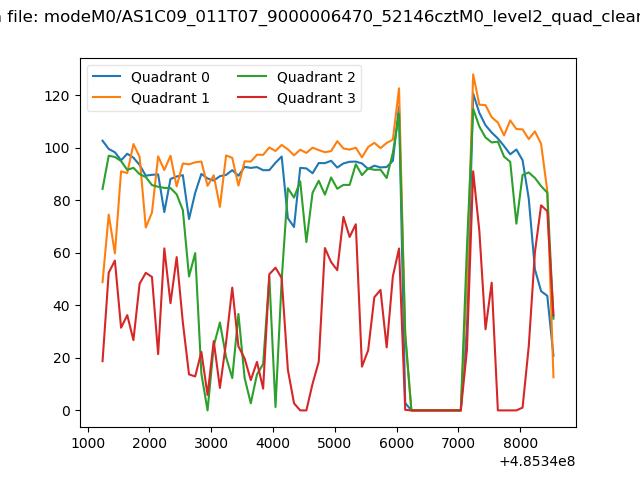

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

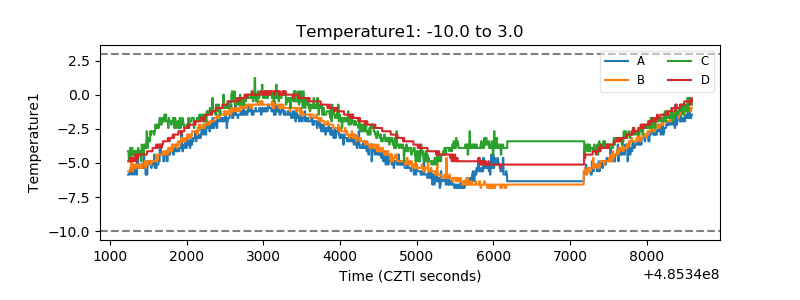

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

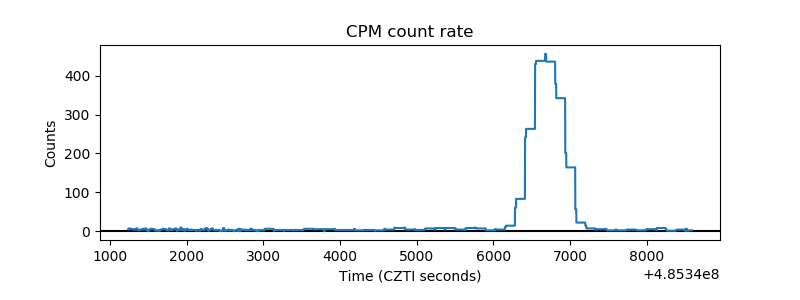

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
