| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006470_52147cztM0_level2.fits | modeM0/AS1C09_011T07_9000006470_52147cztM0_level2_quad_clean.evt |
| Size (bytes) | 713,494,080 | 77,633,280 |
| Size | 680.4 MB | 74.0 MB |
| Events in quadrant A | 4,920,200 | 549,387 |
| Events in quadrant B | 3,757,690 | 619,743 |
| Events in quadrant C | 5,666,613 | 505,803 |
| Events in quadrant D | 11,593,937 | 249,495 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18844 | 1 |
| B | 0 | 15373 | 1 |
| C | 0 | 21160 | 1 |
| D | 0 | 38633 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6097 | 660 | 10.824996% |
| B | 6098 | 258 | 4.230895% |
| C | 6098 | 837 | 13.725812% |
| D | 6098 | 3465 | 56.821909% |

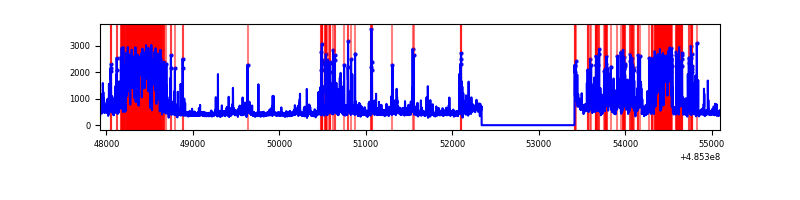

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7172 | 6097 | 526 | 526 | 7.33% | 8.63% |  |
| B | 7173 | 6098 | 155 | 155 | 2.16% | 2.54% |  |
| C | 7173 | 6098 | 721 | 721 | 10.05% | 11.82% |  |
| D | 7172 | 6097 | 3392 | 3392 | 47.30% | 55.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 95 | 1484602 | 9387.7 | 637 | 621 | 158.1 |
| A | 14 | 254 | 519925 | 3285.13 | 637 | 621 | 158.1 |
| A | 5 | 240 | 92145 | 578.98 | 637 | 621 | 158.1 |
| B | 5 | 185 | 431425 | 3213.96 | 636 | 613 | 134.0 |
| B | 0 | 171 | 104997 | 778.73 | 636 | 613 | 134.0 |
| B | 0 | 172 | 96362 | 714.31 | 636 | 613 | 134.0 |
| C | 15 | 224 | 2380959 | 14516.99 | 597 | 593 | 164.0 |
| C | 13 | 3 | 245759 | 1495.18 | 597 | 593 | 164.0 |
| C | 4 | 5 | 133490 | 810.49 | 597 | 593 | 164.0 |
| D | 6 | 42 | 8842780 | 68248.61 | 450 | 428 | 129.6 |
| D | 3 | 12 | 387050 | 2984.09 | 450 | 428 | 129.6 |
| D | 13 | 170 | 114320 | 879.06 | 450 | 428 | 129.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

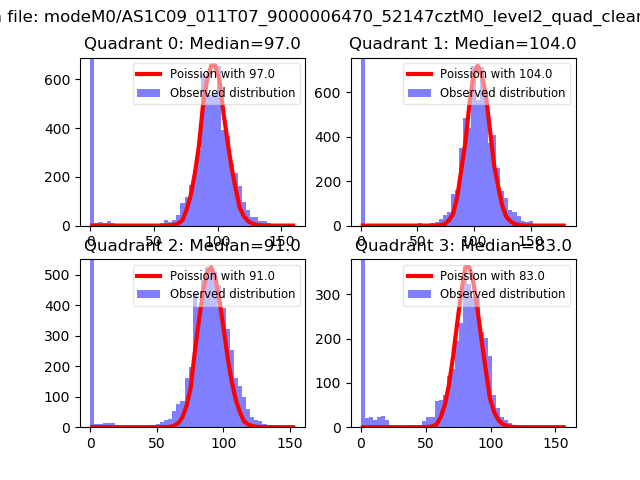

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

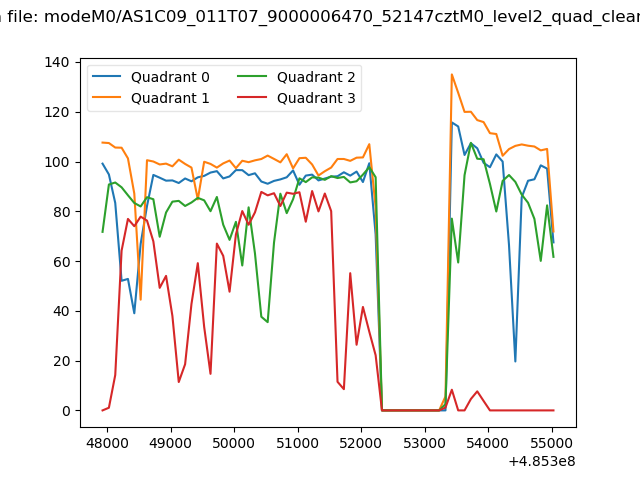

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

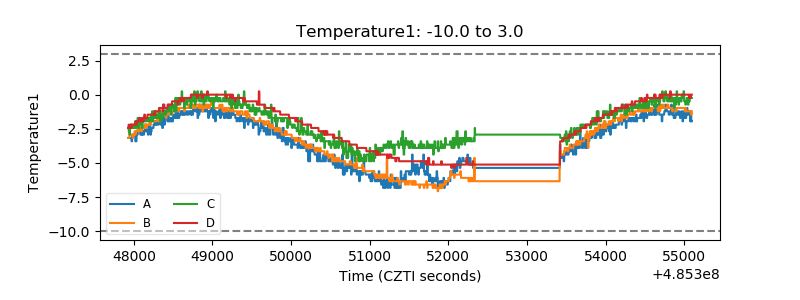

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

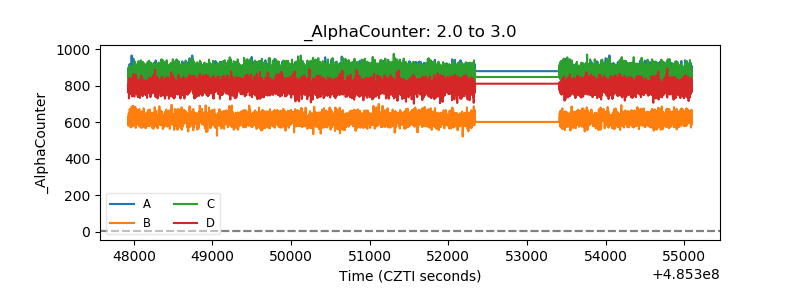

| Alpha Counter |  |

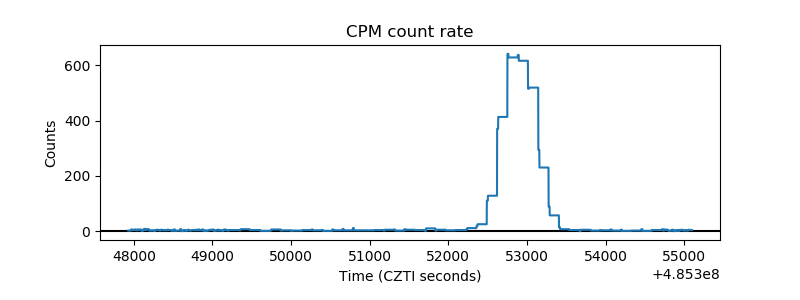

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

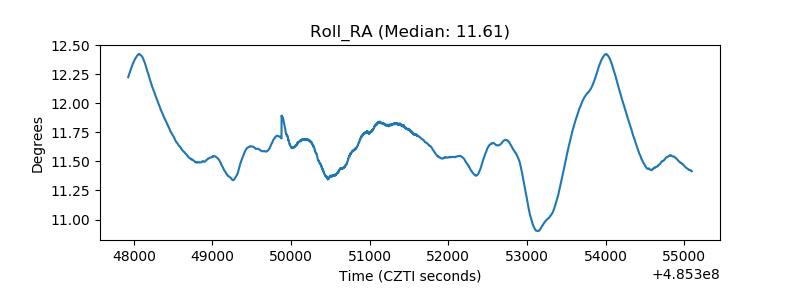

| _Roll_RA |  |

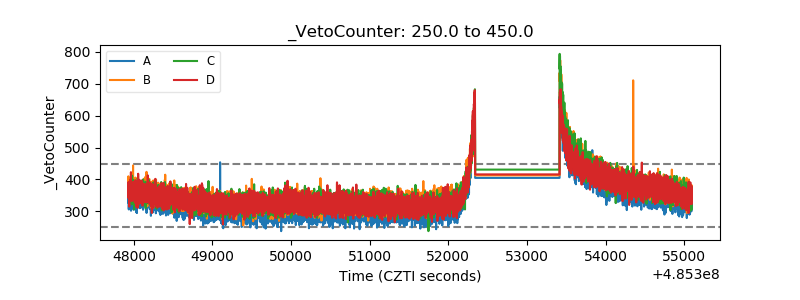

| Veto Counter |  |
