| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006472_52158cztM0_level2.fits | modeM0/AS1C09_011T08_9000006472_52158cztM0_level2_quad_clean.evt |
| Size (bytes) | 815,938,560 | 66,496,320 |
| Size | 778.1 MB | 63.4 MB |
| Events in quadrant A | 5,149,831 | 560,261 |
| Events in quadrant B | 3,823,249 | 605,134 |
| Events in quadrant C | 8,615,773 | 408,969 |
| Events in quadrant D | 12,128,018 | 1,500 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19774 | 0 |
| B | 0 | 15686 | 0 |
| C | 0 | 29930 | 0 |
| D | 0 | 40372 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6259 | 263 | 4.201949% |
| B | 6259 | 210 | 3.355169% |
| C | 6259 | 1997 | 31.906055% |
| D | 6259 | 6246 | 99.792299% |

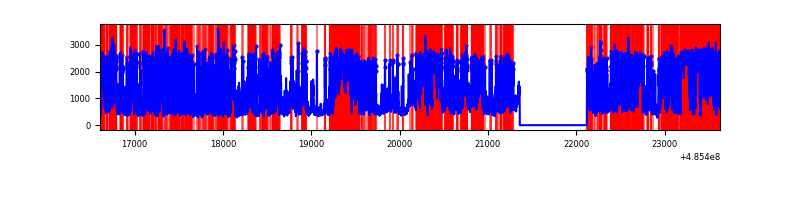

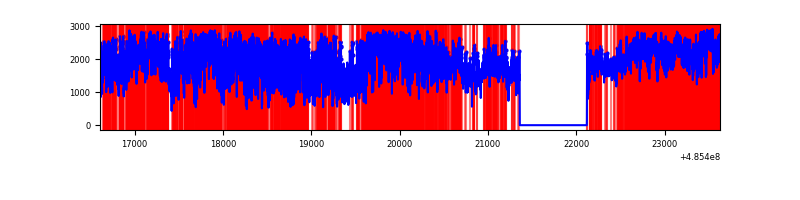

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7019 | 6259 | 180 | 180 | 2.56% | 2.88% |  |
| B | 7019 | 6259 | 114 | 114 | 1.62% | 1.82% |  |
| C | 7019 | 6259 | 1870 | 1870 | 26.64% | 29.88% |  |
| D | 7018 | 6258 | 2966 | 2966 | 42.26% | 47.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 1071888 | 6582.26 | 648 | 630 | 162.7 |
| A | 3 | 95 | 366027 | 2245.15 | 648 | 630 | 162.7 |
| A | 4 | 95 | 237626 | 1456.2 | 648 | 630 | 162.7 |
| B | 10 | 44 | 274166 | 1999.98 | 641 | 619 | 136.8 |
| B | 10 | 254 | 253133 | 1846.2 | 641 | 619 | 136.8 |
| B | 4 | 171 | 163573 | 1191.4 | 641 | 619 | 136.8 |
| C | 15 | 224 | 4208892 | 27973.48 | 541 | 535 | 150.4 |
| C | 0 | 192 | 1063825 | 7067.82 | 541 | 535 | 150.4 |
| C | 3 | 233 | 506293 | 3361.84 | 541 | 535 | 150.4 |
| D | 12 | 1 | 10160296 | 573976.47 | 55 | 52 | 17.7 |
| D | 6 | 42 | 1537247 | 86839.82 | 55 | 52 | 17.7 |
| D | 12 | 3 | 43493 | 2454.09 | 55 | 52 | 17.7 |

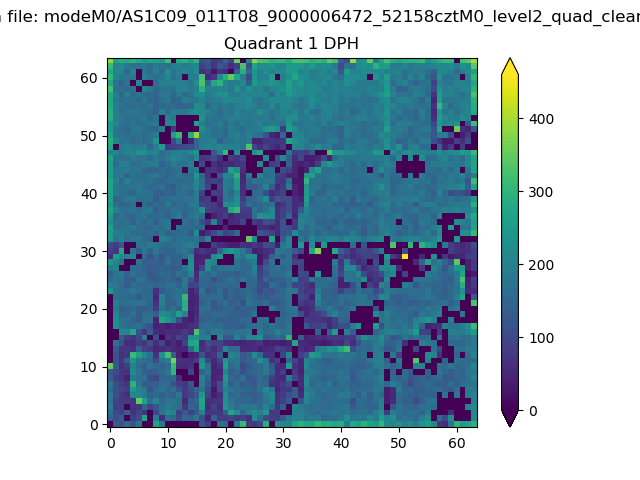

Histogram calculated using DETX and DETY for each event in the final _common_clean file

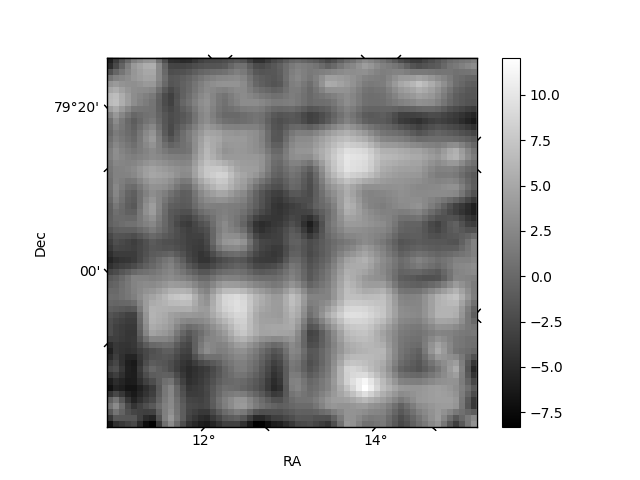

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

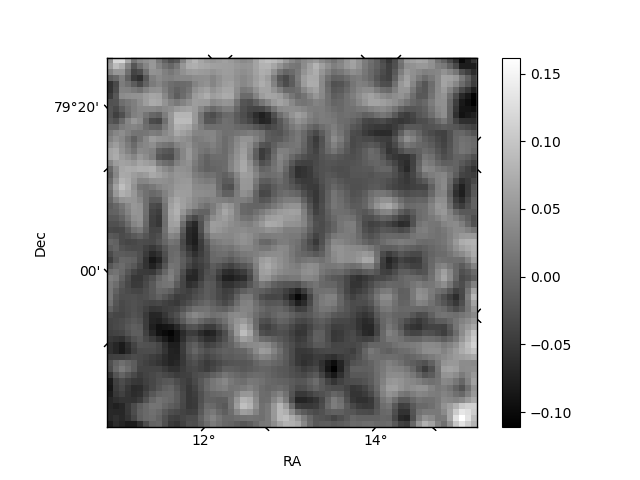

Quadrant C |

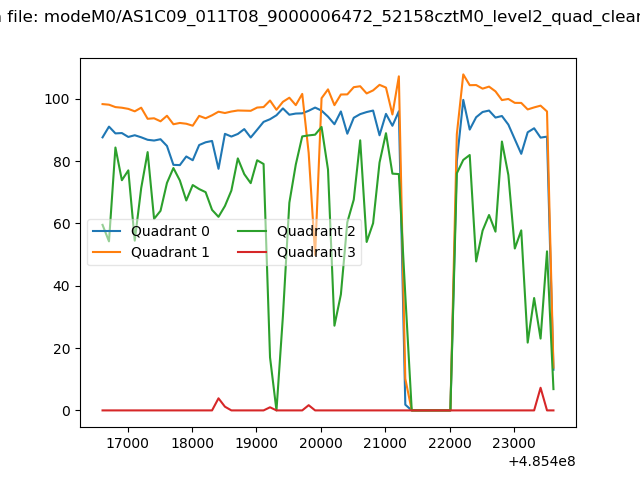

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

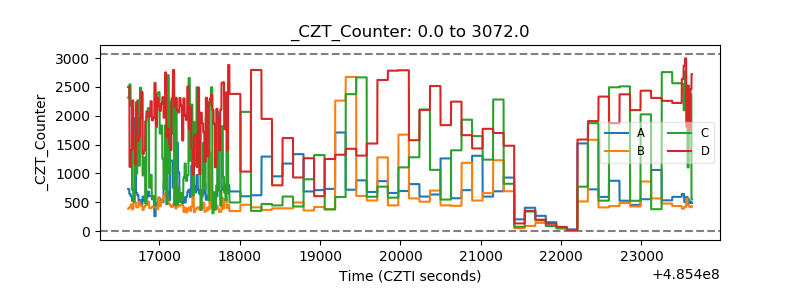

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

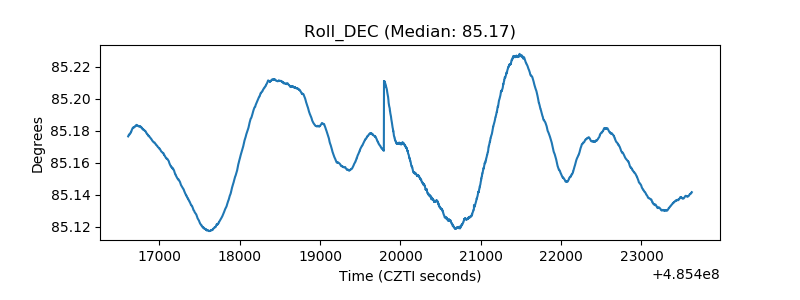

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
