| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006472_52211cztM0_level2.fits | modeM0/AS1C09_011T08_9000006472_52211cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,067,783,040 | 77,999,040 |
| Size | 1018.3 MB | 74.4 MB |
| Events in quadrant A | 4,883,391 | 651,622 |
| Events in quadrant B | 7,285,709 | 663,897 |
| Events in quadrant C | 9,913,511 | 442,373 |
| Events in quadrant D | 16,885,083 | 100,010 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19618 | 0 |
| B | 0 | 26692 | 0 |
| C | 0 | 34471 | 6 |
| D | 0 | 55101 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7223 | 361 | 4.997923% |
| B | 7223 | 860 | 11.906410% |
| C | 7222 | 2602 | 36.028801% |
| D | 7222 | 6232 | 86.291886% |

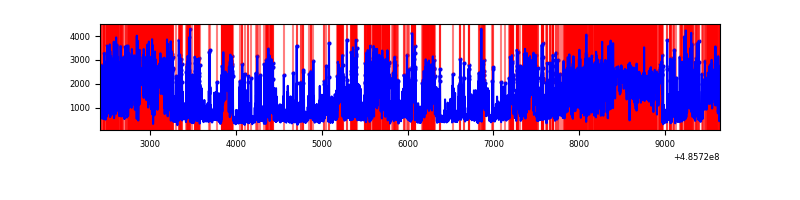

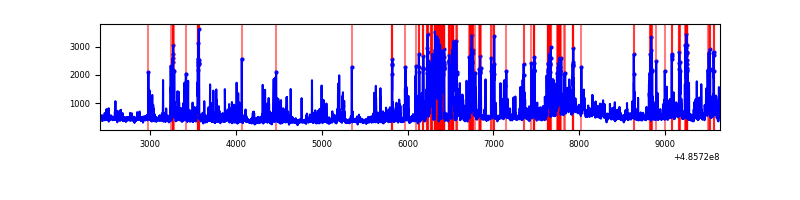

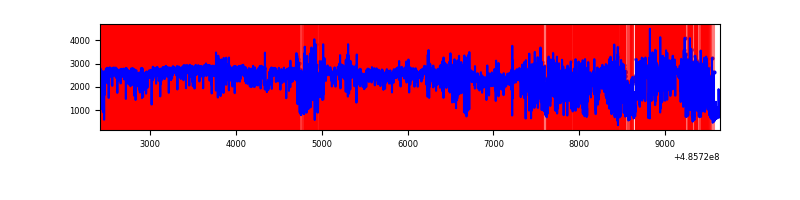

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7223 | 7223 | 266 | 266 | 3.68% | 3.68% |  |
| B | 7223 | 7223 | 648 | 648 | 8.97% | 8.97% |  |
| C | 7221 | 7221 | 1893 | 1893 | 26.22% | 26.22% |  |
| D | 7222 | 7222 | 5841 | 5841 | 80.88% | 80.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 1323910 | 7001.0 | 748 | 728 | 189.0 |
| A | 12 | 3 | 120838 | 635.51 | 748 | 728 | 189.0 |
| A | 3 | 145 | 73734 | 386.28 | 748 | 728 | 189.0 |
| B | 5 | 32 | 2000086 | 13008.2 | 726 | 700 | 153.7 |
| B | 10 | 254 | 1553382 | 10101.9 | 726 | 700 | 153.7 |
| B | 4 | 81 | 126165 | 816.28 | 726 | 700 | 153.7 |
| C | 15 | 224 | 4306173 | 25626.21 | 599 | 593 | 168.0 |
| C | 15 | 231 | 1616329 | 9616.63 | 599 | 593 | 168.0 |
| C | 13 | 3 | 640378 | 3807.91 | 599 | 593 | 168.0 |
| D | 6 | 42 | 11601959 | 120471.79 | 333 | 317 | 96.3 |
| D | 15 | 93 | 1543414 | 16023.56 | 333 | 317 | 96.3 |
| D | 7 | 222 | 667208 | 6925.02 | 333 | 317 | 96.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

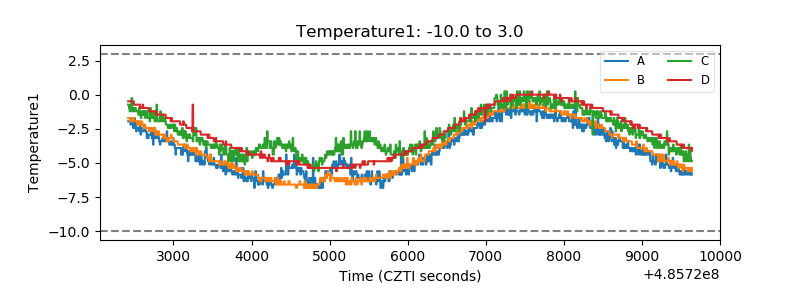

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

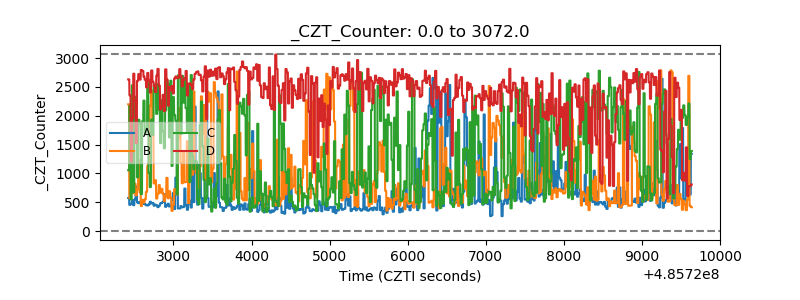

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

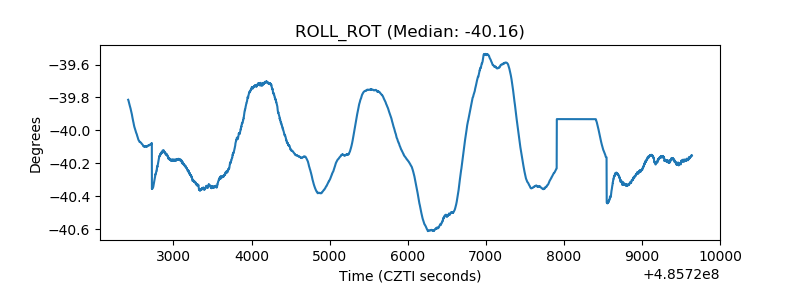

| _ROLL_ROT |  |

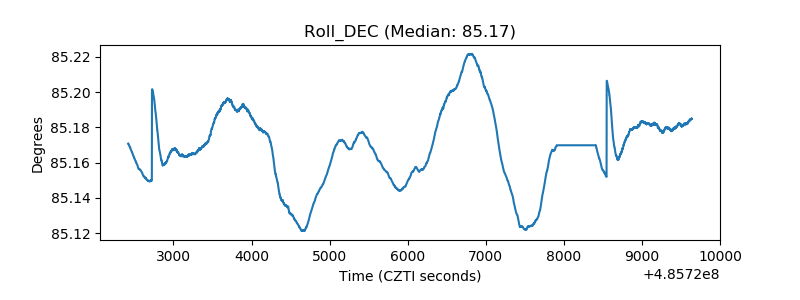

| _Roll_DEC |  |
| _Roll_RA |  |

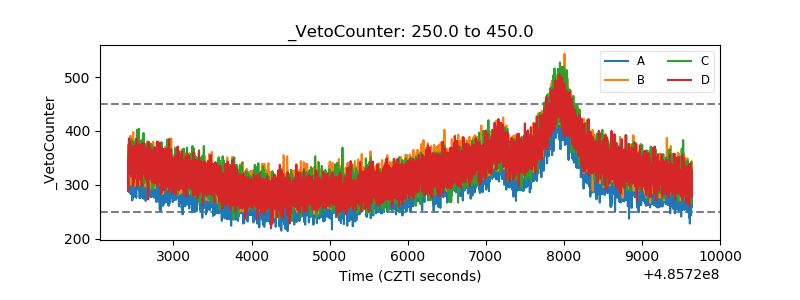

| Veto Counter |  |
