| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006472_52216cztM0_level2.fits | modeM0/AS1C09_011T08_9000006472_52216cztM0_level2_quad_clean.evt |
| Size (bytes) | 949,867,200 | 76,080,960 |
| Size | 905.9 MB | 72.6 MB |
| Events in quadrant A | 3,720,183 | 607,879 |
| Events in quadrant B | 7,059,294 | 597,334 |
| Events in quadrant C | 8,750,358 | 475,503 |
| Events in quadrant D | 15,117,151 | 158,471 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15874 | 3 |
| B | 0 | 25519 | 1 |
| C | 0 | 30601 | 1 |
| D | 0 | 49507 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6655 | 98 | 1.472577% |
| B | 6656 | 863 | 12.965745% |
| C | 6656 | 1631 | 24.504207% |
| D | 6656 | 5019 | 75.405649% |

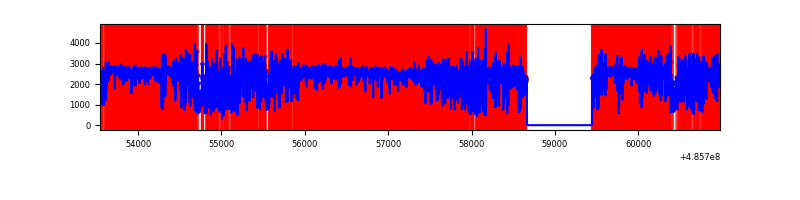

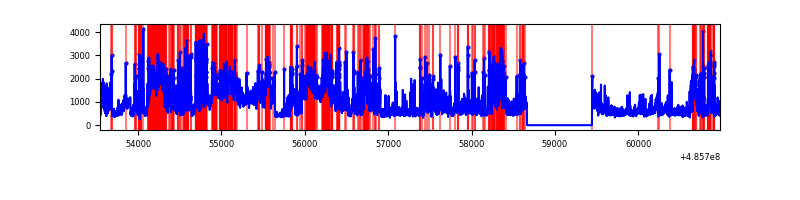

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7435 | 6655 | 59 | 59 | 0.79% | 0.89% |  |
| B | 7436 | 6657 | 727 | 727 | 9.78% | 10.92% |  |
| C | 7436 | 6657 | 1435 | 1435 | 19.30% | 21.56% |  |
| D | 7435 | 6656 | 4952 | 4952 | 66.60% | 74.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 254974 | 1490.38 | 686 | 667 | 170.6 |
| A | 4 | 158 | 203354 | 1187.86 | 686 | 667 | 170.6 |
| A | 14 | 254 | 193248 | 1128.63 | 686 | 667 | 170.6 |
| B | 10 | 254 | 2108339 | 14841.62 | 662 | 640 | 142.0 |
| B | 5 | 32 | 838975 | 5903.24 | 662 | 640 | 142.0 |
| B | 0 | 197 | 525418 | 3695.29 | 662 | 640 | 142.0 |
| C | 15 | 224 | 1983428 | 11859.16 | 605 | 601 | 167.2 |
| C | 15 | 177 | 1304475 | 7798.39 | 605 | 601 | 167.2 |
| C | 15 | 161 | 1077932 | 6443.45 | 605 | 601 | 167.2 |
| D | 6 | 42 | 8936209 | 80893.09 | 378 | 359 | 110.5 |
| D | 15 | 93 | 1476381 | 13361.91 | 378 | 359 | 110.5 |
| D | 8 | 176 | 983717 | 8901.99 | 378 | 359 | 110.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

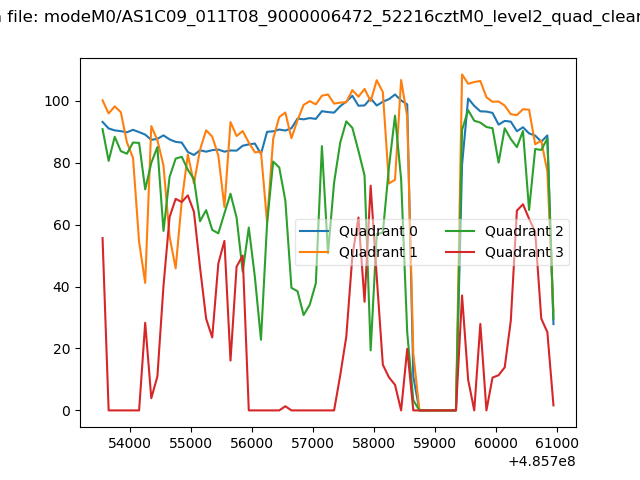

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

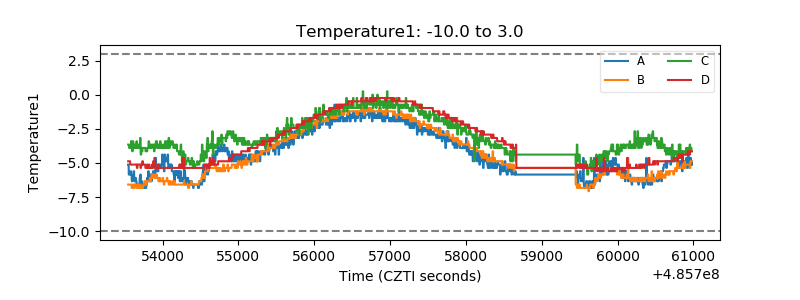

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

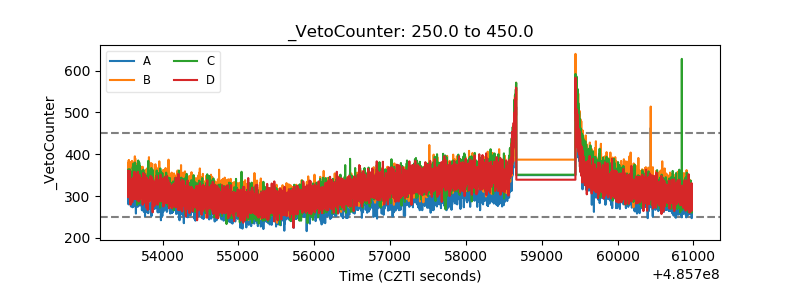

| Veto Counter |  |
