| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006472_52219cztM0_level2.fits | modeM0/AS1C09_011T08_9000006472_52219cztM0_level2_quad_clean.evt |
| Size (bytes) | 805,959,360 | 68,385,600 |
| Size | 768.6 MB | 65.2 MB |
| Events in quadrant A | 3,212,391 | 555,476 |
| Events in quadrant B | 5,158,970 | 575,550 |
| Events in quadrant C | 6,873,551 | 460,349 |
| Events in quadrant D | 14,133,720 | 68,228 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13616 | 1 |
| B | 0 | 19464 | 3 |
| C | 0 | 24496 | 1 |
| D | 0 | 46006 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5876 | 84 | 1.429544% |
| B | 5876 | 383 | 6.518039% |
| C | 5876 | 1087 | 18.498979% |
| D | 5876 | 5216 | 88.767869% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

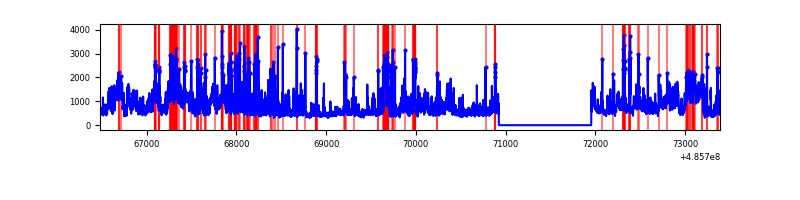

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6906 | 5877 | 32 | 32 | 0.46% | 0.54% |  |
| B | 6906 | 5876 | 260 | 260 | 3.76% | 4.42% |  |
| C | 6906 | 5877 | 931 | 931 | 13.48% | 15.84% |  |
| D | 6906 | 5876 | 4950 | 4950 | 71.68% | 84.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 296433 | 1931.61 | 618 | 604 | 153.2 |
| A | 11 | 3 | 137286 | 892.46 | 618 | 604 | 153.2 |
| A | 3 | 145 | 68621 | 444.12 | 618 | 604 | 153.2 |
| B | 10 | 254 | 1380606 | 10766.58 | 598 | 578 | 128.2 |
| B | 5 | 32 | 726073 | 5660.1 | 598 | 578 | 128.2 |
| B | 4 | 171 | 173084 | 1345.84 | 598 | 578 | 128.2 |
| C | 15 | 224 | 1766828 | 11358.32 | 555 | 551 | 155.5 |
| C | 15 | 231 | 1495619 | 9614.27 | 555 | 551 | 155.5 |
| C | 15 | 192 | 515390 | 3310.75 | 555 | 551 | 155.5 |
| D | 6 | 42 | 8820915 | 110106.36 | 272 | 259 | 80.1 |
| D | 11 | 176 | 1986437 | 24793.04 | 272 | 259 | 80.1 |
| D | 15 | 93 | 1554069 | 19395.88 | 272 | 259 | 80.1 |

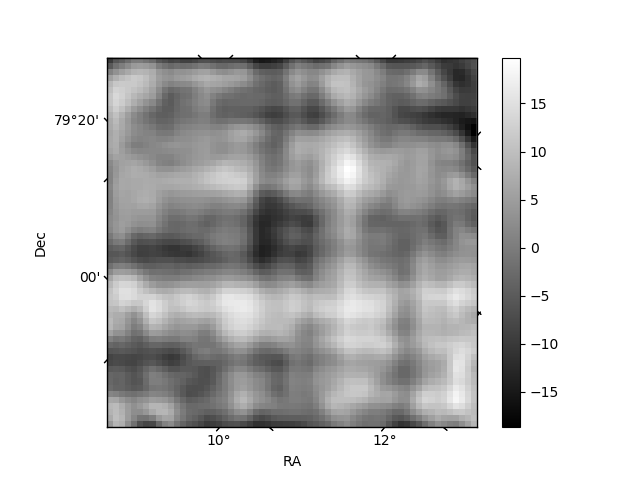

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

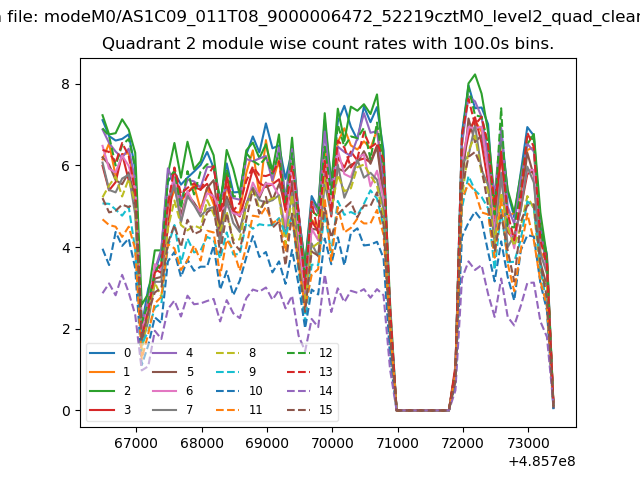

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

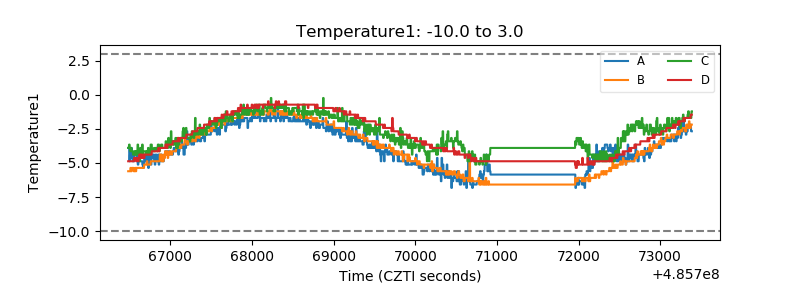

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

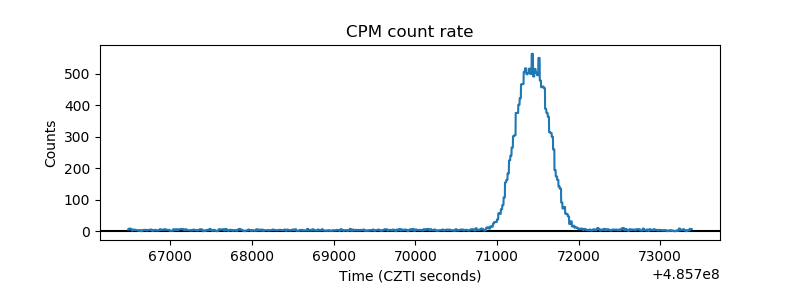

| _CPM_Rate |  |

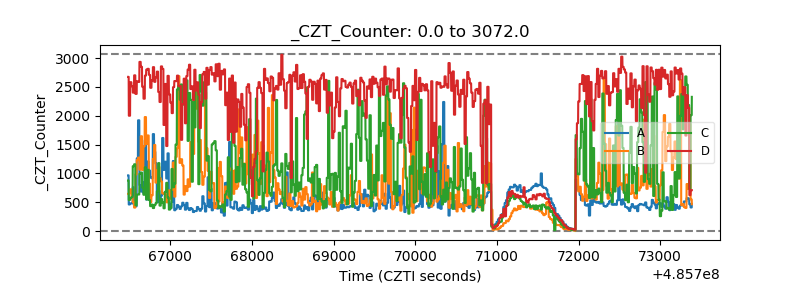

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

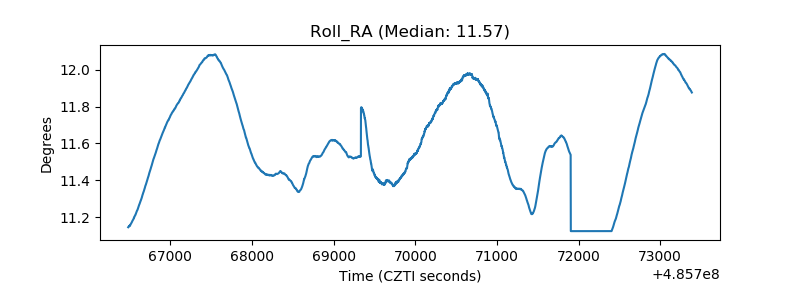

| _Roll_RA |  |

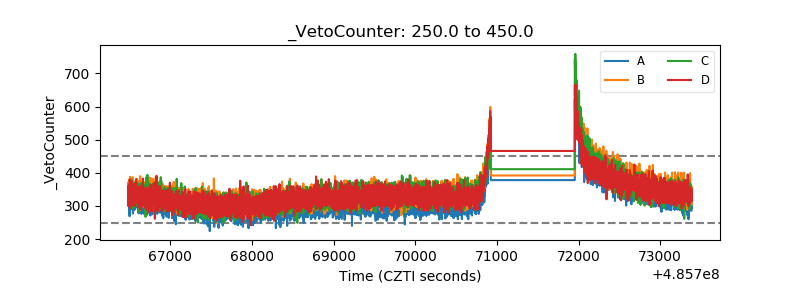

| Veto Counter |  |
