| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006472_52220cztM0_level2.fits | modeM0/AS1C09_011T08_9000006472_52220cztM0_level2_quad_clean.evt |
| Size (bytes) | 870,672,960 | 71,228,160 |
| Size | 830.3 MB | 67.9 MB |
| Events in quadrant A | 3,945,910 | 587,604 |
| Events in quadrant B | 6,535,323 | 552,992 |
| Events in quadrant C | 8,116,080 | 412,414 |
| Events in quadrant D | 13,159,028 | 176,227 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15849 | 1 |
| B | 0 | 23682 | 1 |
| C | 0 | 28274 | 1 |
| D | 0 | 43385 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6118 | 217 | 3.546911% |
| B | 6119 | 1050 | 17.159667% |
| C | 6119 | 2031 | 33.191698% |
| D | 6119 | 4240 | 69.292368% |

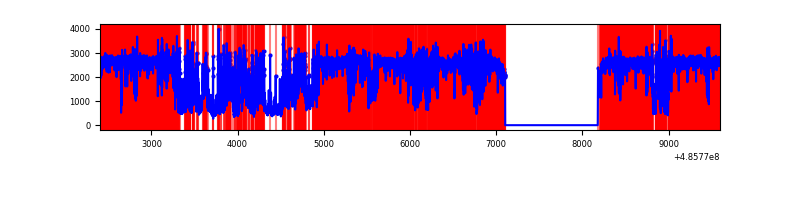

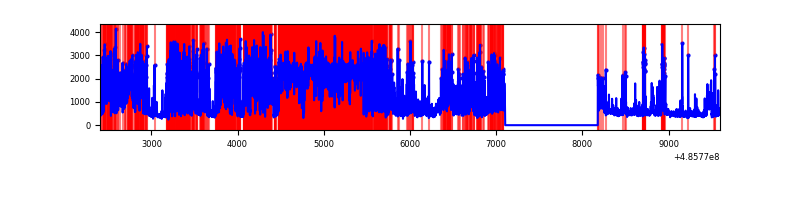

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7193 | 6118 | 124 | 124 | 1.72% | 2.03% |  |
| B | 7194 | 6119 | 691 | 691 | 9.61% | 11.29% |  |
| C | 7194 | 6119 | 1673 | 1673 | 23.26% | 27.34% |  |
| D | 7193 | 6118 | 4182 | 4182 | 58.14% | 68.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 636103 | 3937.9 | 651 | 636 | 161.4 |
| A | 4 | 95 | 190966 | 1179.45 | 651 | 636 | 161.4 |
| A | 4 | 249 | 132602 | 817.78 | 651 | 636 | 161.4 |
| B | 10 | 254 | 1899299 | 14400.48 | 618 | 595 | 131.9 |
| B | 5 | 32 | 1409681 | 10687.03 | 618 | 595 | 131.9 |
| B | 10 | 44 | 143751 | 1085.75 | 618 | 595 | 131.9 |
| C | 15 | 224 | 3810313 | 26137.75 | 525 | 520 | 145.8 |
| C | 15 | 231 | 1505455 | 10324.87 | 525 | 520 | 145.8 |
| C | 12 | 252 | 242093 | 1657.35 | 525 | 520 | 145.8 |
| D | 6 | 42 | 9158669 | 82292.3 | 384 | 365 | 111.3 |
| D | 15 | 93 | 682117 | 6125.91 | 384 | 365 | 111.3 |
| D | 8 | 176 | 631717 | 5673.04 | 384 | 365 | 111.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

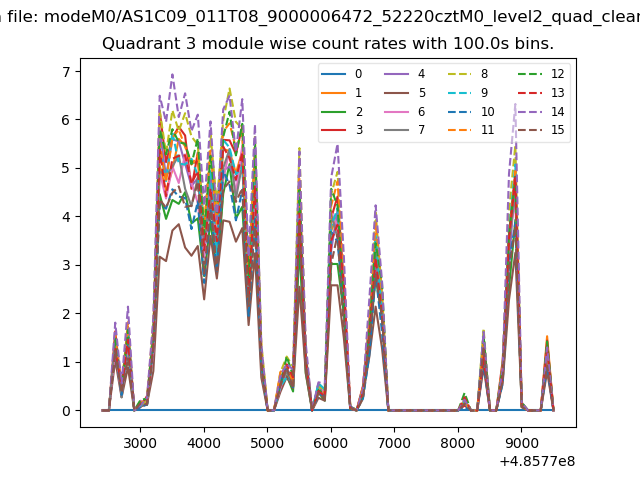

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

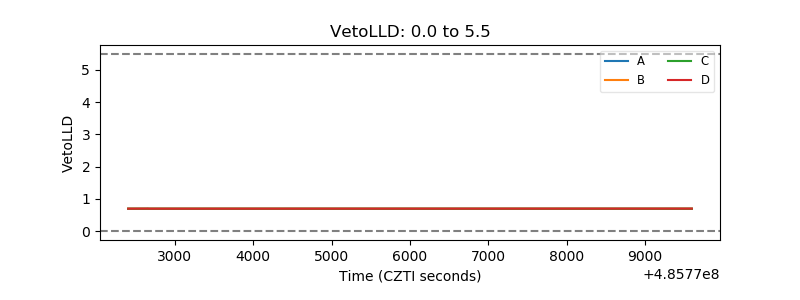

| Veto LLD |  |

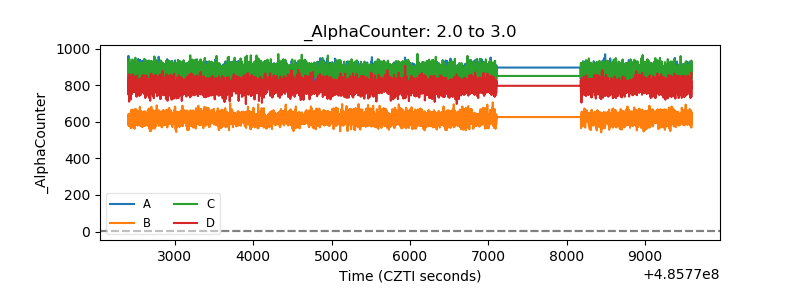

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
