| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T08_9000006472_52230cztM0_level2.fits | modeM0/AS1C09_011T08_9000006472_52230cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,134,517,760 | 226,068,480 |
| Size | 2.0 GB | 215.6 MB |
| Events in quadrant A | 10,888,073 | 1,644,459 |
| Events in quadrant B | 16,327,493 | 1,655,606 |
| Events in quadrant C | 23,353,397 | 1,225,110 |
| Events in quadrant D | 26,989,533 | 1,016,413 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 45968 | 8 |
| B | 0 | 61614 | 22 |
| C | 0 | 82703 | 13 |
| D | 0 | 93368 | 26 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18872 | 527 | 2.792497% |
| B | 18869 | 1948 | 10.323812% |
| C | 18872 | 5184 | 27.469267% |
| D | 18872 | 6369 | 33.748410% |

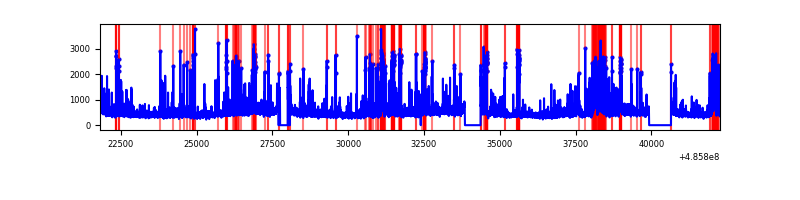

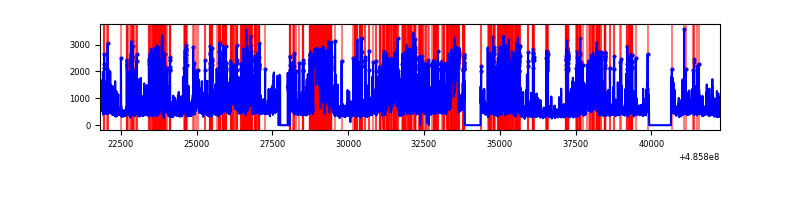

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20444 | 18878 | 454 | 454 | 2.22% | 2.40% |  |
| B | 20444 | 18874 | 1527 | 1527 | 7.47% | 8.09% |  |
| C | 20444 | 18875 | 4714 | 4714 | 23.06% | 24.97% |  |
| D | 20445 | 18873 | 6086 | 6086 | 29.77% | 32.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 878117 | 1823.94 | 1938 | 1887 | 480.4 |
| A | 12 | 3 | 865186 | 1797.02 | 1938 | 1887 | 480.4 |
| A | 11 | 3 | 249691 | 515.82 | 1938 | 1887 | 480.4 |
| B | 5 | 32 | 5101742 | 13088.3 | 1857 | 1793 | 389.7 |
| B | 10 | 254 | 1110479 | 2845.29 | 1857 | 1793 | 389.7 |
| B | 4 | 81 | 551340 | 1410.33 | 1857 | 1793 | 389.7 |
| C | 15 | 224 | 12661344 | 28064.33 | 1633 | 1619 | 451.1 |
| C | 15 | 147 | 934203 | 2067.37 | 1633 | 1619 | 451.1 |
| C | 2 | 239 | 721592 | 1596.05 | 1633 | 1619 | 451.1 |
| D | 12 | 2 | 6729479 | 14801.85 | 1558 | 1484 | 454.5 |
| D | 15 | 93 | 6134181 | 13492.17 | 1558 | 1484 | 454.5 |
| D | 8 | 176 | 2522896 | 5547.2 | 1558 | 1484 | 454.5 |

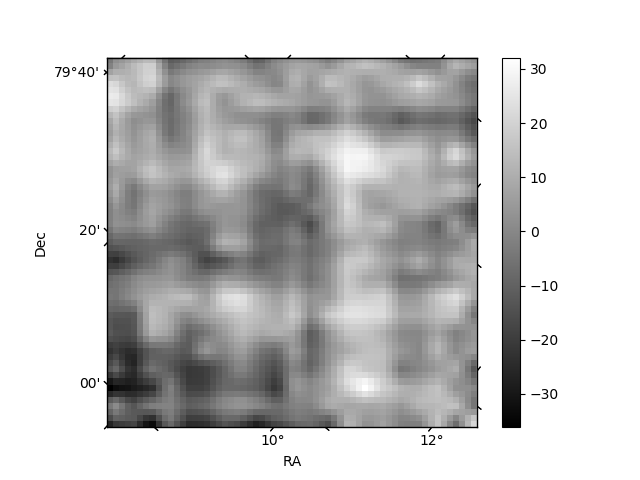

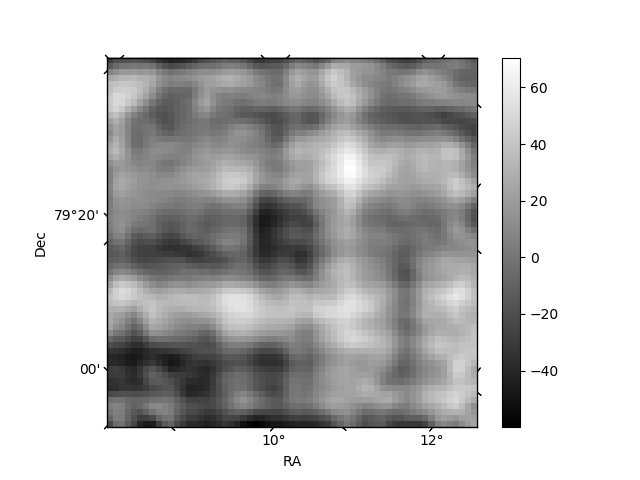

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

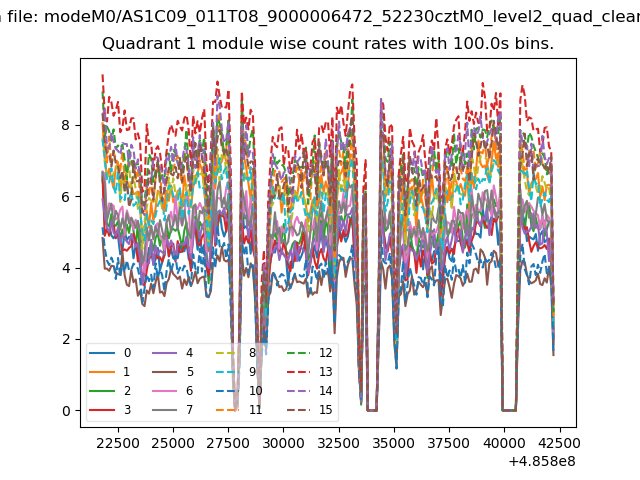

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

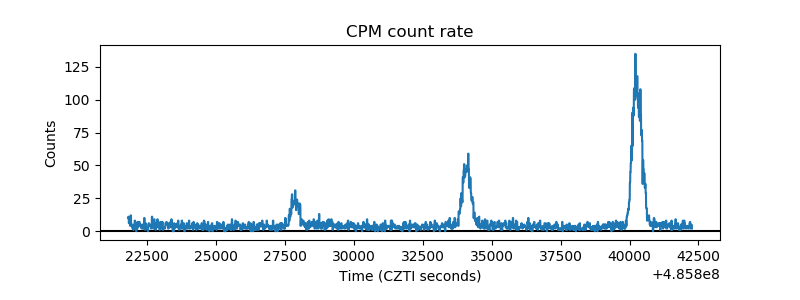

| _CPM_Rate |  |

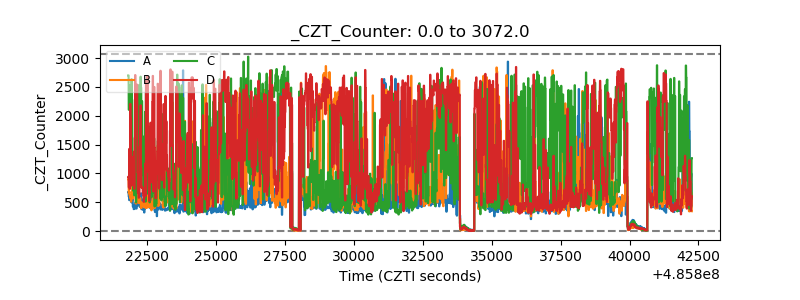

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

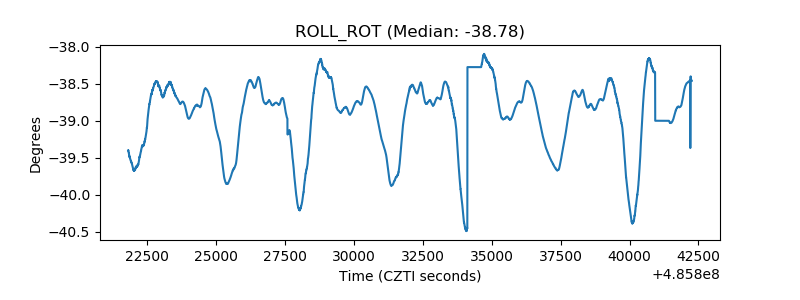

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
