| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52438cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52438cztM0_level2_quad_clean.evt |
| Size (bytes) | 170,372,160 | 18,034,560 |
| Size | 162.5 MB | 17.2 MB |
| Events in quadrant A | 723,090 | 145,715 |
| Events in quadrant B | 914,242 | 154,382 |
| Events in quadrant C | 2,125,216 | 71,757 |
| Events in quadrant D | 2,430,044 | 67,355 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 4 |
| B | 0 | 10 | 1 |
| C | 0 | 11 | 2 |
| D | 0 | 12 | 4 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5780 | 2636 |
| B | 0 | 6857 | 3198 |
| C | 0 | 12428 | 5175 |
| D | 0 | 16224 | 8053 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62 | 29 |
| B | 0 | 61 | 31 |
| C | 0 | 59 | 25 |
| D | 0 | 56 | 21 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1491 | 9 | 0.603622% |
| B | 1490 | 24 | 1.610738% |
| C | 1381 | 660 | 47.791455% |
| D | 1379 | 686 | 49.746193% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4302 | 1566 | 3 | 3 | 0.07% | 0.19% |  |
| B | 5482 | 1557 | 1 | 1 | 0.02% | 0.06% |  |
| C | 4328 | 1389 | 556 | 556 | 12.85% | 40.03% |  |
| D | 4167 | 1414 | 605 | 605 | 14.52% | 42.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 7414 | 165.0 | 173 | 169 | 43.9 |
| A | 4 | 3 | 6234 | 138.13 | 173 | 169 | 43.9 |
| A | 3 | 95 | 5782 | 127.83 | 173 | 169 | 43.9 |
| B | 7 | 0 | 126208 | 3259.67 | 170 | 164 | 38.7 |
| B | 5 | 172 | 38868 | 1000.94 | 170 | 164 | 38.7 |
| B | 4 | 81 | 22867 | 587.13 | 170 | 164 | 38.7 |
| C | 15 | 164 | 1390794 | 45894.42 | 106 | 104 | 30.3 |
| C | 4 | 5 | 173454 | 5720.76 | 106 | 104 | 30.3 |
| C | 15 | 165 | 44072 | 1451.0 | 106 | 104 | 30.3 |
| D | 15 | 93 | 1105560 | 32246.83 | 117 | 111 | 34.3 |
| D | 12 | 17 | 664226 | 19372.76 | 117 | 111 | 34.3 |
| D | 11 | 245 | 39386 | 1145.68 | 117 | 111 | 34.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

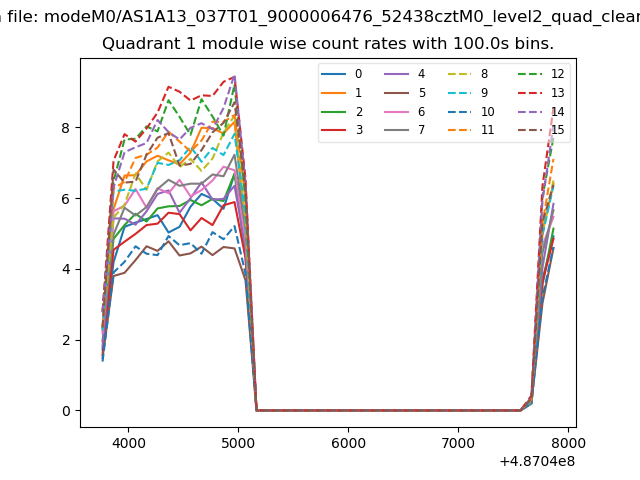

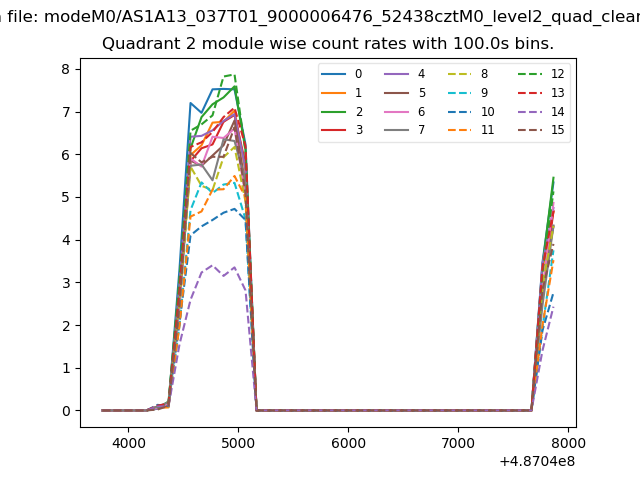

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

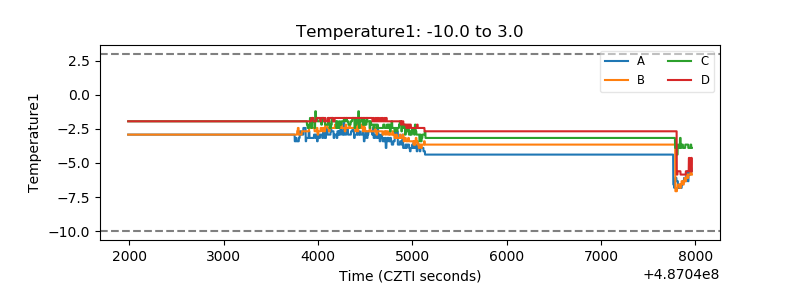

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

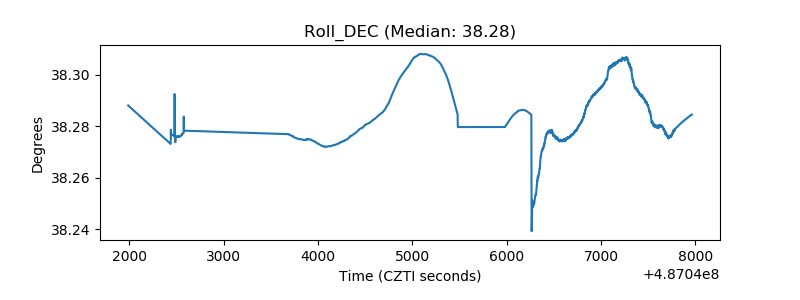

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
