| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52440cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52440cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,670,140,800 | 198,567,360 |
| Size | 1.6 GB | 189.4 MB |
| Events in quadrant A | 6,899,895 | 1,466,811 |
| Events in quadrant B | 9,658,781 | 1,586,632 |
| Events in quadrant C | 17,262,942 | 1,131,350 |
| Events in quadrant D | 26,802,929 | 755,570 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32381 | 3 |
| B | 0 | 39654 | 3 |
| C | 0 | 62372 | 10 |
| D | 0 | 90306 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 316 | 0 |
| B | 0 | 316 | 0 |
| C | 0 | 316 | 0 |
| D | 0 | 316 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15529 | 73 | 0.470088% |
| B | 15530 | 367 | 2.363168% |
| C | 15529 | 3266 | 21.031618% |
| D | 15529 | 6949 | 44.748535% |

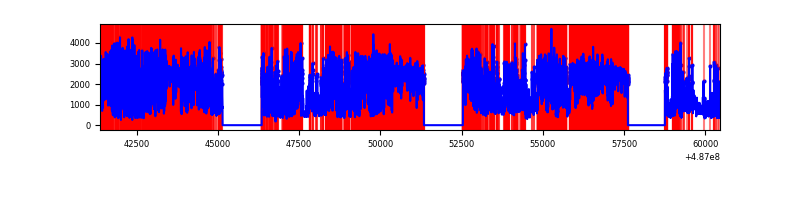

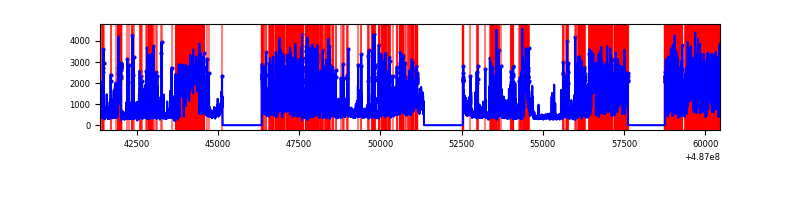

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19074 | 15532 | 36 | 36 | 0.19% | 0.23% |  |
| B | 19075 | 15533 | 200 | 200 | 1.05% | 1.29% |  |
| C | 19075 | 15532 | 2799 | 2799 | 14.67% | 18.02% |  |
| D | 19074 | 15531 | 6762 | 6762 | 35.45% | 43.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 240 | 116282 | 286.74 | 1635 | 1601 | 399.9 |
| A | 8 | 25 | 65690 | 160.25 | 1635 | 1601 | 399.9 |
| A | 12 | 17 | 62840 | 153.12 | 1635 | 1601 | 399.9 |
| B | 7 | 0 | 1162079 | 3372.27 | 1615 | 1559 | 344.1 |
| B | 10 | 254 | 792386 | 2298.01 | 1615 | 1559 | 344.1 |
| B | 4 | 81 | 233395 | 673.68 | 1615 | 1559 | 344.1 |
| C | 15 | 224 | 4182650 | 10796.4 | 1399 | 1390 | 387.3 |
| C | 4 | 5 | 2139693 | 5521.3 | 1399 | 1390 | 387.3 |
| C | 15 | 164 | 1840750 | 4749.4 | 1399 | 1390 | 387.3 |
| D | 12 | 17 | 8316202 | 23939.22 | 1217 | 1162 | 347.3 |
| D | 15 | 93 | 7300776 | 21015.78 | 1217 | 1162 | 347.3 |
| D | 12 | 2 | 2619713 | 7538.88 | 1217 | 1162 | 347.3 |

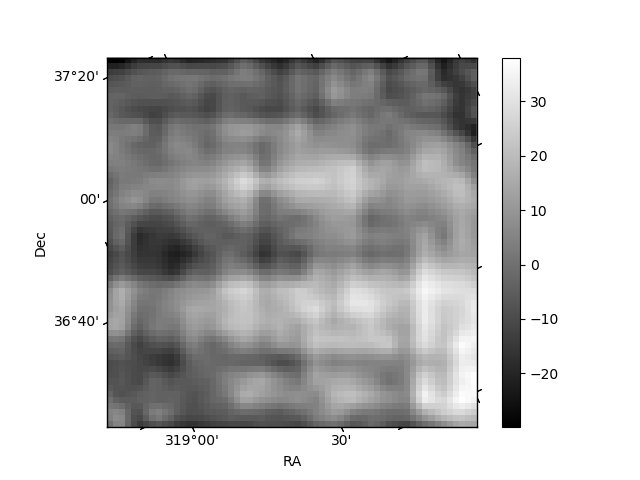

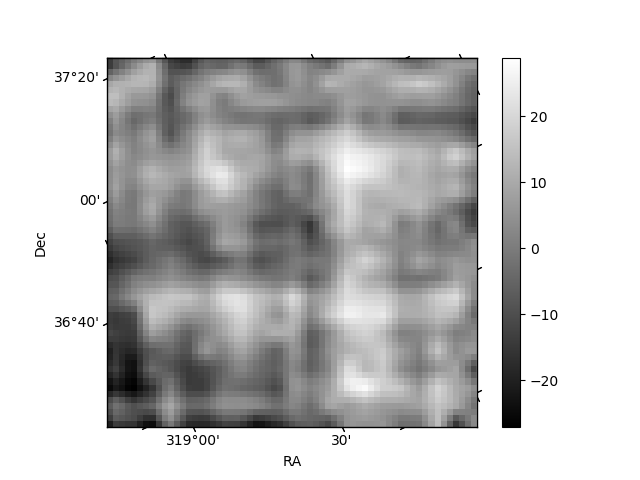

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

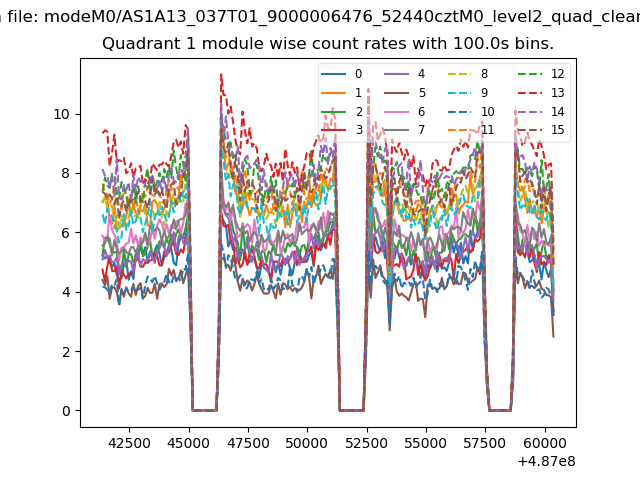

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

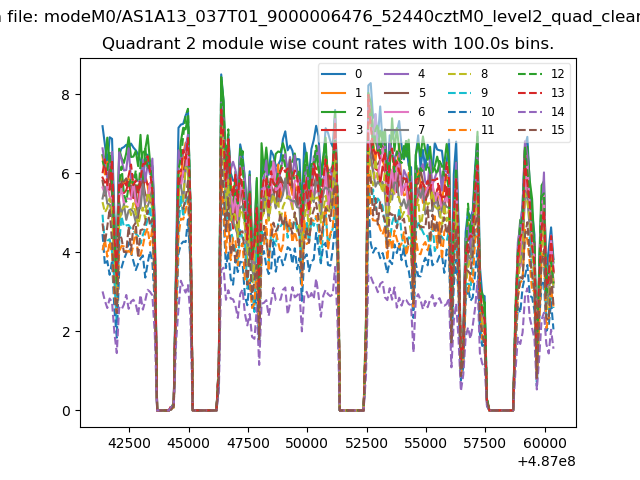

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

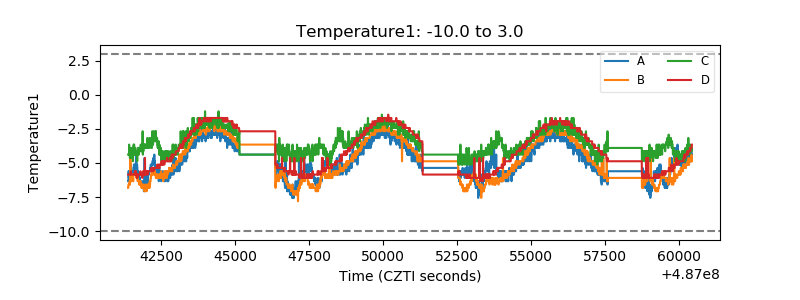

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

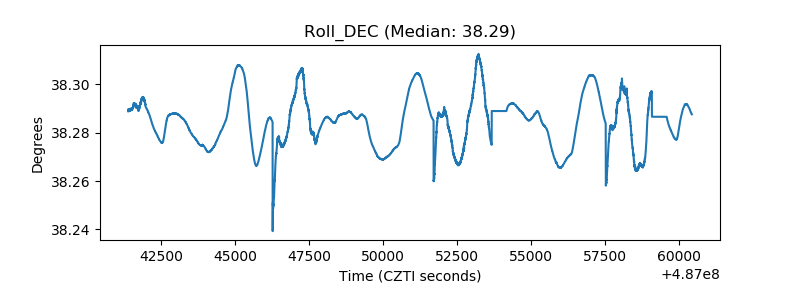

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
