| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52443cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52443cztM0_level2_quad_clean.evt |
| Size (bytes) | 984,493,440 | 88,248,960 |
| Size | 938.9 MB | 84.2 MB |
| Events in quadrant A | 3,444,172 | 705,511 |
| Events in quadrant B | 3,791,372 | 761,215 |
| Events in quadrant C | 14,176,607 | 367,857 |
| Events in quadrant D | 14,436,645 | 302,834 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16175 | 4 |
| B | 0 | 16801 | 0 |
| C | 0 | 47433 | 0 |
| D | 0 | 48209 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7678 | 29 | 0.377703% |
| B | 7679 | 44 | 0.572991% |
| C | 7679 | 3771 | 49.107957% |
| D | 7679 | 4264 | 55.528064% |

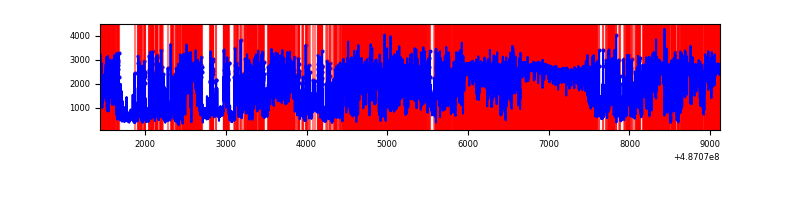

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7678 | 7678 | 16 | 16 | 0.21% | 0.21% |  |
| B | 7679 | 7679 | 13 | 13 | 0.17% | 0.17% |  |
| C | 7678 | 7678 | 3728 | 3728 | 48.55% | 48.55% |  |
| D | 7679 | 7679 | 3800 | 3800 | 49.49% | 49.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 249 | 96949 | 484.88 | 804 | 784 | 198.3 |
| A | 4 | 61 | 52450 | 260.51 | 804 | 784 | 198.3 |
| A | 5 | 240 | 42546 | 210.57 | 804 | 784 | 198.3 |
| B | 10 | 254 | 118417 | 687.98 | 797 | 766 | 171.0 |
| B | 4 | 81 | 110845 | 643.7 | 797 | 766 | 171.0 |
| B | 4 | 170 | 96449 | 559.52 | 797 | 766 | 171.0 |
| C | 15 | 224 | 8505476 | 52522.68 | 589 | 586 | 161.9 |
| C | 15 | 248 | 845059 | 5215.12 | 589 | 586 | 161.9 |
| C | 2 | 12 | 770658 | 4755.65 | 589 | 586 | 161.9 |
| D | 12 | 17 | 4593774 | 30413.28 | 528 | 504 | 151.0 |
| D | 12 | 2 | 3442747 | 22792.02 | 528 | 504 | 151.0 |
| D | 2 | 153 | 1312498 | 8687.07 | 528 | 504 | 151.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

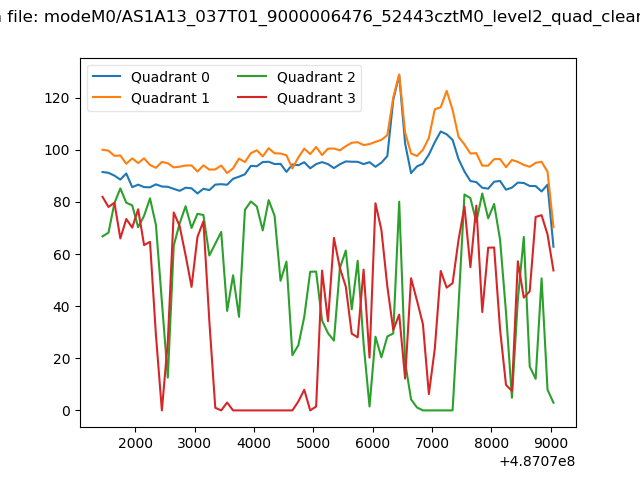

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

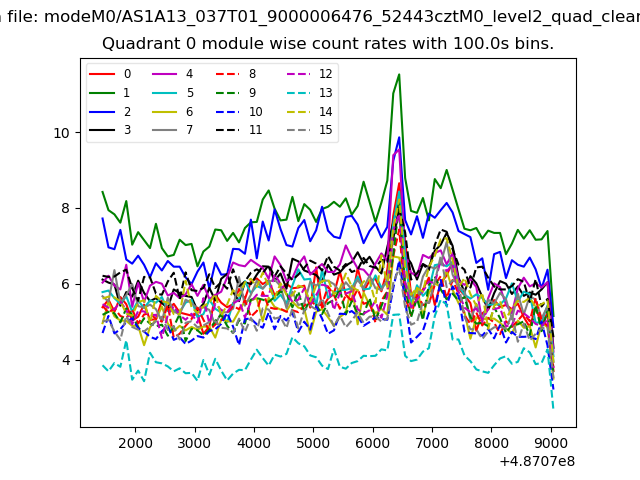

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

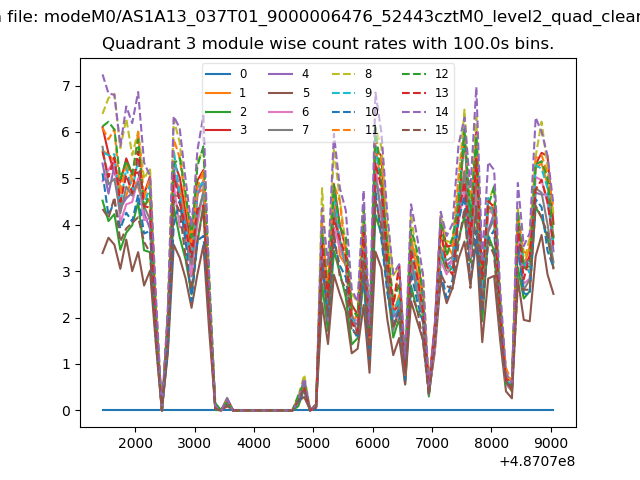

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

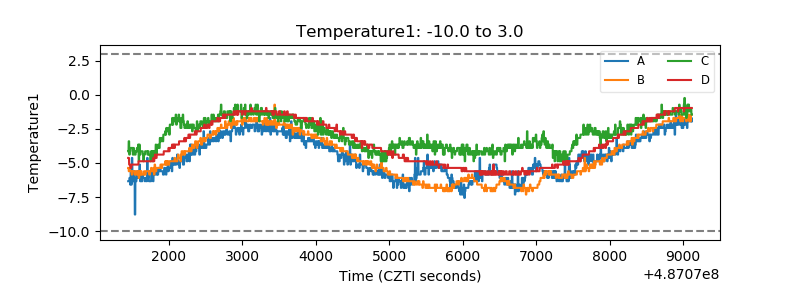

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
