| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52452cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52452cztM0_level2_quad_clean.evt |
| Size (bytes) | 757,762,560 | 85,040,640 |
| Size | 722.7 MB | 81.1 MB |
| Events in quadrant A | 3,045,037 | 645,296 |
| Events in quadrant B | 3,281,287 | 692,012 |
| Events in quadrant C | 10,123,753 | 396,830 |
| Events in quadrant D | 11,099,084 | 389,693 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13873 | 2 |
| B | 0 | 14471 | 2 |
| C | 0 | 34587 | 2 |
| D | 0 | 37523 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6467 | 41 | 0.633988% |
| B | 6468 | 62 | 0.958565% |
| C | 6468 | 2511 | 38.821892% |
| D | 6468 | 2479 | 38.327149% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7627 | 6468 | 17 | 17 | 0.22% | 0.26% |  |
| B | 7628 | 6469 | 20 | 20 | 0.26% | 0.31% |  |
| C | 7628 | 6468 | 2202 | 2202 | 28.87% | 34.04% |  |
| D | 7628 | 6468 | 2685 | 2685 | 35.20% | 41.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 69523 | 403.28 | 688 | 672 | 170.7 |
| A | 10 | 253 | 51803 | 299.49 | 688 | 672 | 170.7 |
| A | 12 | 17 | 48769 | 281.72 | 688 | 672 | 170.7 |
| B | 4 | 81 | 141722 | 957.3 | 686 | 659 | 147.4 |
| B | 0 | 213 | 138241 | 933.68 | 686 | 659 | 147.4 |
| B | 4 | 171 | 58605 | 393.24 | 686 | 659 | 147.4 |
| C | 15 | 224 | 4906987 | 32692.61 | 538 | 533 | 150.1 |
| C | 1 | 45 | 1056169 | 7033.9 | 538 | 533 | 150.1 |
| C | 15 | 248 | 826410 | 5502.97 | 538 | 533 | 150.1 |
| D | 6 | 42 | 5103877 | 31521.76 | 561 | 534 | 161.9 |
| D | 12 | 17 | 1271811 | 7852.28 | 561 | 534 | 161.9 |
| D | 15 | 93 | 875771 | 5406.07 | 561 | 534 | 161.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

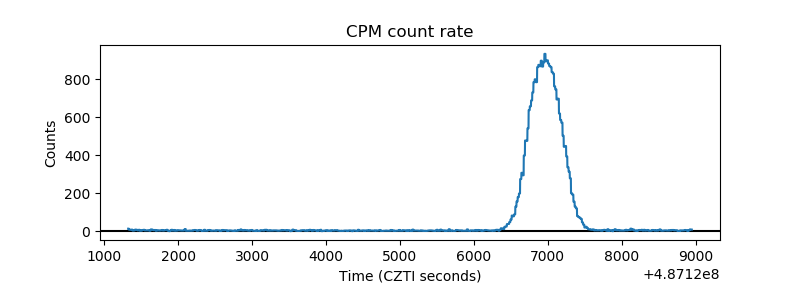

| _CPM_Rate |  |

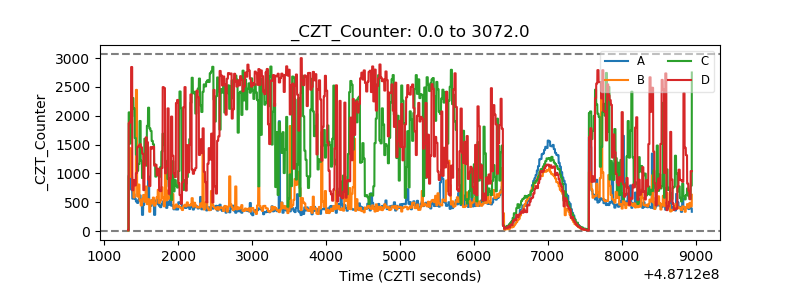

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

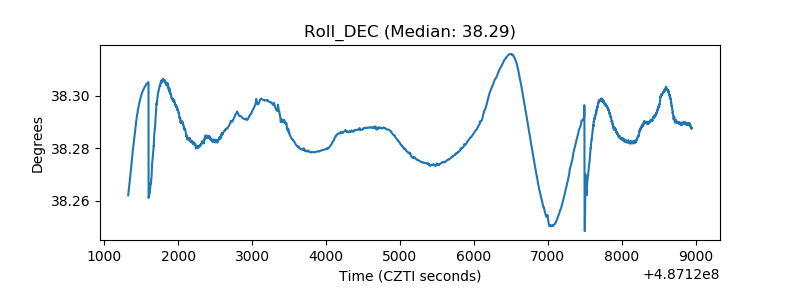

| _Roll_DEC |  |

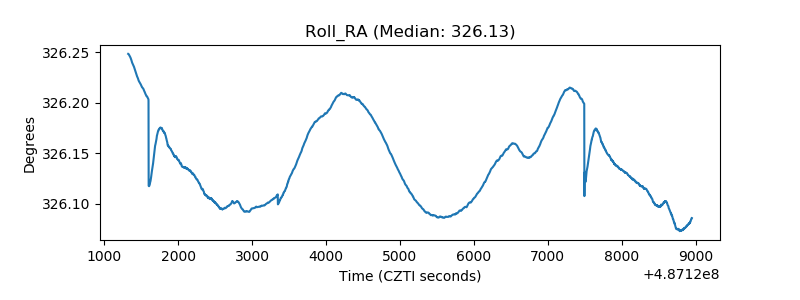

| _Roll_RA |  |

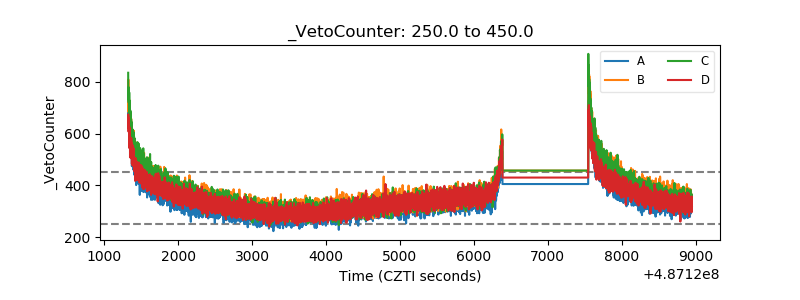

| Veto Counter |  |
