| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52458cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52458cztM0_level2_quad_clean.evt |
| Size (bytes) | 885,407,040 | 83,387,520 |
| Size | 844.4 MB | 79.5 MB |
| Events in quadrant A | 5,656,087 | 601,328 |
| Events in quadrant B | 3,648,820 | 743,483 |
| Events in quadrant C | 4,913,376 | 633,476 |
| Events in quadrant D | 17,988,117 | 36,886 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21886 | 0 |
| B | 0 | 15964 | 0 |
| C | 0 | 19631 | 0 |
| D | 0 | 58420 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7320 | 1068 | 14.590164% |
| B | 7321 | 23 | 0.314165% |
| C | 7321 | 266 | 3.633383% |
| D | 7321 | 6990 | 95.478760% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7319 | 7319 | 885 | 885 | 12.09% | 12.09% |  |
| B | 7320 | 7320 | 9 | 9 | 0.12% | 0.12% |  |
| C | 7320 | 7320 | 260 | 260 | 3.55% | 3.55% |  |
| D | 7320 | 7320 | 6872 | 6872 | 93.88% | 93.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 61 | 2307558 | 12826.62 | 716 | 696 | 179.8 |
| A | 13 | 248 | 273238 | 1515.39 | 716 | 696 | 179.8 |
| A | 8 | 249 | 77197 | 425.36 | 716 | 696 | 179.8 |
| B | 4 | 81 | 310897 | 1863.48 | 772 | 745 | 166.4 |
| B | 4 | 171 | 87978 | 524.12 | 772 | 745 | 166.4 |
| B | 10 | 247 | 36093 | 212.38 | 772 | 745 | 166.4 |
| C | 13 | 3 | 575122 | 2839.85 | 740 | 732 | 202.3 |
| C | 15 | 231 | 544916 | 2690.5 | 740 | 732 | 202.3 |
| C | 2 | 12 | 457251 | 2257.08 | 740 | 732 | 202.3 |
| D | 15 | 93 | 15042004 | 200894.2 | 260 | 249 | 74.9 |
| D | 6 | 42 | 1434552 | 19156.22 | 260 | 249 | 74.9 |
| D | 2 | 136 | 196966 | 2627.31 | 260 | 249 | 74.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

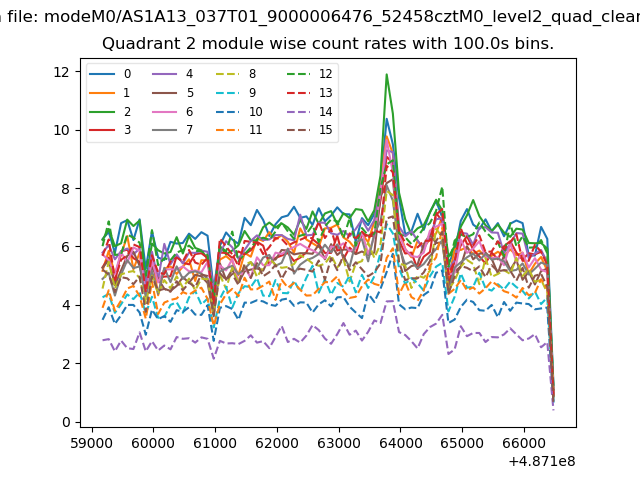

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

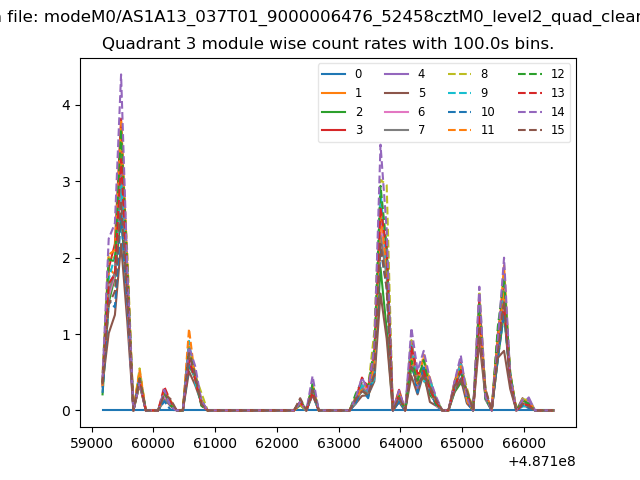

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

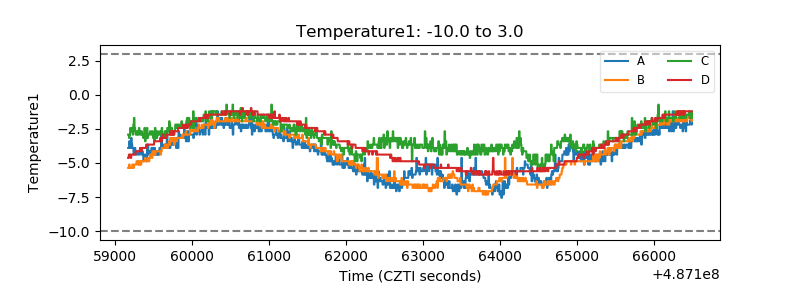

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

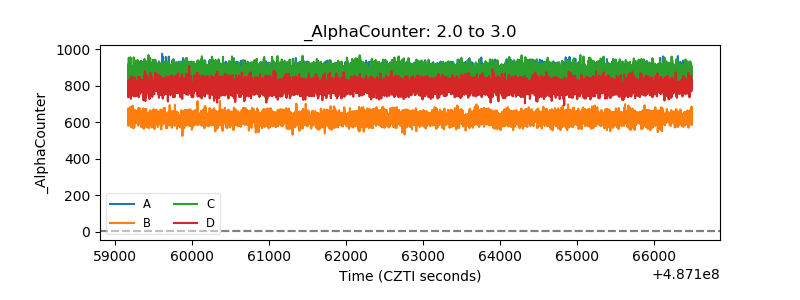

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

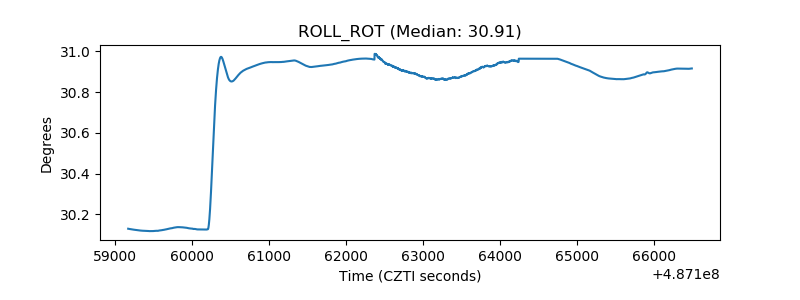

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
