| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52477cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52477cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,999,240,640 | 165,709,440 |
| Size | 2.8 GB | 158.0 MB |
| Events in quadrant A | 12,766,773 | 1,548,226 |
| Events in quadrant B | 17,181,282 | 1,703,280 |
| Events in quadrant C | 34,576,955 | 507,340 |
| Events in quadrant D | 45,094,437 | 1,085 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50681 | 3 |
| B | 0 | 63565 | 3 |
| C | 0 | 115168 | 3 |
| D | 0 | 146403 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 370 | 0 |
| B | 0 | 370 | 0 |
| C | 0 | 370 | 0 |
| D | 0 | 370 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18223 | 1474 | 8.088679% |
| B | 18224 | 1753 | 9.619183% |
| C | 18224 | 13112 | 71.949078% |
| D | 18223 | 18215 | 99.956099% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19733 | 18226 | 960 | 960 | 4.86% | 5.27% |  |
| B | 19734 | 18227 | 1101 | 1101 | 5.58% | 6.04% |  |
| C | 19734 | 18226 | 8968 | 8968 | 45.44% | 49.20% |  |
| D | 19732 | 18219 | 17091 | 17091 | 86.62% | 93.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1993245 | 4250.16 | 1909 | 1861 | 468.5 |
| A | 4 | 61 | 897337 | 1911.19 | 1909 | 1861 | 468.5 |
| A | 10 | 16 | 503937 | 1071.57 | 1909 | 1861 | 468.5 |
| B | 10 | 254 | 5850292 | 14235.14 | 1908 | 1832 | 410.8 |
| B | 10 | 44 | 1091391 | 2651.98 | 1908 | 1832 | 410.8 |
| B | 4 | 171 | 832788 | 2022.54 | 1908 | 1832 | 410.8 |
| C | 15 | 224 | 19404745 | 63696.14 | 1108 | 1099 | 304.6 |
| C | 15 | 158 | 7508617 | 24644.85 | 1108 | 1099 | 304.6 |
| C | 5 | 80 | 613490 | 2010.29 | 1108 | 1099 | 304.6 |
| D | 15 | 93 | 39154520 | 333642.28 | 403 | 383 | 117.4 |
| D | 6 | 42 | 3108610 | 26485.99 | 403 | 383 | 117.4 |
| D | 8 | 176 | 316821 | 2696.45 | 403 | 383 | 117.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

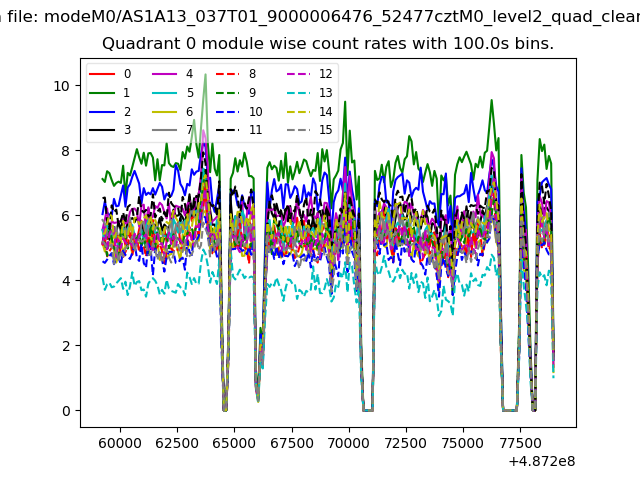

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

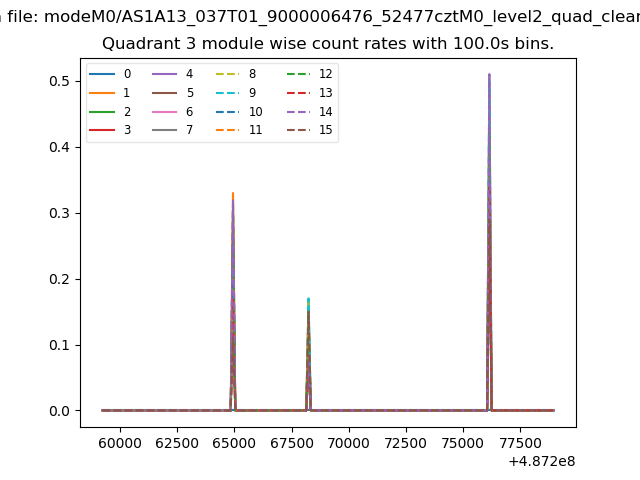

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

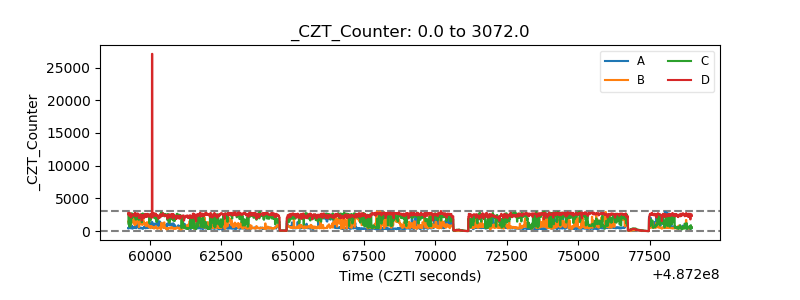

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

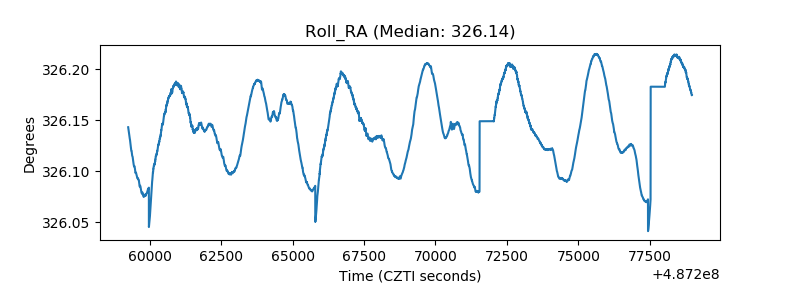

| _Roll_RA |  |
| Veto Counter |  |
