| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52484cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52484cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,623,040 | 37,198,080 |
| Size | 424.0 MB | 35.5 MB |
| Events in quadrant A | 1,700,276 | 302,101 |
| Events in quadrant B | 3,676,234 | 313,574 |
| Events in quadrant C | 2,348,852 | 275,484 |
| Events in quadrant D | 8,478,638 | 3,571 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7677 | 302 |
| B | 0 | 13420 | 266 |
| C | 0 | 10095 | 711 |
| D | 0 | 28926 | 1479 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 2 |
| B | 0 | 68 | 4 |
| C | 0 | 68 | 2 |
| D | 0 | 66 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3280 | 38 | 1.158537% |
| B | 3277 | 309 | 9.429356% |
| C | 3261 | 194 | 5.949095% |
| D | 3225 | 3195 | 99.069767% |

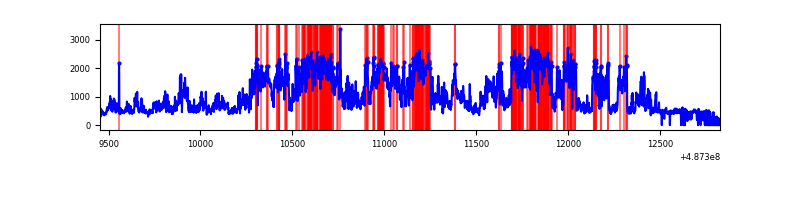

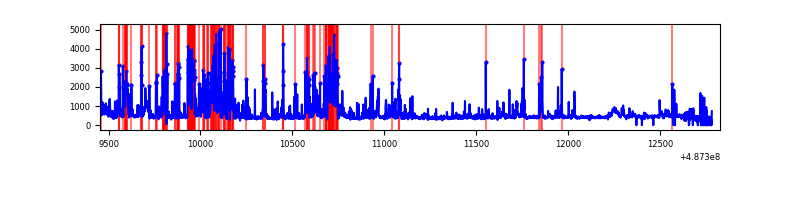

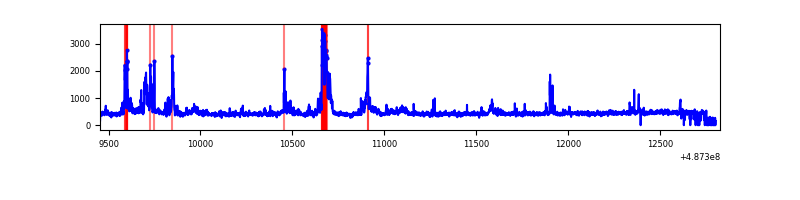

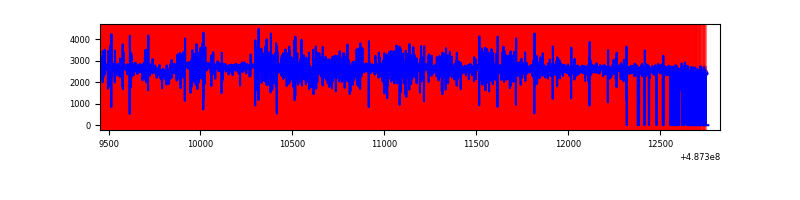

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3348 | 3309 | 39 | 39 | 1.16% | 1.18% |  |
| B | 3370 | 3317 | 358 | 358 | 10.62% | 10.79% |  |
| C | 3328 | 3292 | 184 | 184 | 5.53% | 5.59% |  |
| D | 3309 | 3225 | 3093 | 3093 | 93.47% | 95.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 26 | 305770 | 3677.71 | 330 | 322 | 83.1 |
| A | 11 | 3 | 65852 | 789.01 | 330 | 322 | 83.1 |
| A | 7 | 206 | 13591 | 159.76 | 330 | 322 | 83.1 |
| B | 10 | 254 | 2318163 | 32897.22 | 322 | 311 | 70.5 |
| B | 4 | 81 | 30733 | 431.78 | 322 | 311 | 70.5 |
| B | 0 | 171 | 14565 | 202.31 | 322 | 311 | 70.5 |
| C | 2 | 12 | 664558 | 7853.9 | 306 | 304 | 84.6 |
| C | 4 | 5 | 173176 | 2043.98 | 306 | 304 | 84.6 |
| C | 15 | 224 | 125182 | 1476.51 | 306 | 304 | 84.6 |
| D | 15 | 93 | 7551598 | 218190.22 | 115 | 109 | 34.6 |
| D | 6 | 42 | 412339 | 11910.84 | 115 | 109 | 34.6 |
| D | 2 | 252 | 11733 | 335.86 | 115 | 109 | 34.6 |

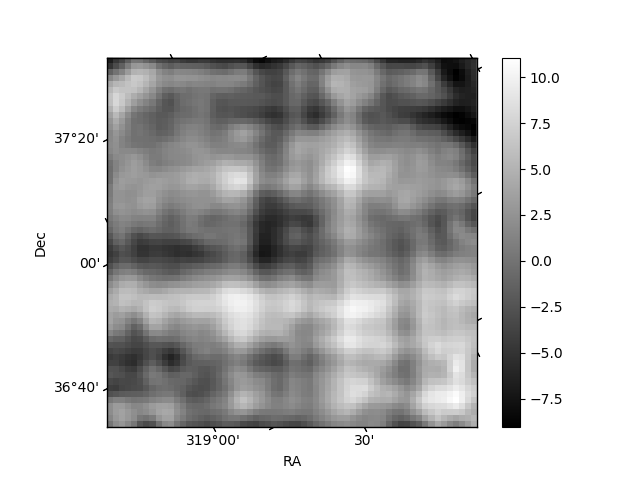

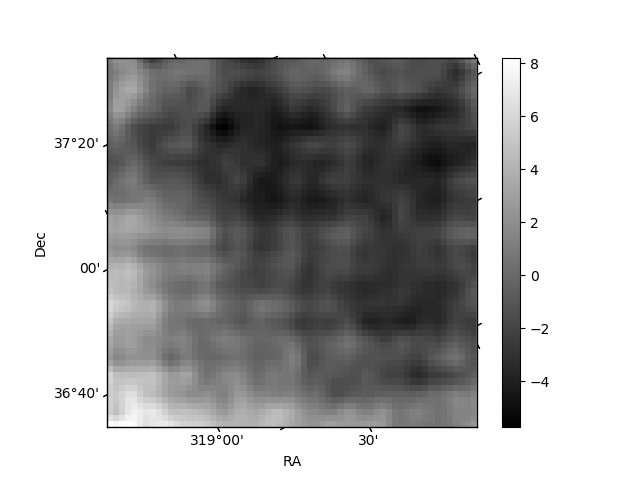

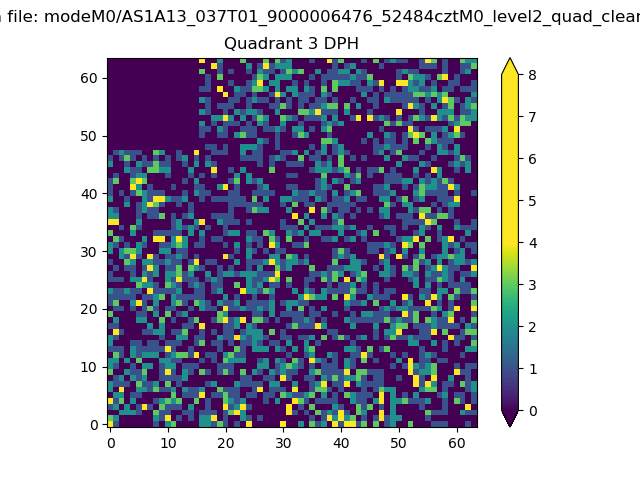

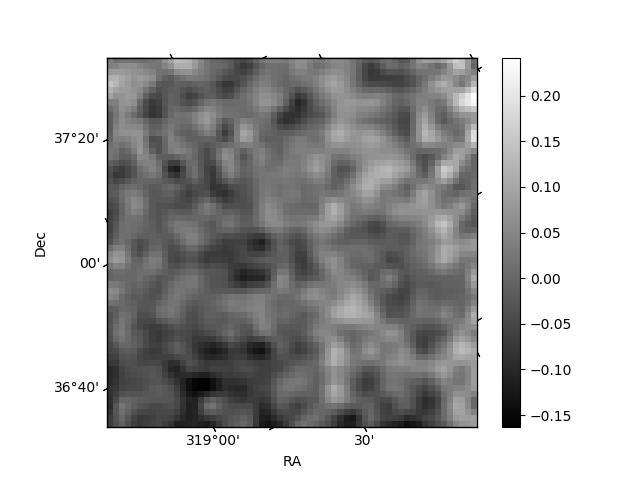

Histogram calculated using DETX and DETY for each event in the final _common_clean file

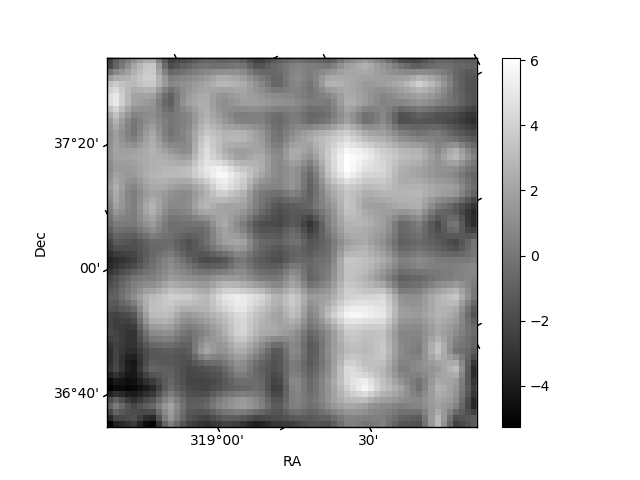

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

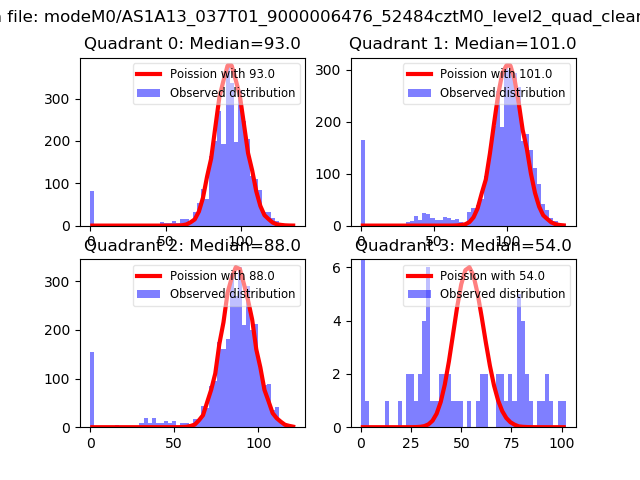

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

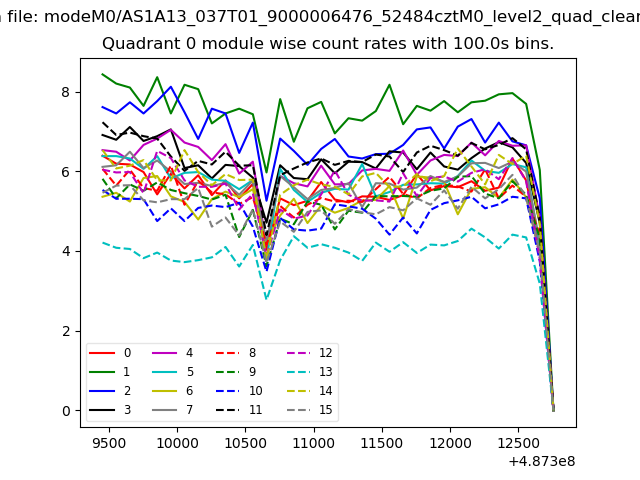

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

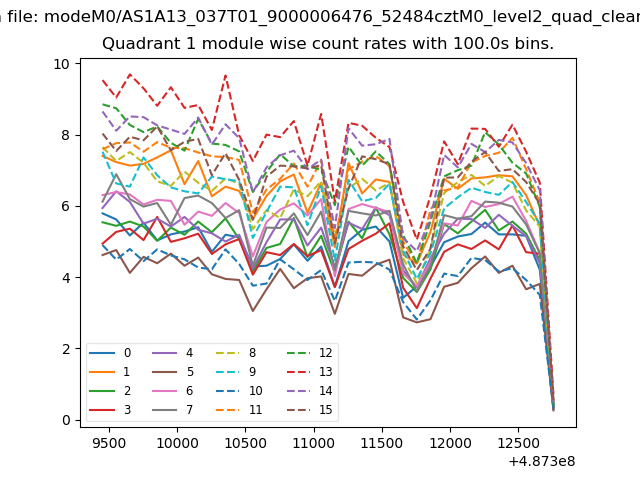

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

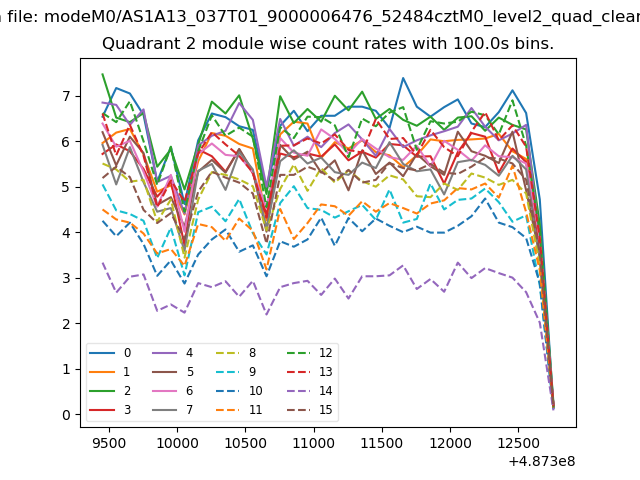

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

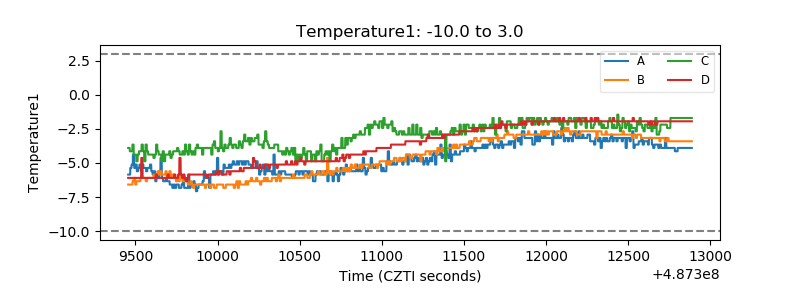

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

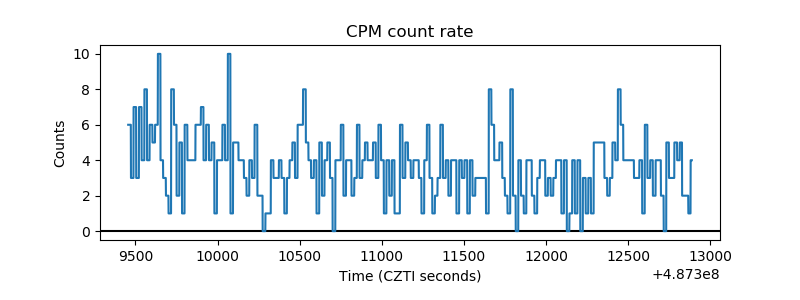

| _CPM_Rate |  |

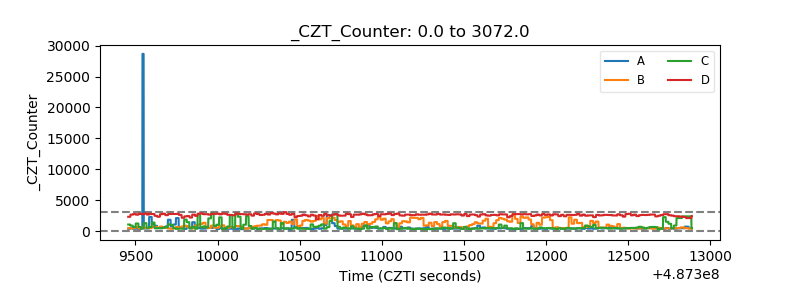

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

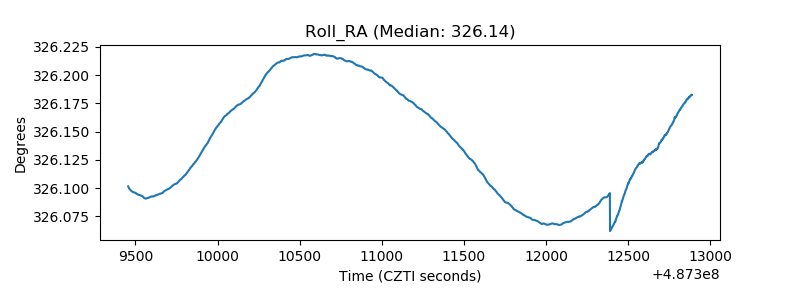

| _Roll_RA |  |
| Veto Counter |  |
