| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52494cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52494cztM0_level2_quad_clean.evt |
| Size (bytes) | 897,929,280 | 73,918,080 |
| Size | 856.3 MB | 70.5 MB |
| Events in quadrant A | 2,880,531 | 678,100 |
| Events in quadrant B | 6,661,523 | 543,695 |
| Events in quadrant C | 8,884,686 | 431,993 |
| Events in quadrant D | 14,335,197 | 153,777 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13119 | 2 |
| B | 0 | 23964 | 1 |
| C | 0 | 30669 | 1 |
| D | 0 | 46824 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6163 | 33 | 0.535454% |
| B | 6163 | 1394 | 22.618854% |
| C | 6163 | 1930 | 31.315918% |
| D | 6163 | 4673 | 75.823463% |

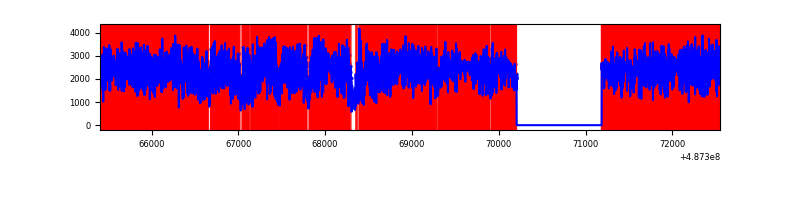

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7143 | 6164 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7143 | 6164 | 1231 | 1231 | 17.23% | 19.97% |  |
| C | 7143 | 6164 | 1848 | 1848 | 25.87% | 29.98% |  |
| D | 7142 | 6162 | 4609 | 4609 | 64.53% | 74.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 51463 | 288.03 | 689 | 672 | 176.3 |
| A | 13 | 248 | 24314 | 134.07 | 689 | 672 | 176.3 |
| A | 4 | 3 | 19224 | 105.21 | 689 | 672 | 176.3 |
| B | 10 | 44 | 3856995 | 29981.66 | 591 | 572 | 128.6 |
| B | 4 | 81 | 171482 | 1328.74 | 591 | 572 | 128.6 |
| B | 0 | 213 | 59883 | 461.11 | 591 | 572 | 128.6 |
| C | 15 | 224 | 4730008 | 30631.55 | 542 | 538 | 154.4 |
| C | 15 | 248 | 990616 | 6412.48 | 542 | 538 | 154.4 |
| C | 2 | 12 | 627568 | 4061.11 | 542 | 538 | 154.4 |
| D | 15 | 93 | 8545613 | 64491.21 | 450 | 430 | 132.5 |
| D | 6 | 42 | 2160901 | 16305.26 | 450 | 430 | 132.5 |
| D | 8 | 176 | 756062 | 5702.82 | 450 | 430 | 132.5 |

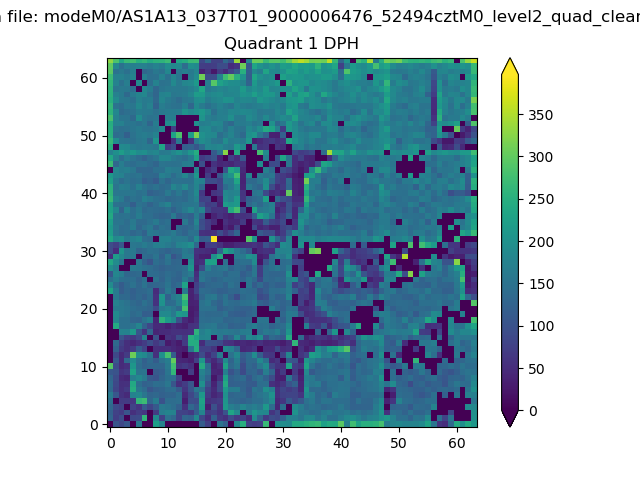

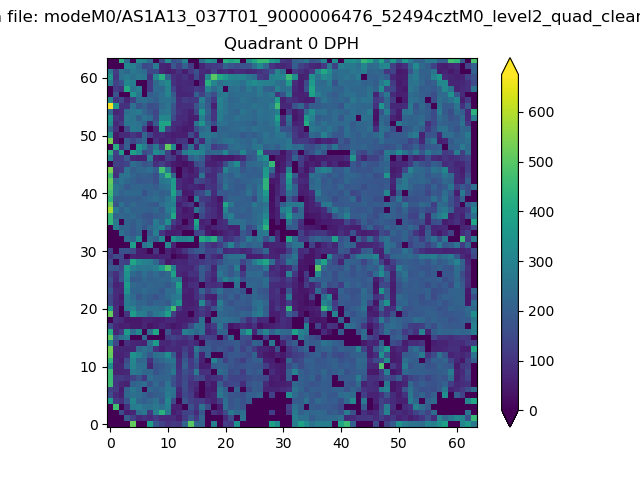

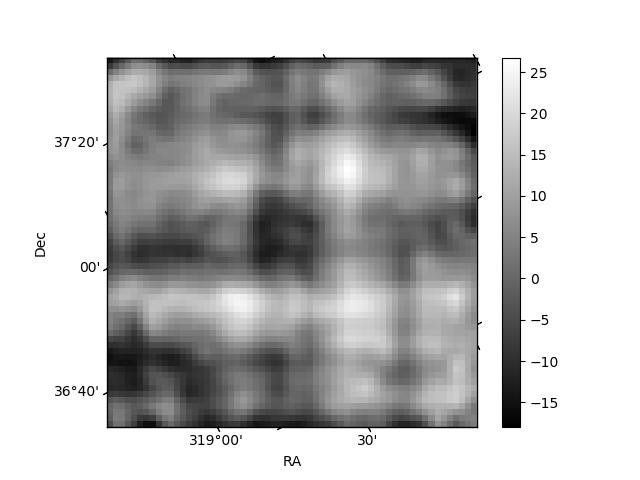

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

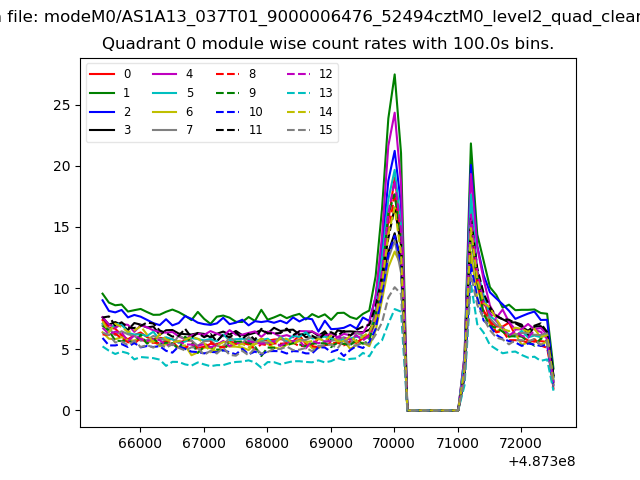

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

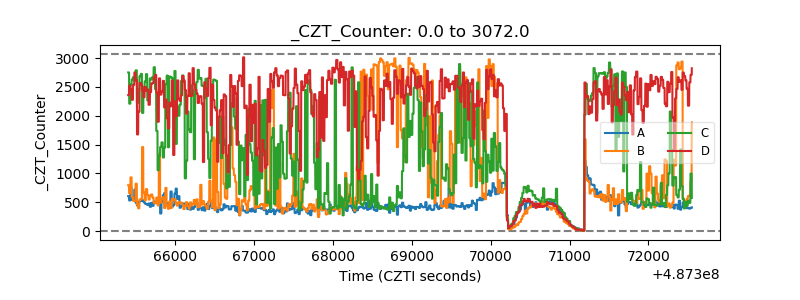

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

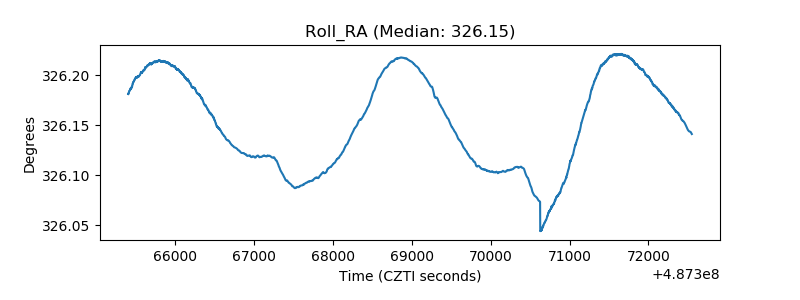

| _Roll_RA |  |
| Veto Counter |  |
