| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52501cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52501cztM0_level2_quad_clean.evt |
| Size (bytes) | 747,279,360 | 103,939,200 |
| Size | 712.7 MB | 99.1 MB |
| Events in quadrant A | 3,727,301 | 714,044 |
| Events in quadrant B | 8,822,890 | 676,134 |
| Events in quadrant C | 7,234,994 | 628,055 |
| Events in quadrant D | 7,291,088 | 601,860 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16529 | 0 |
| B | 0 | 31459 | 0 |
| C | 0 | 26731 | 0 |
| D | 0 | 26935 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7577 | 97 | 1.280190% |
| B | 7577 | 1320 | 17.421143% |
| C | 7578 | 808 | 10.662444% |
| D | 7578 | 516 | 6.809184% |

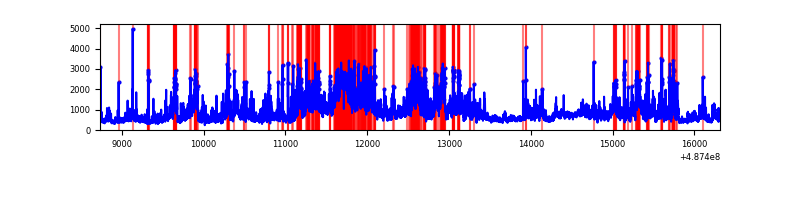

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7577 | 7577 | 42 | 42 | 0.55% | 0.55% |  |
| B | 7577 | 7577 | 1089 | 1089 | 14.37% | 14.37% |  |
| C | 7578 | 7578 | 734 | 734 | 9.69% | 9.69% |  |
| D | 7578 | 7578 | 543 | 543 | 7.17% | 7.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 153316 | 770.66 | 807 | 788 | 197.9 |
| A | 3 | 46 | 118636 | 595.43 | 807 | 788 | 197.9 |
| A | 15 | 174 | 88738 | 444.37 | 807 | 788 | 197.9 |
| B | 10 | 254 | 3136341 | 19049.1 | 761 | 734 | 164.6 |
| B | 10 | 44 | 2236279 | 13581.14 | 761 | 734 | 164.6 |
| B | 7 | 0 | 183810 | 1112.2 | 761 | 734 | 164.6 |
| C | 15 | 224 | 1955705 | 9536.06 | 749 | 744 | 205.0 |
| C | 13 | 3 | 551675 | 2687.37 | 749 | 744 | 205.0 |
| C | 2 | 12 | 331390 | 1612.85 | 749 | 744 | 205.0 |
| D | 15 | 93 | 3084662 | 14497.56 | 760 | 728 | 212.7 |
| D | 7 | 96 | 283604 | 1329.8 | 760 | 728 | 212.7 |
| D | 8 | 176 | 226491 | 1061.31 | 760 | 728 | 212.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

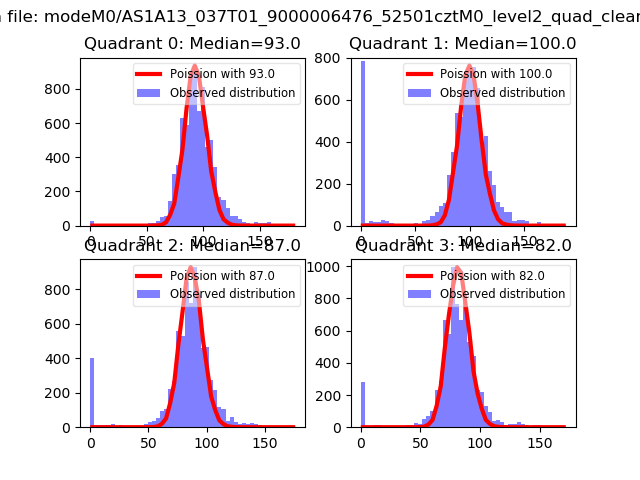

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

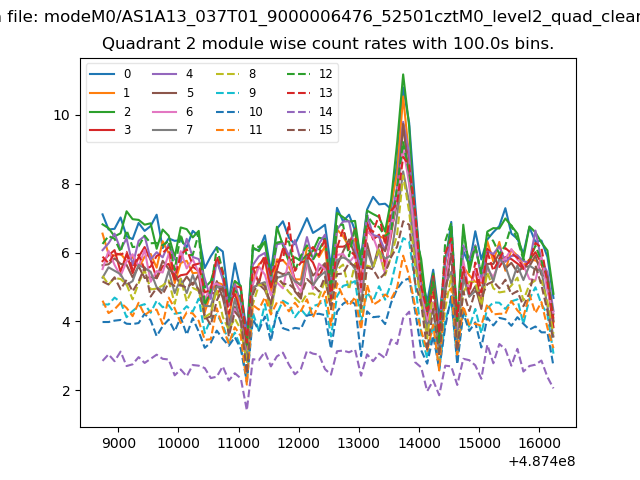

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

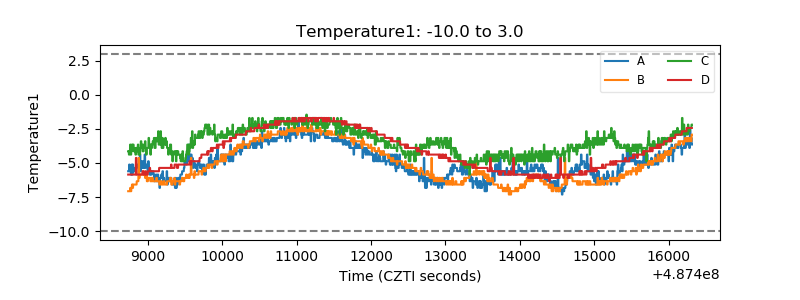

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

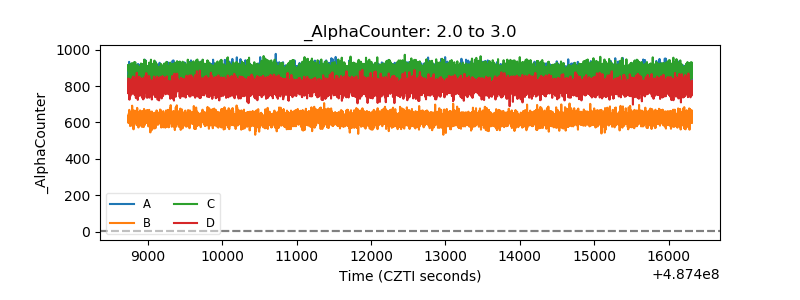

| Alpha Counter |  |

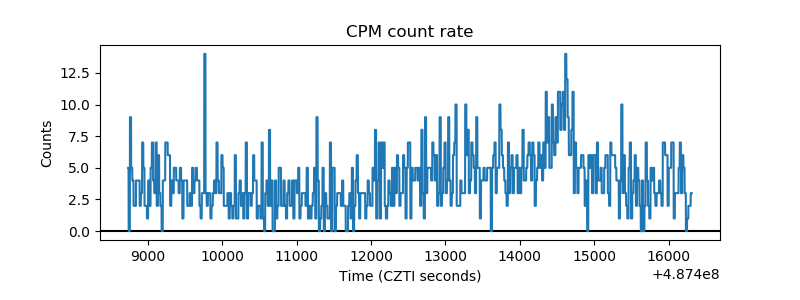

| _CPM_Rate |  |

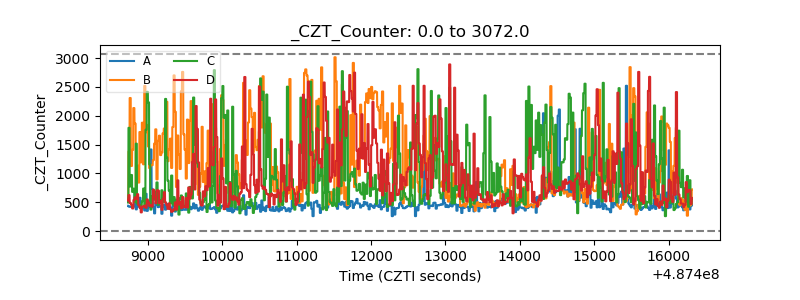

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

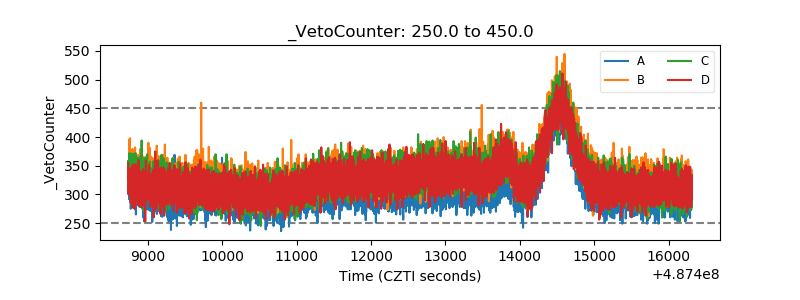

| Veto Counter |  |
