| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006476_52502cztM0_level2.fits | modeM0/AS1A13_037T01_9000006476_52502cztM0_level2_quad_clean.evt |
| Size (bytes) | 782,277,120 | 91,828,800 |
| Size | 746.0 MB | 87.6 MB |
| Events in quadrant A | 3,441,552 | 676,292 |
| Events in quadrant B | 10,670,755 | 471,550 |
| Events in quadrant C | 6,553,662 | 588,138 |
| Events in quadrant D | 7,729,368 | 538,236 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15303 | 1 |
| B | 0 | 36602 | 0 |
| C | 0 | 24520 | 0 |
| D | 0 | 28050 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7262 | 26 | 0.358028% |
| B | 7263 | 2739 | 37.711689% |
| C | 7263 | 762 | 10.491532% |
| D | 7263 | 921 | 12.680710% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7262 | 7262 | 11 | 11 | 0.15% | 0.15% |  |
| B | 7263 | 7263 | 2483 | 2483 | 34.19% | 34.19% |  |
| C | 7263 | 7263 | 708 | 708 | 9.75% | 9.75% |  |
| D | 7262 | 7262 | 917 | 917 | 12.63% | 12.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 114799 | 601.39 | 767 | 747 | 189.6 |
| A | 8 | 9 | 92644 | 484.56 | 767 | 747 | 189.6 |
| A | 3 | 46 | 75152 | 392.33 | 767 | 747 | 189.6 |
| B | 10 | 44 | 5037847 | 39573.62 | 594 | 572 | 127.3 |
| B | 10 | 254 | 1853558 | 14557.35 | 594 | 572 | 127.3 |
| B | 7 | 0 | 883621 | 6937.37 | 594 | 572 | 127.3 |
| C | 15 | 224 | 2448050 | 12687.57 | 708 | 702 | 192.9 |
| C | 13 | 3 | 330976 | 1712.21 | 708 | 702 | 192.9 |
| C | 1 | 93 | 317897 | 1644.4 | 708 | 702 | 192.9 |
| D | 15 | 93 | 2224428 | 11354.89 | 699 | 668 | 195.8 |
| D | 6 | 42 | 1496726 | 7639.12 | 699 | 668 | 195.8 |
| D | 7 | 96 | 612052 | 3121.83 | 699 | 668 | 195.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

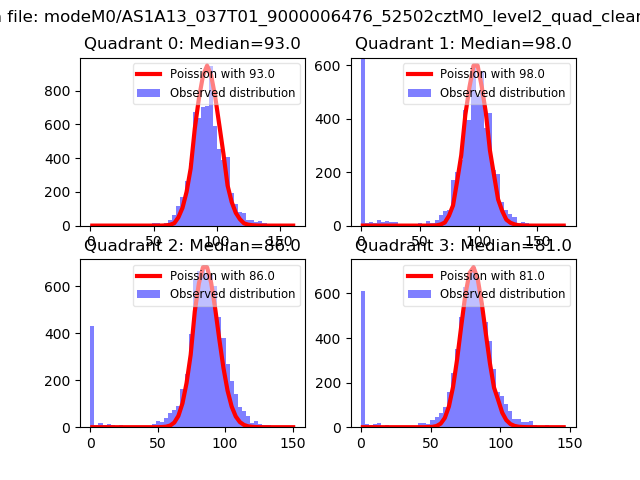

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

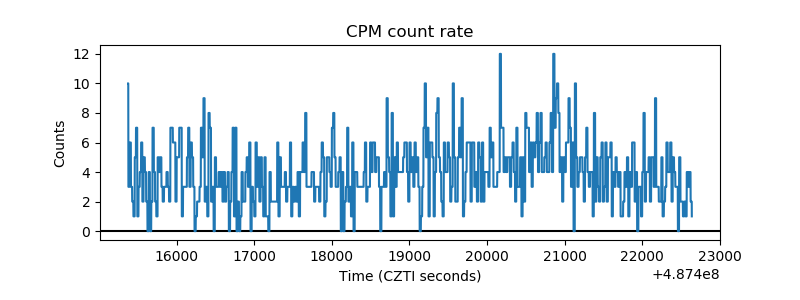

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

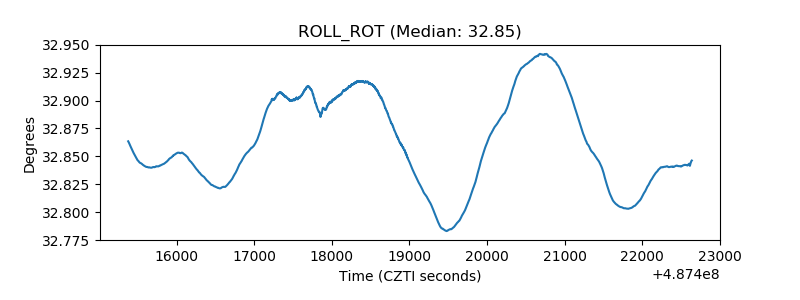

| _ROLL_ROT |  |

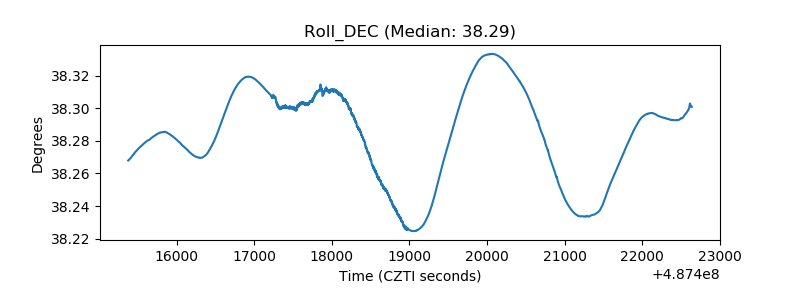

| _Roll_DEC |  |

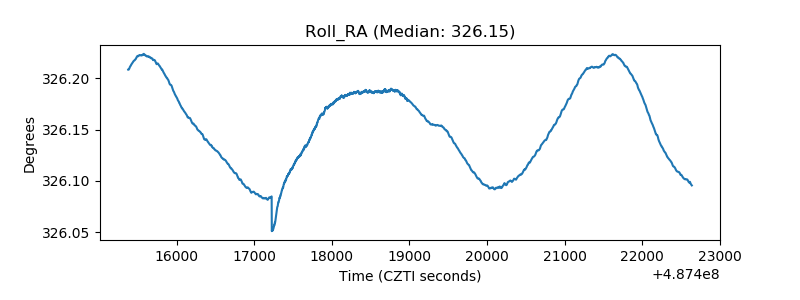

| _Roll_RA |  |
| Veto Counter |  |
