| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52528cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52528cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,891,200 | 80,919,360 |
| Size | 565.4 MB | 77.2 MB |
| Events in quadrant A | 2,894,438 | 571,647 |
| Events in quadrant B | 4,838,640 | 582,525 |
| Events in quadrant C | 4,199,653 | 538,537 |
| Events in quadrant D | 9,539,217 | 329,781 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13437 | 1 |
| B | 0 | 18653 | 1 |
| C | 0 | 16873 | 1 |
| D | 0 | 32626 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6117 | 94 | 1.536701% |
| B | 6118 | 521 | 8.515855% |
| C | 6118 | 220 | 3.595946% |
| D | 6118 | 2388 | 39.032364% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7072 | 6118 | 60 | 60 | 0.85% | 0.98% |  |
| B | 7073 | 6119 | 335 | 335 | 4.74% | 5.47% |  |
| C | 7073 | 6119 | 206 | 206 | 2.91% | 3.37% |  |
| D | 7073 | 6119 | 2237 | 2237 | 31.63% | 36.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 243 | 251073 | 1608.93 | 625 | 611 | 155.7 |
| A | 15 | 174 | 65364 | 415.96 | 625 | 611 | 155.7 |
| A | 5 | 240 | 46049 | 291.89 | 625 | 611 | 155.7 |
| B | 12 | 32 | 1208320 | 9364.06 | 605 | 584 | 129.0 |
| B | 10 | 254 | 756302 | 5859.38 | 605 | 584 | 129.0 |
| B | 10 | 128 | 122009 | 941.45 | 605 | 584 | 129.0 |
| C | 15 | 224 | 553195 | 3319.41 | 596 | 589 | 166.5 |
| C | 2 | 12 | 354958 | 2128.63 | 596 | 589 | 166.5 |
| C | 13 | 3 | 273576 | 1639.79 | 596 | 589 | 166.5 |
| D | 6 | 42 | 3287161 | 23181.28 | 485 | 459 | 141.8 |
| D | 15 | 93 | 3045693 | 21478.19 | 485 | 459 | 141.8 |
| D | 11 | 176 | 221038 | 1555.76 | 485 | 459 | 141.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

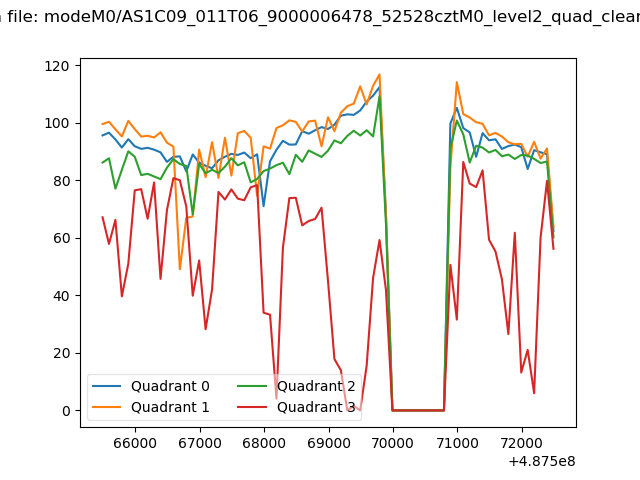

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

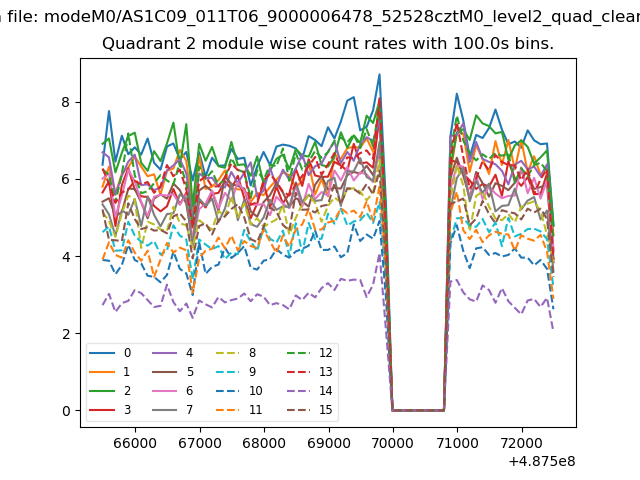

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

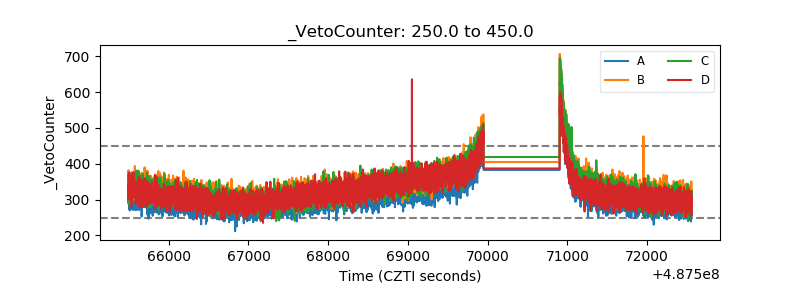

| Veto Counter |  |
