| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52532cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52532cztM0_level2_quad_clean.evt |
| Size (bytes) | 700,980,480 | 94,631,040 |
| Size | 668.5 MB | 90.2 MB |
| Events in quadrant A | 3,733,897 | 656,655 |
| Events in quadrant B | 6,548,929 | 631,227 |
| Events in quadrant C | 4,539,560 | 613,522 |
| Events in quadrant D | 10,577,846 | 471,115 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16172 | 0 |
| B | 0 | 24215 | 0 |
| C | 0 | 18644 | 0 |
| D | 0 | 36391 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7072 | 134 | 1.894796% |
| B | 7073 | 1071 | 15.142090% |
| C | 7073 | 249 | 3.520430% |
| D | 7072 | 1832 | 25.904977% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7072 | 7072 | 114 | 114 | 1.61% | 1.61% |  |
| B | 7073 | 7073 | 696 | 696 | 9.84% | 9.84% |  |
| C | 7073 | 7073 | 228 | 228 | 3.22% | 3.22% |  |
| D | 7072 | 7072 | 1767 | 1767 | 24.99% | 24.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 249 | 338507 | 1832.29 | 740 | 722 | 184.4 |
| A | 5 | 243 | 122079 | 658.29 | 740 | 722 | 184.4 |
| A | 5 | 240 | 82579 | 444.03 | 740 | 722 | 184.4 |
| B | 12 | 32 | 3019482 | 20505.35 | 687 | 665 | 147.2 |
| B | 10 | 254 | 238030 | 1612.3 | 687 | 665 | 147.2 |
| B | 4 | 21 | 223788 | 1515.57 | 687 | 665 | 147.2 |
| C | 2 | 12 | 378589 | 1925.0 | 707 | 700 | 196.3 |
| C | 4 | 5 | 337893 | 1717.69 | 707 | 700 | 196.3 |
| C | 7 | 80 | 249259 | 1266.18 | 707 | 700 | 196.3 |
| D | 6 | 42 | 2118569 | 11755.8 | 636 | 609 | 180.2 |
| D | 8 | 176 | 1193771 | 6622.68 | 636 | 609 | 180.2 |
| D | 7 | 126 | 1143847 | 6345.58 | 636 | 609 | 180.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

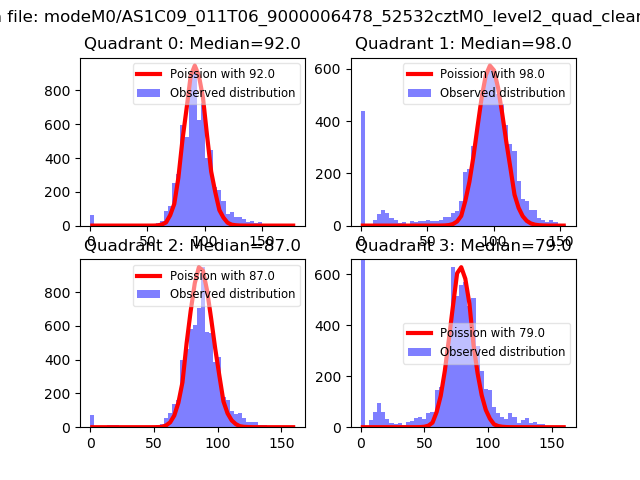

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

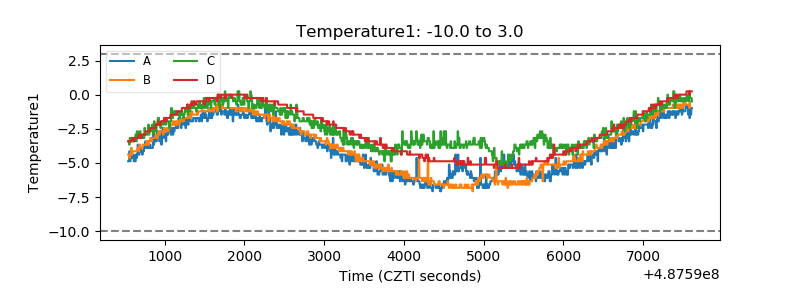

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

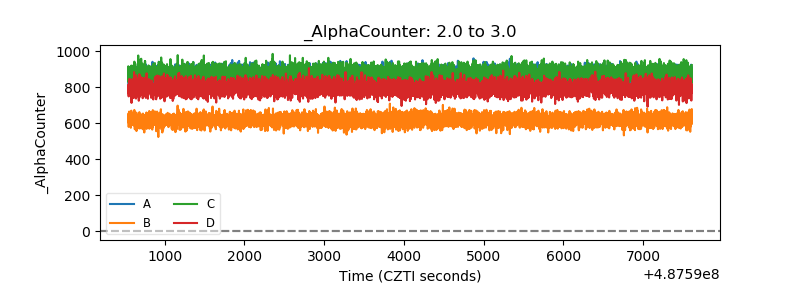

| Alpha Counter |  |

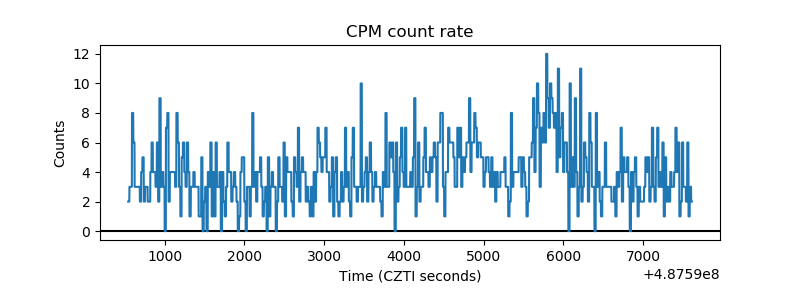

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

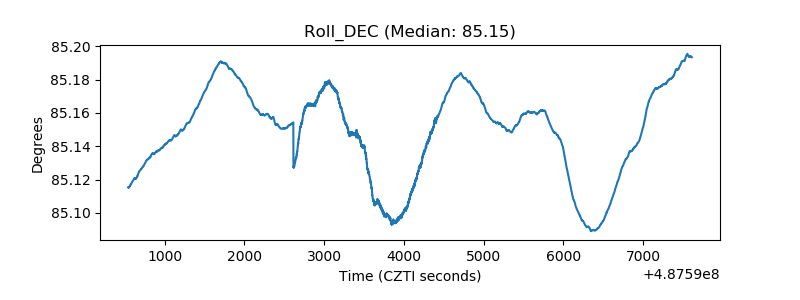

| _Roll_DEC |  |

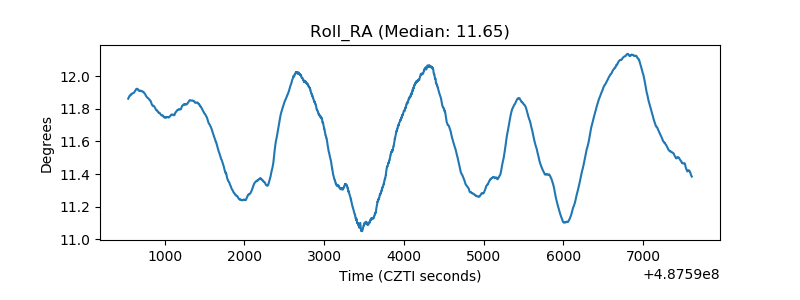

| _Roll_RA |  |
| Veto Counter |  |
