| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52536cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52536cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,505,920 | 84,067,200 |
| Size | 675.7 MB | 80.2 MB |
| Events in quadrant A | 3,233,574 | 639,151 |
| Events in quadrant B | 4,337,242 | 628,492 |
| Events in quadrant C | 6,445,006 | 508,684 |
| Events in quadrant D | 11,714,059 | 321,644 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14371 | 1 |
| B | 0 | 17166 | 1 |
| C | 0 | 23637 | 1 |
| D | 0 | 39262 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6408 | 67 | 1.045568% |
| B | 6409 | 407 | 6.350445% |
| C | 6409 | 1039 | 16.211577% |
| D | 6409 | 3196 | 49.867374% |

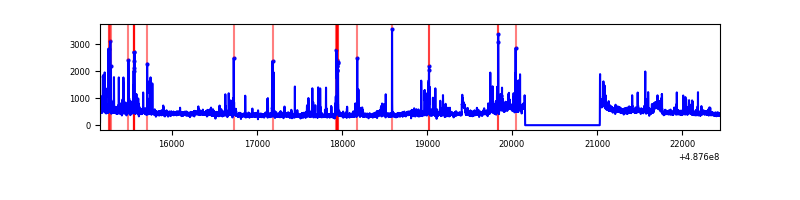

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7288 | 6409 | 30 | 30 | 0.41% | 0.47% |  |
| B | 7289 | 6410 | 264 | 264 | 3.62% | 4.12% |  |
| C | 7289 | 6410 | 765 | 765 | 10.50% | 11.93% |  |
| D | 7289 | 6410 | 2838 | 2838 | 38.94% | 44.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 46 | 90250 | 517.73 | 683 | 667 | 173.0 |
| A | 15 | 174 | 88549 | 507.9 | 683 | 667 | 173.0 |
| A | 5 | 243 | 66249 | 379.02 | 683 | 667 | 173.0 |
| B | 10 | 44 | 726392 | 5183.26 | 653 | 630 | 140.0 |
| B | 4 | 216 | 233030 | 1659.76 | 653 | 630 | 140.0 |
| B | 4 | 21 | 145530 | 1034.85 | 653 | 630 | 140.0 |
| C | 12 | 254 | 1711222 | 9902.83 | 615 | 607 | 172.7 |
| C | 15 | 224 | 705260 | 4079.27 | 615 | 607 | 172.7 |
| C | 15 | 248 | 574038 | 3319.62 | 615 | 607 | 172.7 |
| D | 6 | 42 | 3409172 | 22868.96 | 515 | 492 | 149.1 |
| D | 8 | 176 | 2011359 | 13490.98 | 515 | 492 | 149.1 |
| D | 11 | 176 | 1435341 | 9626.45 | 515 | 492 | 149.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

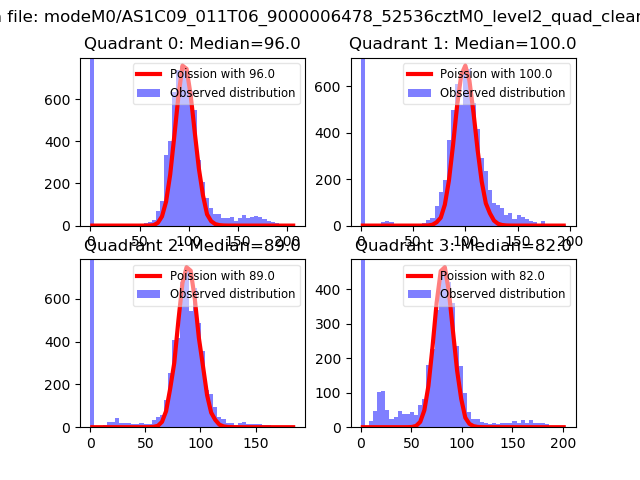

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

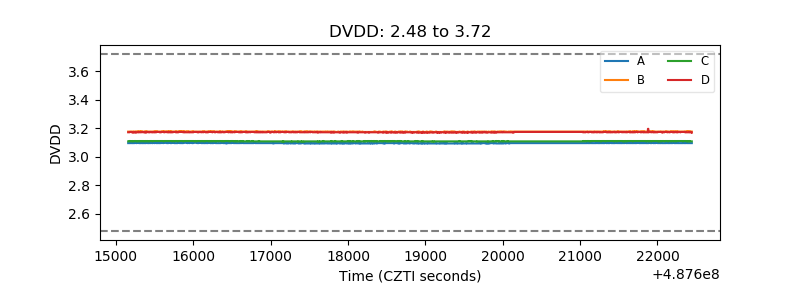

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

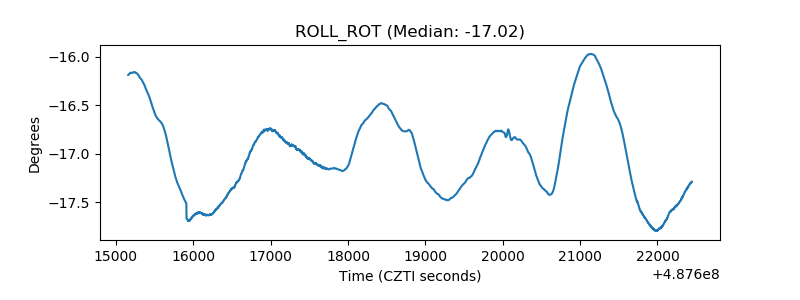

| _ROLL_ROT |  |

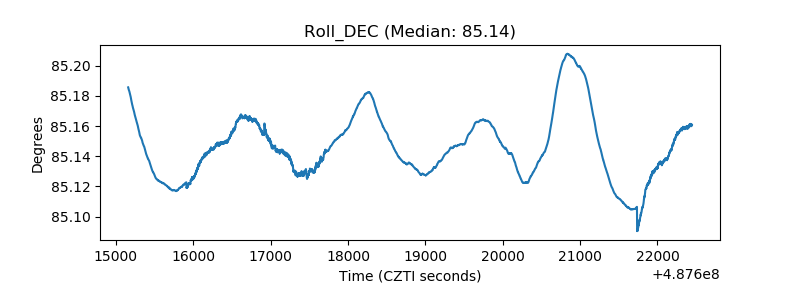

| _Roll_DEC |  |

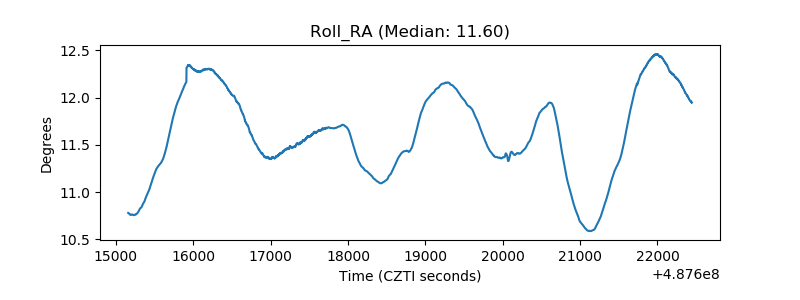

| _Roll_RA |  |

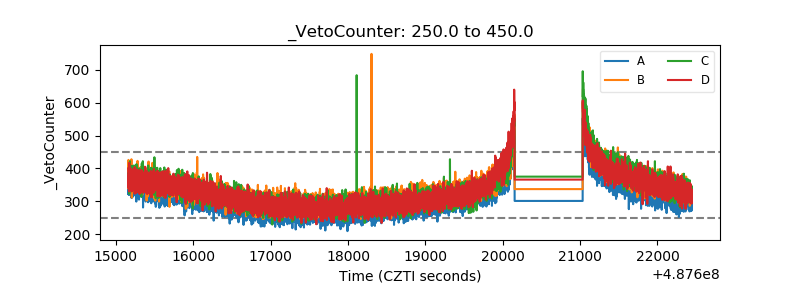

| Veto Counter |  |
