| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52544cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52544cztM0_level2_quad_clean.evt |
| Size (bytes) | 692,182,080 | 89,830,080 |
| Size | 660.1 MB | 85.7 MB |
| Events in quadrant A | 3,262,053 | 642,967 |
| Events in quadrant B | 5,466,376 | 646,092 |
| Events in quadrant C | 4,936,092 | 592,167 |
| Events in quadrant D | 11,420,446 | 355,725 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14961 | 2 |
| B | 0 | 21096 | 9 |
| C | 0 | 19645 | 13 |
| D | 0 | 38800 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6927 | 156 | 2.252057% |
| B | 6927 | 605 | 8.733940% |
| C | 6927 | 413 | 5.962177% |
| D | 6928 | 3072 | 44.341801% |

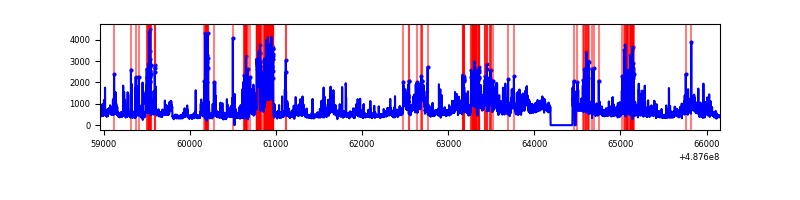

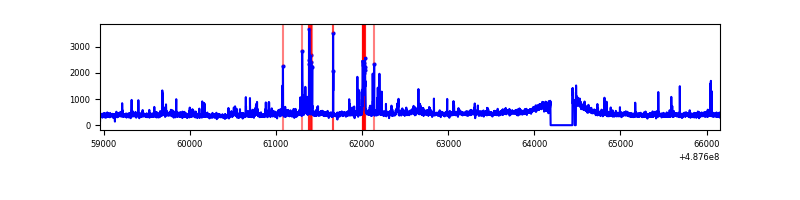

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7198 | 6930 | 25 | 25 | 0.35% | 0.36% |  |
| B | 7199 | 6930 | 279 | 279 | 3.88% | 4.03% |  |
| C | 7199 | 6930 | 266 | 266 | 3.69% | 3.84% |  |
| D | 7199 | 6931 | 2689 | 2689 | 37.35% | 38.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 66823 | 369.26 | 726 | 710 | 179.0 |
| A | 5 | 243 | 62194 | 343.4 | 726 | 710 | 179.0 |
| A | 3 | 45 | 39233 | 215.16 | 726 | 710 | 179.0 |
| B | 10 | 44 | 763582 | 5108.93 | 699 | 675 | 149.3 |
| B | 10 | 254 | 717725 | 4801.84 | 699 | 675 | 149.3 |
| B | 0 | 213 | 390374 | 2609.68 | 699 | 675 | 149.3 |
| C | 15 | 248 | 785761 | 4122.86 | 682 | 675 | 190.4 |
| C | 13 | 3 | 711727 | 3734.08 | 682 | 675 | 190.4 |
| C | 12 | 254 | 262385 | 1374.36 | 682 | 675 | 190.4 |
| D | 6 | 42 | 6601693 | 41003.54 | 554 | 527 | 161.0 |
| D | 15 | 93 | 781764 | 4852.7 | 554 | 527 | 161.0 |
| D | 8 | 176 | 449591 | 2789.39 | 554 | 527 | 161.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

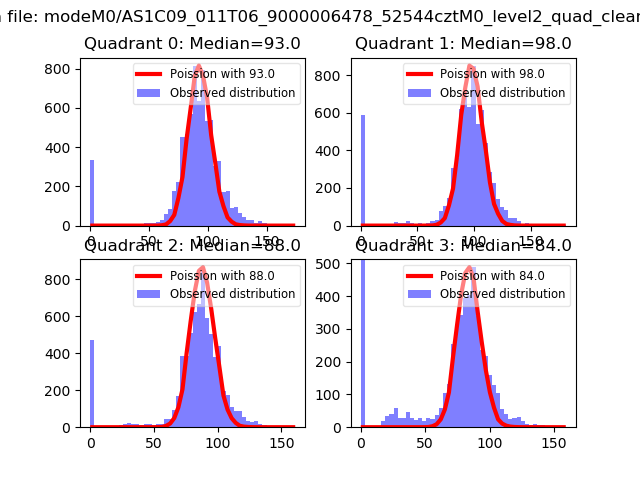

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

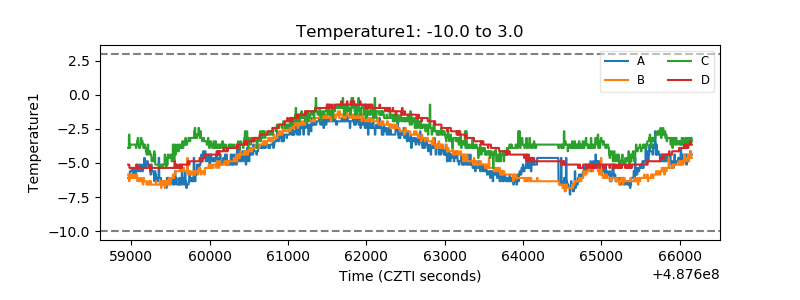

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

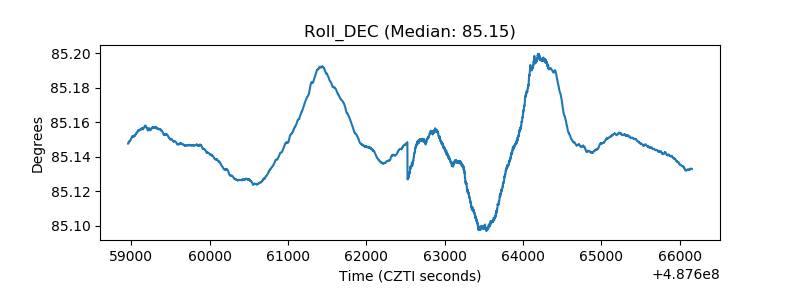

| _Roll_DEC |  |

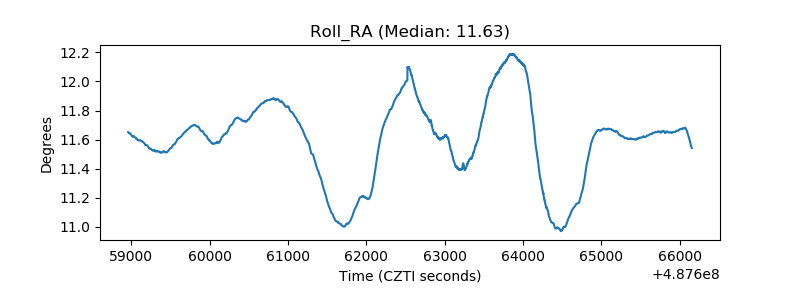

| _Roll_RA |  |

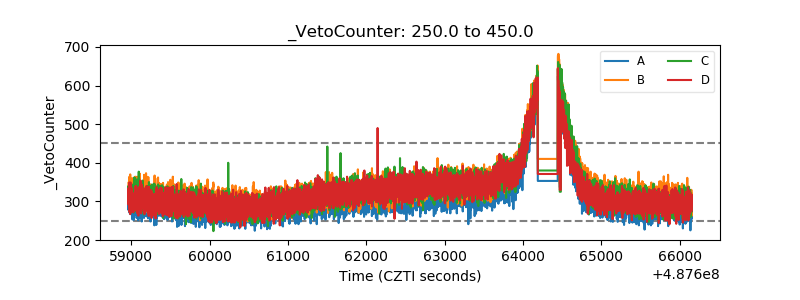

| Veto Counter |  |
