| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52551cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52551cztM0_level2_quad_clean.evt |
| Size (bytes) | 913,351,680 | 71,585,280 |
| Size | 871.0 MB | 68.3 MB |
| Events in quadrant A | 4,554,069 | 574,072 |
| Events in quadrant B | 8,329,546 | 509,176 |
| Events in quadrant C | 7,510,374 | 439,762 |
| Events in quadrant D | 12,933,880 | 208,770 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18115 | 1 |
| B | 0 | 29041 | 1 |
| C | 0 | 26786 | 1 |
| D | 0 | 42683 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6230 | 587 | 9.422151% |
| B | 6230 | 1612 | 25.874799% |
| C | 6231 | 1585 | 25.437329% |
| D | 6231 | 4242 | 68.078960% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7175 | 6231 | 458 | 458 | 6.38% | 7.35% |  |
| B | 7175 | 6231 | 1226 | 1226 | 17.09% | 19.68% |  |
| C | 7176 | 6232 | 1363 | 1363 | 18.99% | 21.87% |  |
| D | 7175 | 6231 | 3790 | 3790 | 52.82% | 60.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 860099 | 5419.79 | 633 | 619 | 158.6 |
| A | 4 | 249 | 623551 | 3928.15 | 633 | 619 | 158.6 |
| A | 4 | 159 | 236709 | 1488.76 | 633 | 619 | 158.6 |
| B | 4 | 170 | 2842148 | 23110.79 | 578 | 559 | 123.0 |
| B | 10 | 44 | 2761273 | 22453.02 | 578 | 559 | 123.0 |
| B | 13 | 245 | 64762 | 522.17 | 578 | 559 | 123.0 |
| C | 15 | 248 | 2941169 | 18617.48 | 561 | 555 | 157.9 |
| C | 15 | 231 | 914484 | 5786.23 | 561 | 555 | 157.9 |
| C | 13 | 3 | 646963 | 4092.51 | 561 | 555 | 157.9 |
| D | 6 | 42 | 8398898 | 69615.41 | 409 | 389 | 120.6 |
| D | 8 | 176 | 1042940 | 8641.73 | 409 | 389 | 120.6 |
| D | 15 | 125 | 602918 | 4994.37 | 409 | 389 | 120.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

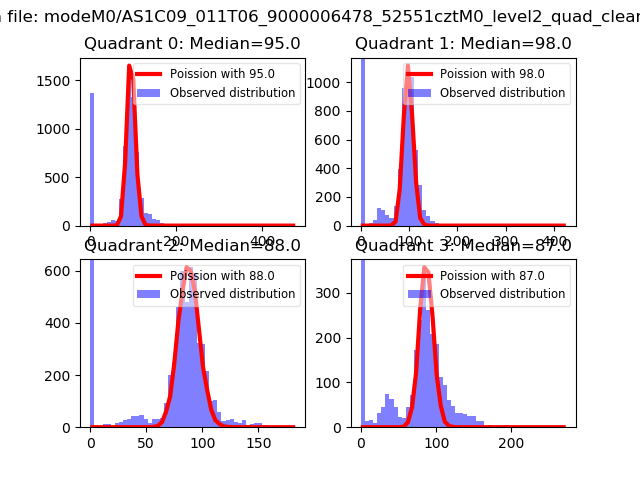

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

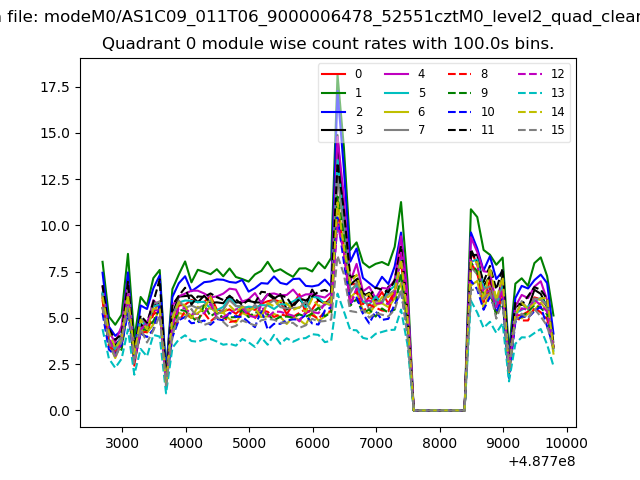

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

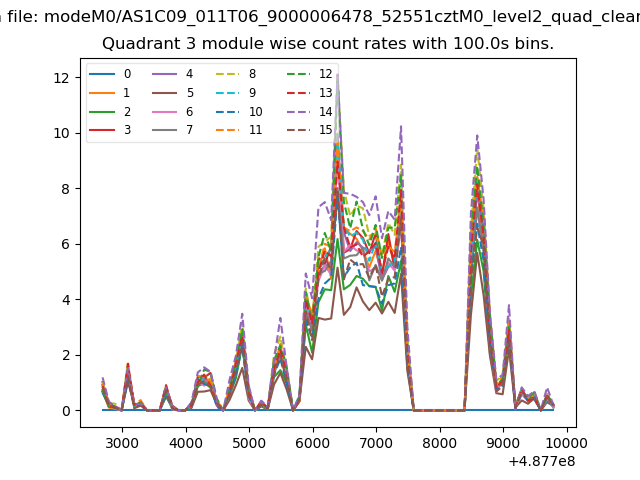

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
