| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52555cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52555cztM0_level2_quad_clean.evt |
| Size (bytes) | 839,629,440 | 82,123,200 |
| Size | 800.7 MB | 78.3 MB |
| Events in quadrant A | 6,756,063 | 563,892 |
| Events in quadrant B | 6,923,893 | 574,468 |
| Events in quadrant C | 6,782,464 | 526,625 |
| Events in quadrant D | 10,121,654 | 372,838 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24579 | 2 |
| B | 0 | 25060 | 2 |
| C | 0 | 24637 | 2 |
| D | 0 | 34538 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6428 | 971 | 15.105787% |
| B | 6428 | 1204 | 18.730554% |
| C | 6428 | 1050 | 16.334785% |
| D | 6427 | 2462 | 38.307142% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

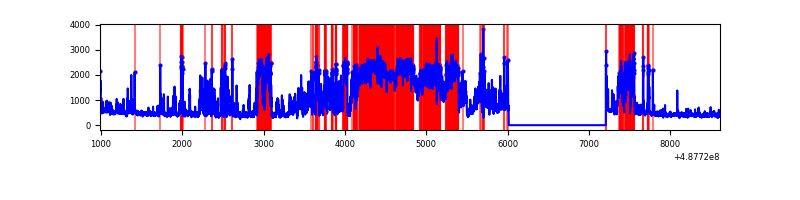

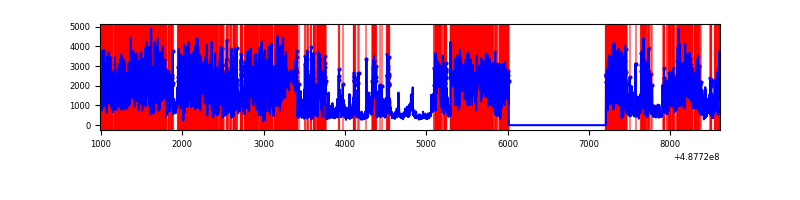

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7623 | 6429 | 1088 | 1088 | 14.27% | 16.92% |  |
| B | 7623 | 6429 | 963 | 963 | 12.63% | 14.98% |  |
| C | 7623 | 6429 | 864 | 864 | 11.33% | 13.44% |  |
| D | 7622 | 6428 | 2179 | 2179 | 28.59% | 33.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 3689584 | 22152.71 | 657 | 639 | 166.5 |
| A | 4 | 95 | 167384 | 1001.33 | 657 | 639 | 166.5 |
| A | 4 | 239 | 63247 | 375.97 | 657 | 639 | 166.5 |
| B | 10 | 254 | 1814081 | 13678.27 | 630 | 609 | 132.6 |
| B | 10 | 44 | 1306850 | 9852.44 | 630 | 609 | 132.6 |
| B | 4 | 170 | 658626 | 4963.15 | 630 | 609 | 132.6 |
| C | 15 | 248 | 1479208 | 8646.85 | 617 | 613 | 171.0 |
| C | 15 | 224 | 960933 | 5615.97 | 617 | 613 | 171.0 |
| C | 13 | 3 | 854857 | 4995.63 | 617 | 613 | 171.0 |
| D | 6 | 42 | 3404593 | 22125.26 | 528 | 503 | 153.9 |
| D | 8 | 176 | 2334568 | 15170.51 | 528 | 503 | 153.9 |
| D | 12 | 17 | 682547 | 4433.02 | 528 | 503 | 153.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

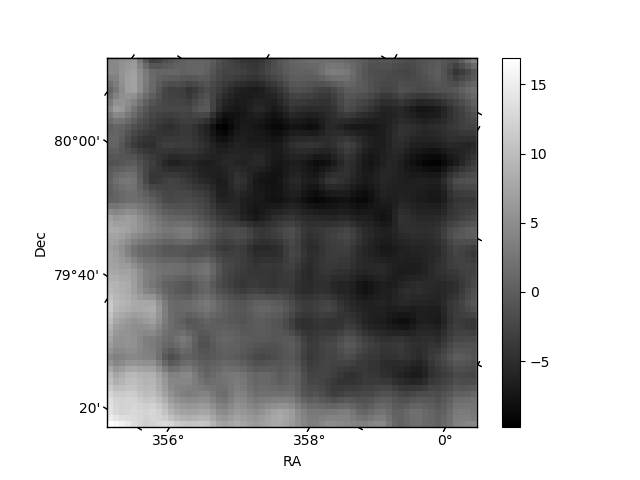

| Plot type | Count rate plots | Images |
|---|---|---|

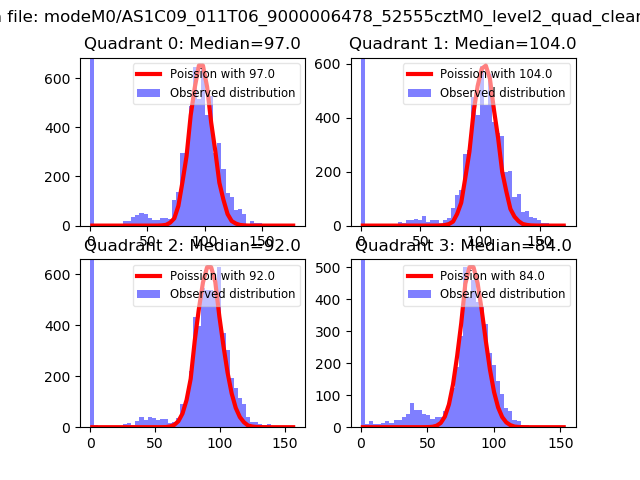

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

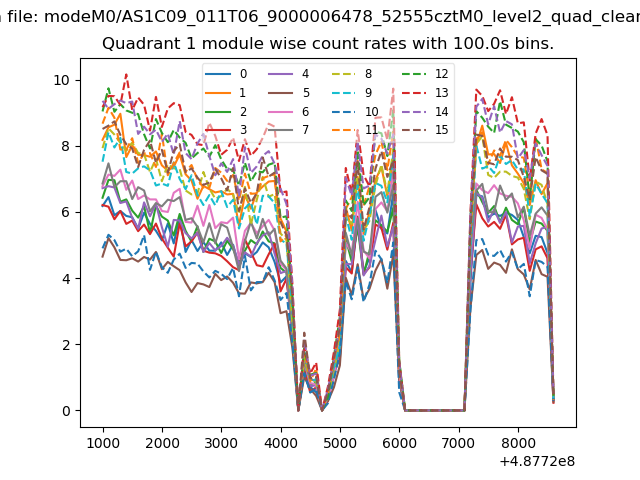

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

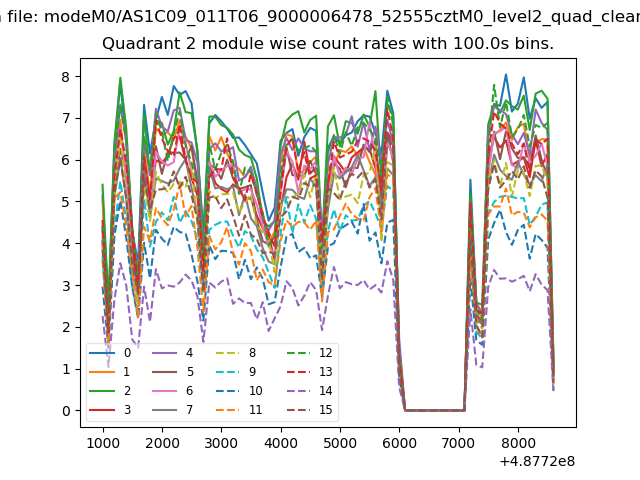

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

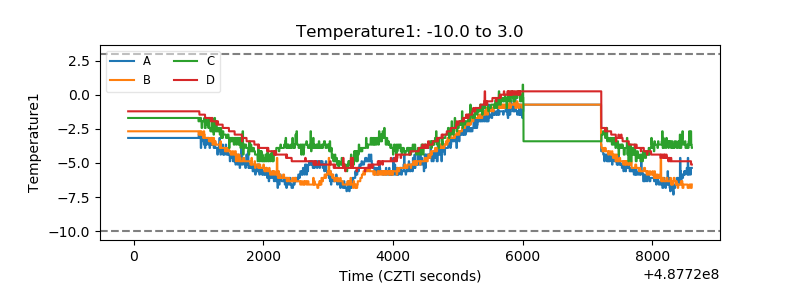

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

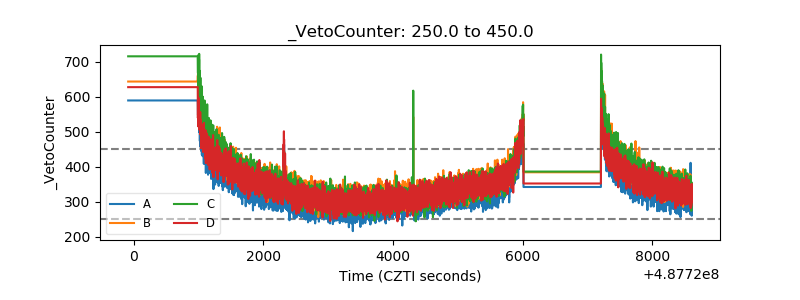

| Veto Counter |  |
