| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52556cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52556cztM0_level2_quad_clean.evt |
| Size (bytes) | 611,424,000 | 91,192,320 |
| Size | 583.1 MB | 87.0 MB |
| Events in quadrant A | 3,321,520 | 626,560 |
| Events in quadrant B | 5,536,586 | 650,043 |
| Events in quadrant C | 5,048,769 | 568,879 |
| Events in quadrant D | 8,215,089 | 455,743 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14969 | 2 |
| B | 0 | 21023 | 2 |
| C | 0 | 19848 | 2 |
| D | 0 | 29036 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6593 | 111 | 1.683604% |
| B | 6593 | 414 | 6.279387% |
| C | 6593 | 546 | 8.281511% |
| D | 6594 | 1478 | 22.414316% |

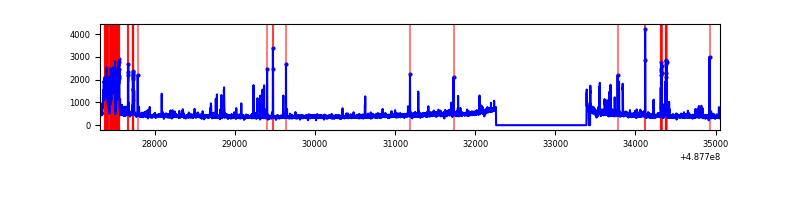

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7738 | 6595 | 103 | 103 | 1.33% | 1.56% |  |
| B | 7738 | 6595 | 230 | 230 | 2.97% | 3.49% |  |
| C | 7738 | 6595 | 443 | 443 | 5.72% | 6.72% |  |
| D | 7739 | 6596 | 1305 | 1305 | 16.86% | 19.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 327821 | 1925.45 | 677 | 659 | 169.9 |
| A | 13 | 248 | 65806 | 383.41 | 677 | 659 | 169.9 |
| A | 4 | 159 | 63233 | 368.27 | 677 | 659 | 169.9 |
| B | 4 | 170 | 1150245 | 8222.78 | 662 | 640 | 139.8 |
| B | 10 | 254 | 646519 | 4619.78 | 662 | 640 | 139.8 |
| B | 10 | 44 | 498542 | 3561.34 | 662 | 640 | 139.8 |
| C | 15 | 224 | 899629 | 5092.96 | 639 | 634 | 176.5 |
| C | 15 | 248 | 608156 | 3441.72 | 639 | 634 | 176.5 |
| C | 13 | 3 | 367507 | 2078.4 | 639 | 634 | 176.5 |
| D | 6 | 42 | 2454818 | 14506.61 | 585 | 558 | 169.2 |
| D | 8 | 176 | 772390 | 4562.13 | 585 | 558 | 169.2 |
| D | 12 | 17 | 566165 | 3343.18 | 585 | 558 | 169.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

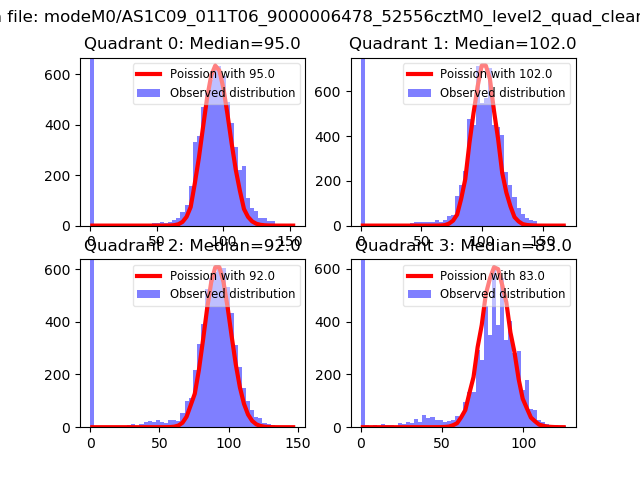

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

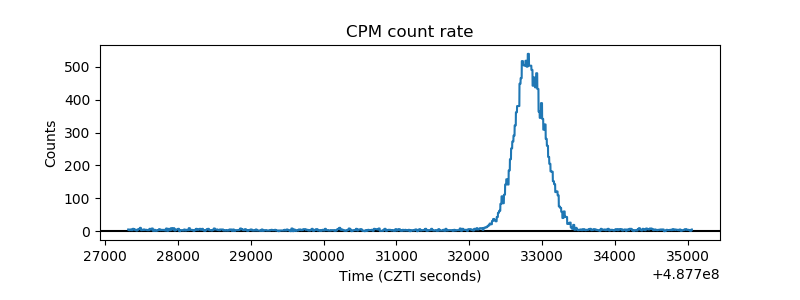

| _CPM_Rate |  |

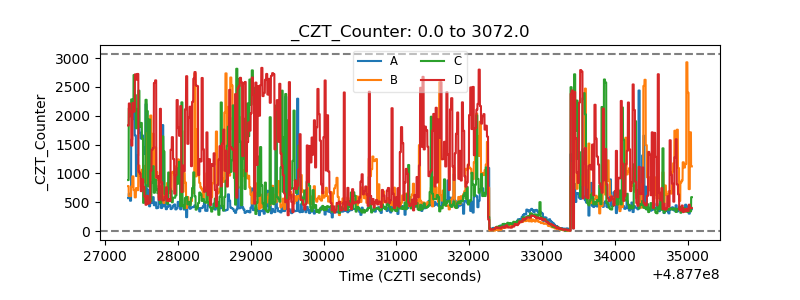

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
