| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52557cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52557cztM0_level2_quad_clean.evt |
| Size (bytes) | 767,615,040 | 86,022,720 |
| Size | 732.1 MB | 82.0 MB |
| Events in quadrant A | 3,249,290 | 639,041 |
| Events in quadrant B | 9,063,190 | 530,662 |
| Events in quadrant C | 4,805,075 | 589,602 |
| Events in quadrant D | 10,769,077 | 369,658 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14992 | 3 |
| B | 0 | 31661 | 3 |
| C | 0 | 19231 | 3 |
| D | 0 | 36756 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6818 | 76 | 1.114696% |
| B | 6817 | 1812 | 26.580607% |
| C | 6817 | 388 | 5.691653% |
| D | 6817 | 2750 | 40.340326% |

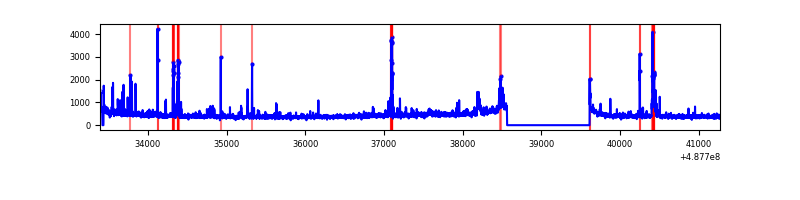

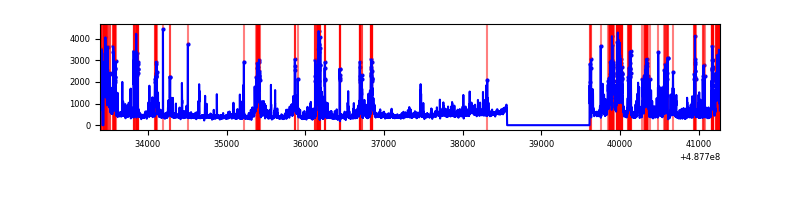

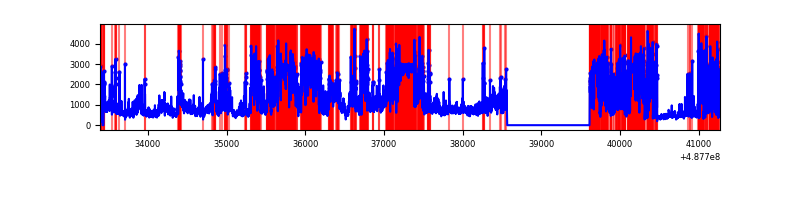

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7883 | 6820 | 42 | 42 | 0.53% | 0.62% |  |
| B | 7882 | 6819 | 1543 | 1543 | 19.58% | 22.63% |  |
| C | 7882 | 6819 | 354 | 354 | 4.49% | 5.19% |  |
| D | 7881 | 6817 | 2450 | 2450 | 31.09% | 35.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 95 | 142873 | 818.45 | 695 | 678 | 173.7 |
| A | 3 | 14 | 101434 | 579.93 | 695 | 678 | 173.7 |
| A | 13 | 248 | 85470 | 488.05 | 695 | 678 | 173.7 |
| B | 10 | 44 | 4041247 | 31832.06 | 600 | 579 | 126.9 |
| B | 10 | 254 | 1363393 | 10736.14 | 600 | 579 | 126.9 |
| B | 4 | 170 | 758129 | 5967.92 | 600 | 579 | 126.9 |
| C | 15 | 248 | 1420787 | 7751.56 | 661 | 653 | 183.2 |
| C | 15 | 224 | 229426 | 1248.72 | 661 | 653 | 183.2 |
| C | 13 | 3 | 108034 | 586.12 | 661 | 653 | 183.2 |
| D | 6 | 42 | 5145320 | 31998.47 | 547 | 521 | 160.8 |
| D | 8 | 176 | 1247414 | 7755.15 | 547 | 521 | 160.8 |
| D | 2 | 62 | 640973 | 3983.34 | 547 | 521 | 160.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

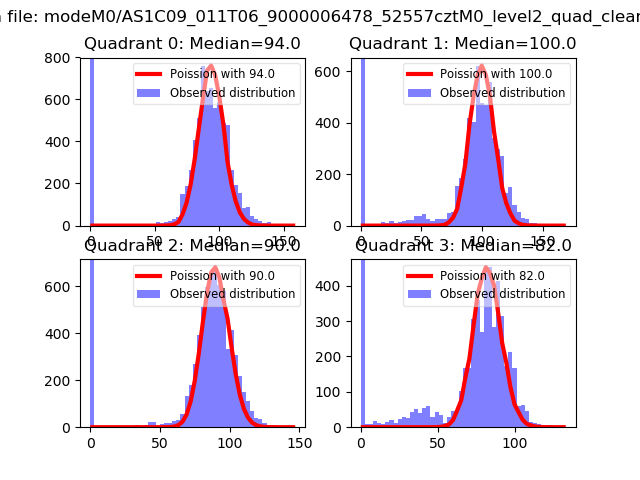

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

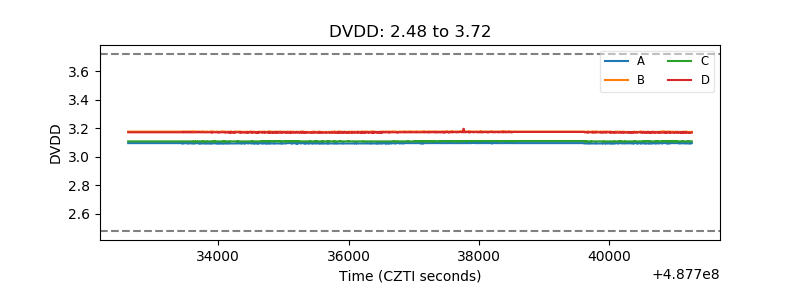

| D_VDD |  |

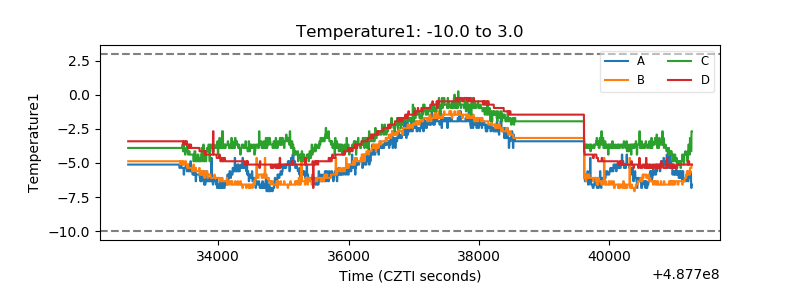

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

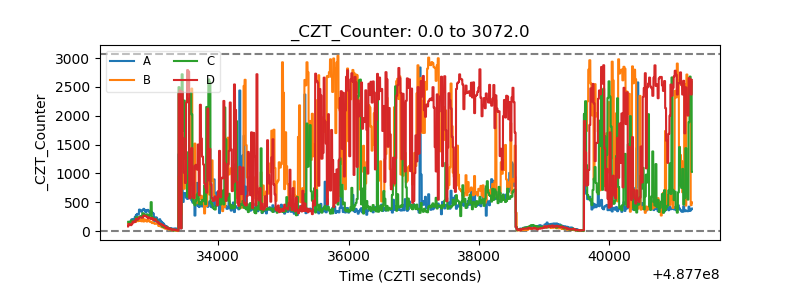

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

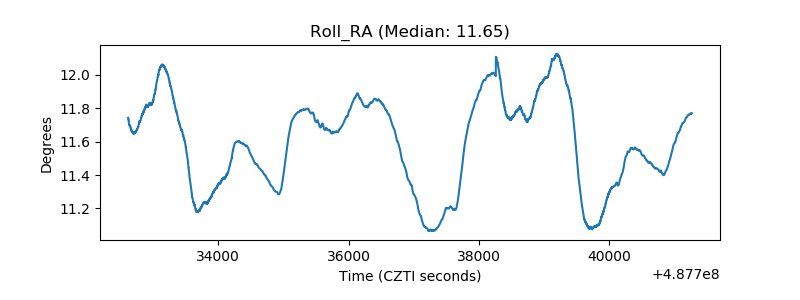

| _Roll_RA |  |
| Veto Counter |  |
