| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52559cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52559cztM0_level2_quad_clean.evt |
| Size (bytes) | 940,135,680 | 85,273,920 |
| Size | 896.6 MB | 81.3 MB |
| Events in quadrant A | 3,593,521 | 664,746 |
| Events in quadrant B | 8,167,869 | 603,033 |
| Events in quadrant C | 10,592,557 | 458,009 |
| Events in quadrant D | 11,893,646 | 357,220 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16235 | 0 |
| B | 0 | 29221 | 2 |
| C | 0 | 36449 | 0 |
| D | 0 | 40286 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7164 | 106 | 1.479620% |
| B | 7163 | 1344 | 18.763088% |
| C | 7163 | 2364 | 33.002932% |
| D | 7163 | 3123 | 43.599051% |

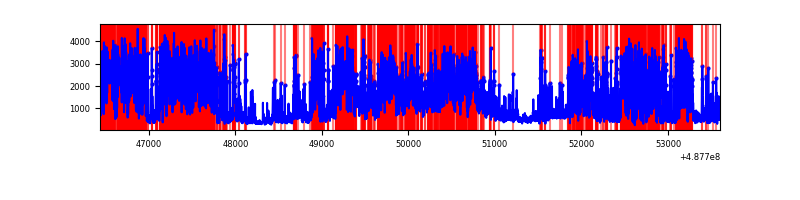

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7164 | 7164 | 70 | 70 | 0.98% | 0.98% |  |
| B | 7163 | 7163 | 960 | 960 | 13.40% | 13.40% |  |
| C | 7163 | 7163 | 2084 | 2084 | 29.09% | 29.09% |  |
| D | 7162 | 7162 | 2647 | 2647 | 36.96% | 36.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 177622 | 947.26 | 747 | 727 | 186.7 |
| A | 4 | 205 | 101572 | 540.02 | 747 | 727 | 186.7 |
| A | 15 | 174 | 94334 | 501.26 | 747 | 727 | 186.7 |
| B | 10 | 44 | 2960207 | 20340.04 | 685 | 661 | 145.5 |
| B | 10 | 254 | 1204129 | 8271.06 | 685 | 661 | 145.5 |
| B | 4 | 170 | 722552 | 4961.33 | 685 | 661 | 145.5 |
| C | 15 | 248 | 5438658 | 31425.4 | 629 | 623 | 173.0 |
| C | 2 | 12 | 1268806 | 7328.6 | 629 | 623 | 173.0 |
| C | 13 | 3 | 703657 | 4062.7 | 629 | 623 | 173.0 |
| D | 6 | 42 | 4443305 | 28602.54 | 542 | 517 | 155.3 |
| D | 2 | 62 | 1750450 | 11266.02 | 542 | 517 | 155.3 |
| D | 8 | 176 | 1305740 | 8402.99 | 542 | 517 | 155.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

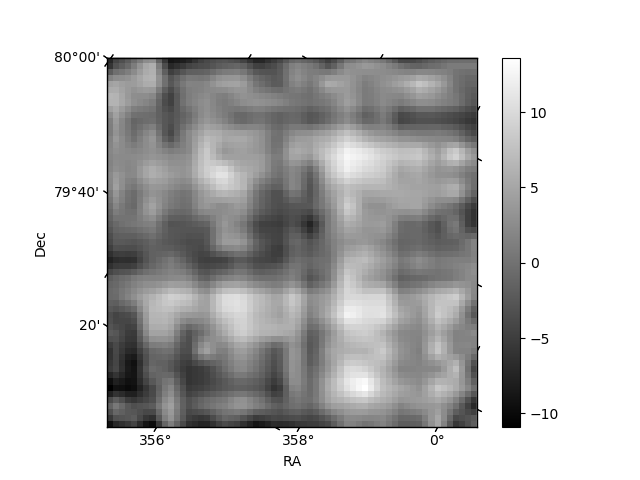

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

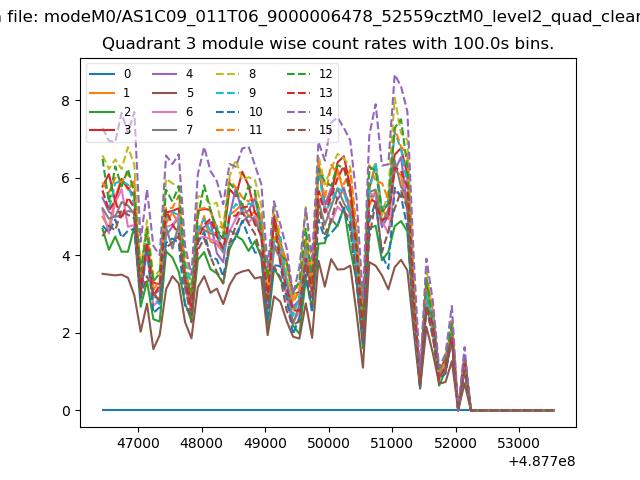

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

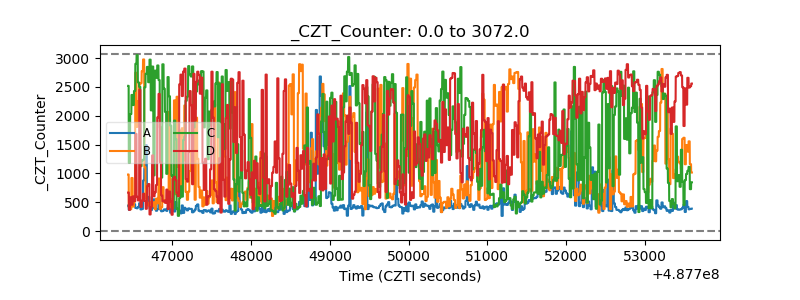

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

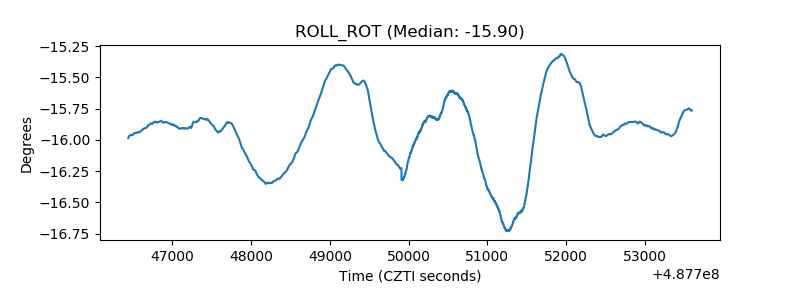

| _ROLL_ROT |  |

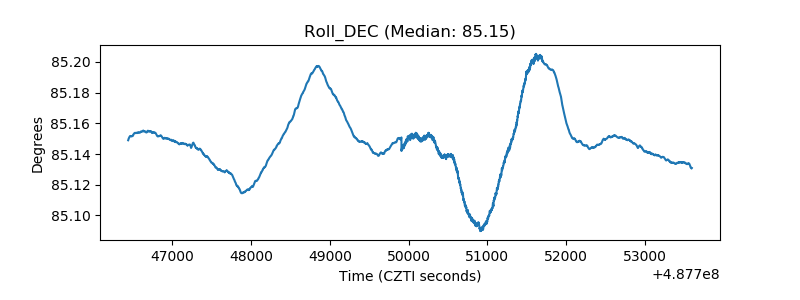

| _Roll_DEC |  |

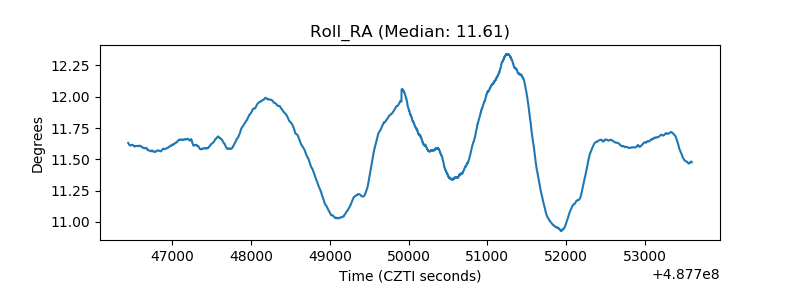

| _Roll_RA |  |

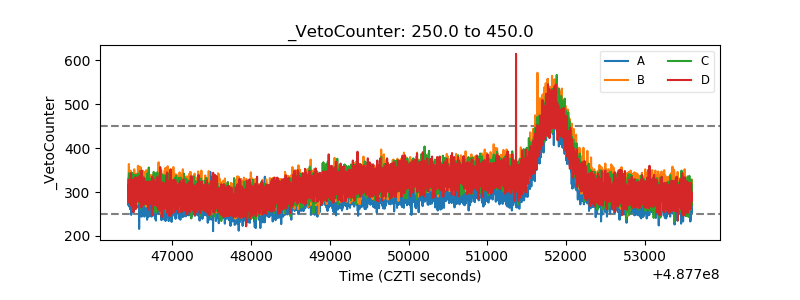

| Veto Counter |  |
