| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52565cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52565cztM0_level2_quad_clean.evt |
| Size (bytes) | 637,269,120 | 91,540,800 |
| Size | 607.7 MB | 87.3 MB |
| Events in quadrant A | 4,112,415 | 641,844 |
| Events in quadrant B | 5,576,153 | 628,633 |
| Events in quadrant C | 4,975,031 | 581,208 |
| Events in quadrant D | 8,406,949 | 452,425 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16967 | 1 |
| B | 0 | 21070 | 1 |
| C | 0 | 19603 | 1 |
| D | 0 | 29727 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6697 | 203 | 3.031208% |
| B | 6698 | 649 | 9.689460% |
| C | 6698 | 454 | 6.778143% |
| D | 6698 | 1813 | 27.067781% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 6698 | 170 | 170 | 2.24% | 2.54% |  |
| B | 7583 | 6699 | 525 | 525 | 6.92% | 7.84% |  |
| C | 7583 | 6699 | 368 | 368 | 4.85% | 5.49% |  |
| D | 7583 | 6699 | 1088 | 1088 | 14.35% | 16.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 243 | 542340 | 3065.9 | 706 | 688 | 176.7 |
| A | 4 | 249 | 340715 | 1924.65 | 706 | 688 | 176.7 |
| A | 7 | 112 | 223924 | 1263.58 | 706 | 688 | 176.7 |
| B | 10 | 44 | 1522821 | 10630.48 | 671 | 646 | 143.2 |
| B | 7 | 0 | 268921 | 1873.56 | 671 | 646 | 143.2 |
| B | 13 | 245 | 236237 | 1645.31 | 671 | 646 | 143.2 |
| C | 13 | 3 | 891969 | 4765.66 | 675 | 669 | 187.0 |
| C | 15 | 248 | 837659 | 4475.27 | 675 | 669 | 187.0 |
| C | 15 | 224 | 229985 | 1226.12 | 675 | 669 | 187.0 |
| D | 8 | 176 | 2129502 | 12527.37 | 579 | 551 | 169.9 |
| D | 7 | 38 | 1309396 | 7701.62 | 579 | 551 | 169.9 |
| D | 15 | 125 | 466037 | 2739.05 | 579 | 551 | 169.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

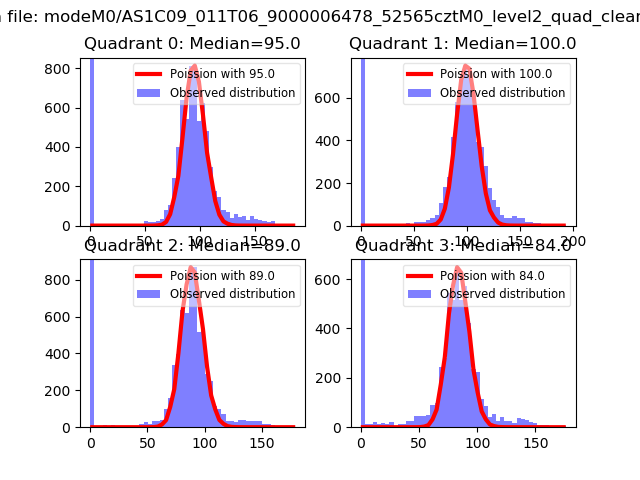

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

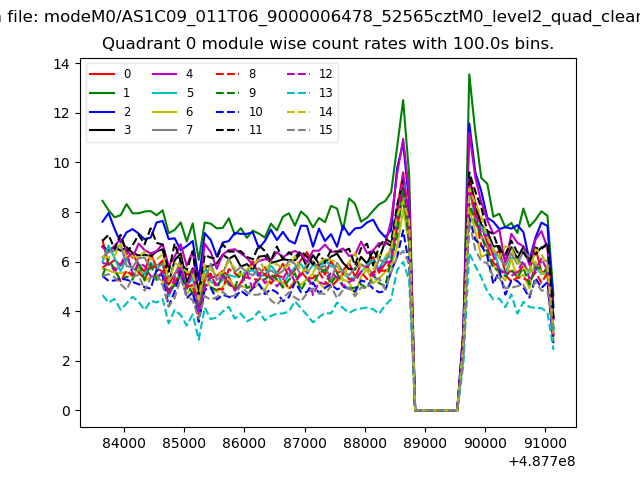

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

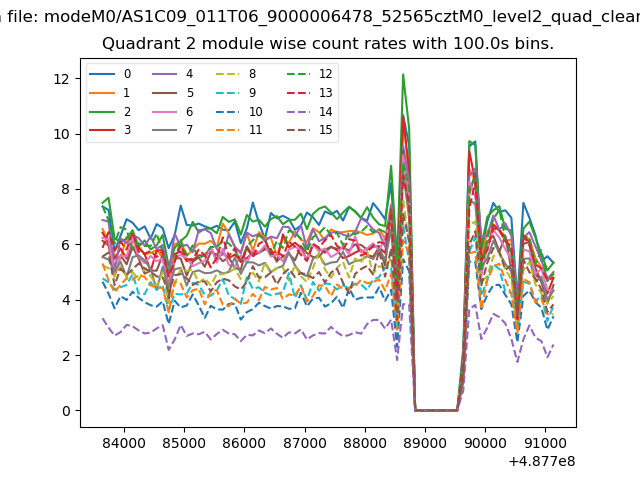

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

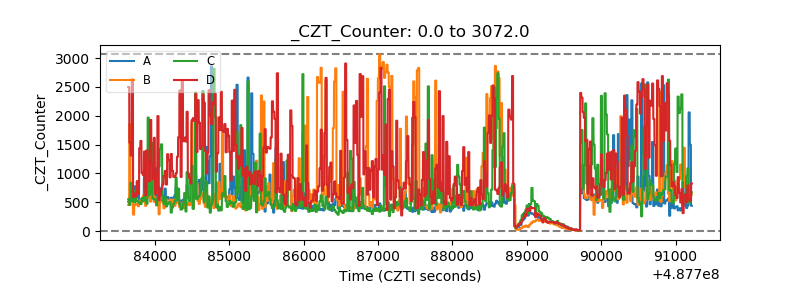

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

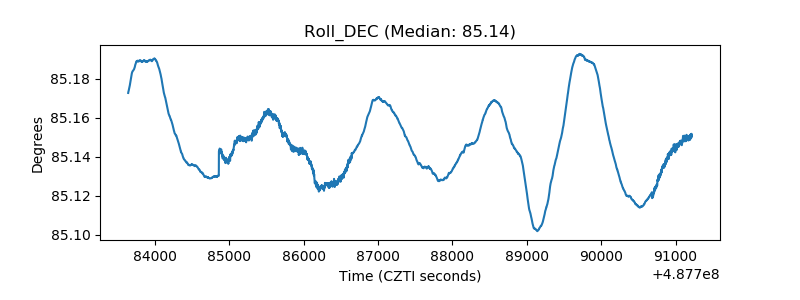

| _Roll_DEC |  |

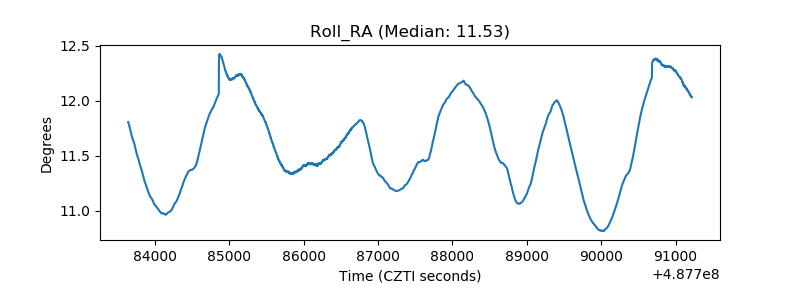

| _Roll_RA |  |
| Veto Counter |  |
