| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52569cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52569cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,588,800 | 90,181,440 |
| Size | 573.7 MB | 86.0 MB |
| Events in quadrant A | 3,203,401 | 620,141 |
| Events in quadrant B | 5,161,949 | 659,909 |
| Events in quadrant C | 5,838,992 | 538,388 |
| Events in quadrant D | 7,574,102 | 469,948 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14196 | 2 |
| B | 0 | 19653 | 2 |
| C | 0 | 21982 | 2 |
| D | 0 | 26964 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6329 | 112 | 1.769632% |
| B | 6330 | 246 | 3.886256% |
| C | 6330 | 847 | 13.380727% |
| D | 6330 | 1257 | 19.857820% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7539 | 6330 | 69 | 69 | 0.92% | 1.09% |  |
| B | 7540 | 6331 | 195 | 195 | 2.59% | 3.08% |  |
| C | 7540 | 6331 | 686 | 686 | 9.10% | 10.84% |  |
| D | 7540 | 6331 | 1133 | 1133 | 15.03% | 17.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 243 | 180510 | 1070.31 | 665 | 648 | 168.0 |
| A | 13 | 248 | 96316 | 569.29 | 665 | 648 | 168.0 |
| A | 15 | 174 | 64756 | 381.49 | 665 | 648 | 168.0 |
| B | 10 | 254 | 1370750 | 9842.18 | 658 | 635 | 139.2 |
| B | 10 | 44 | 265490 | 1902.58 | 658 | 635 | 139.2 |
| B | 4 | 81 | 143222 | 1024.27 | 658 | 635 | 139.2 |
| C | 15 | 248 | 2292088 | 13330.06 | 623 | 618 | 171.9 |
| C | 15 | 224 | 598317 | 3476.97 | 623 | 618 | 171.9 |
| C | 13 | 3 | 253738 | 1472.46 | 623 | 618 | 171.9 |
| D | 8 | 176 | 2162492 | 12654.31 | 590 | 563 | 170.8 |
| D | 6 | 42 | 628306 | 3674.34 | 590 | 563 | 170.8 |
| D | 2 | 62 | 595853 | 3484.38 | 590 | 563 | 170.8 |

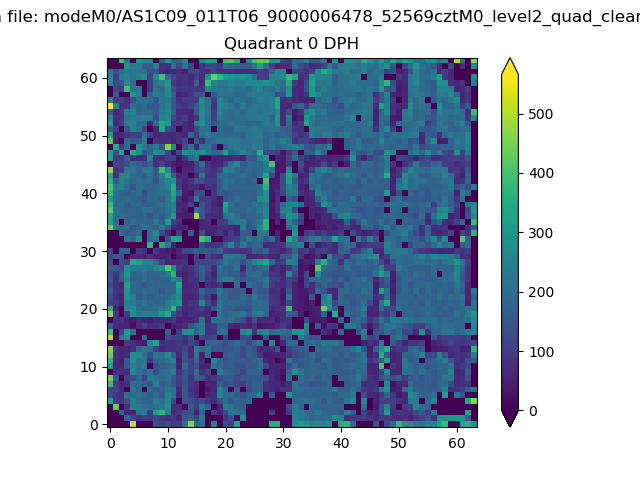

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

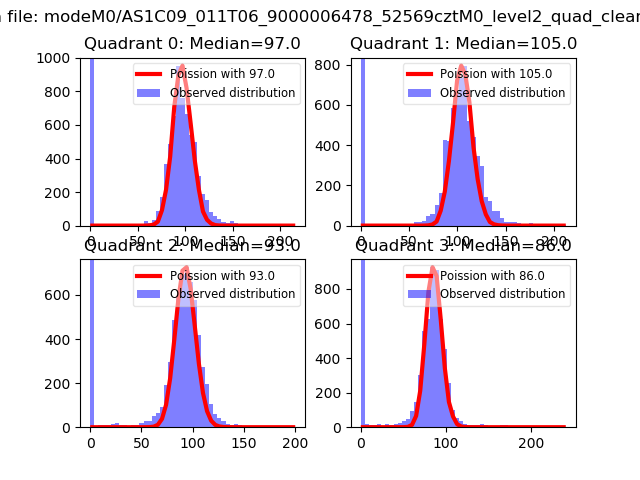

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

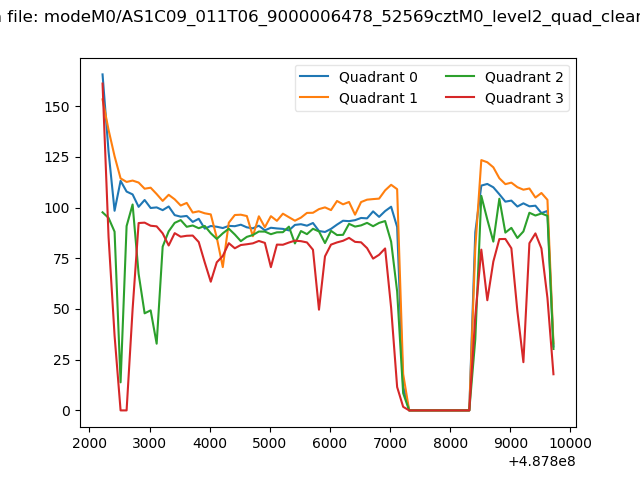

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

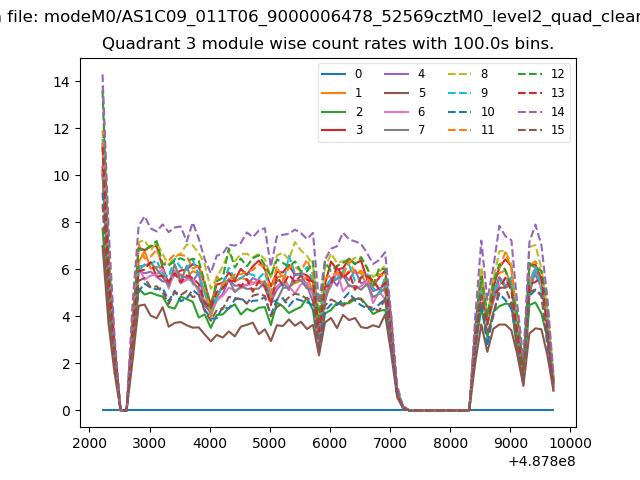

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

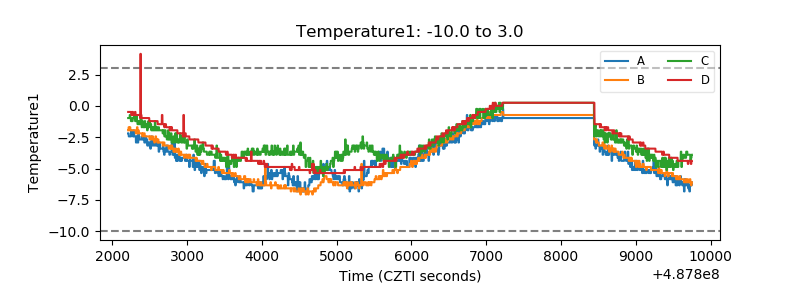

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

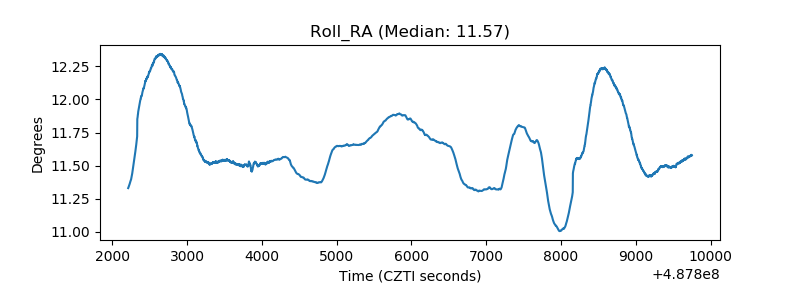

| _Roll_RA |  |
| Veto Counter |  |
