| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52570cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52570cztM0_level2_quad_clean.evt |
| Size (bytes) | 694,848,960 | 86,299,200 |
| Size | 662.7 MB | 82.3 MB |
| Events in quadrant A | 3,402,542 | 609,080 |
| Events in quadrant B | 7,229,331 | 583,648 |
| Events in quadrant C | 4,253,388 | 576,949 |
| Events in quadrant D | 10,341,833 | 397,723 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14946 | 2 |
| B | 0 | 25892 | 2 |
| C | 0 | 17424 | 2 |
| D | 0 | 35156 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6381 | 168 | 2.632816% |
| B | 6381 | 1049 | 16.439430% |
| C | 6381 | 341 | 5.343990% |
| D | 6381 | 2193 | 34.367654% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

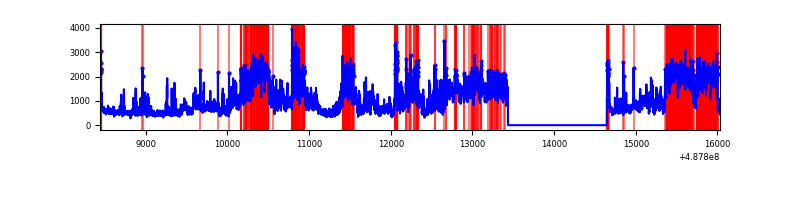

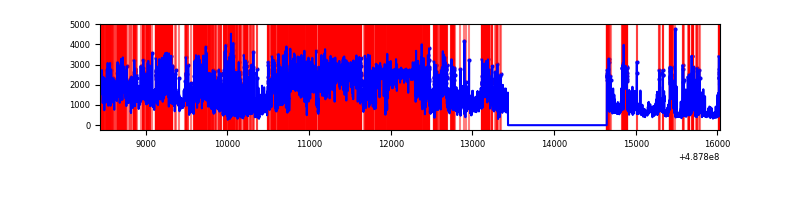

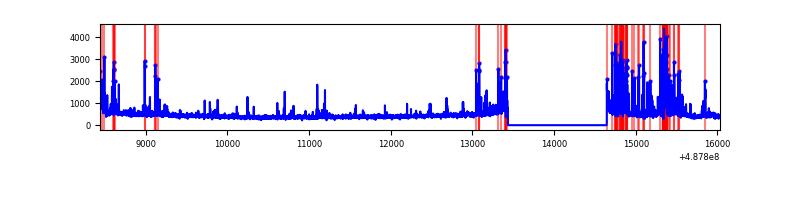

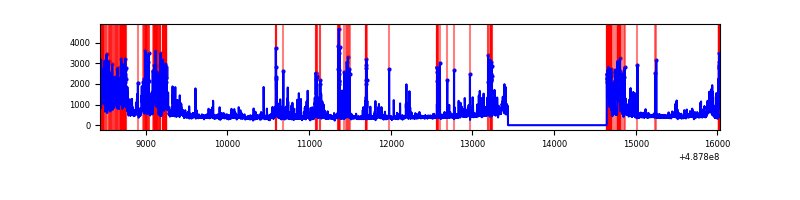

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6382 | 119 | 119 | 1.57% | 1.86% |  |
| B | 7591 | 6382 | 833 | 833 | 10.97% | 13.05% |  |
| C | 7590 | 6381 | 265 | 265 | 3.49% | 4.15% |  |
| D | 7591 | 6382 | 2177 | 2177 | 28.68% | 34.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 243 | 446124 | 2689.83 | 659 | 644 | 165.6 |
| A | 8 | 249 | 80001 | 479.16 | 659 | 644 | 165.6 |
| A | 13 | 248 | 61153 | 365.36 | 659 | 644 | 165.6 |
| B | 10 | 254 | 2705375 | 19872.14 | 642 | 619 | 136.1 |
| B | 7 | 0 | 1117881 | 8208.65 | 642 | 619 | 136.1 |
| B | 10 | 44 | 272805 | 1999.78 | 642 | 619 | 136.1 |
| C | 15 | 248 | 1068403 | 5947.77 | 642 | 633 | 179.5 |
| C | 15 | 224 | 328651 | 1827.15 | 642 | 633 | 179.5 |
| C | 13 | 3 | 156828 | 870.05 | 642 | 633 | 179.5 |
| D | 6 | 42 | 4235337 | 26363.48 | 554 | 529 | 160.6 |
| D | 2 | 62 | 929368 | 5782.42 | 554 | 529 | 160.6 |
| D | 8 | 176 | 900572 | 5603.15 | 554 | 529 | 160.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

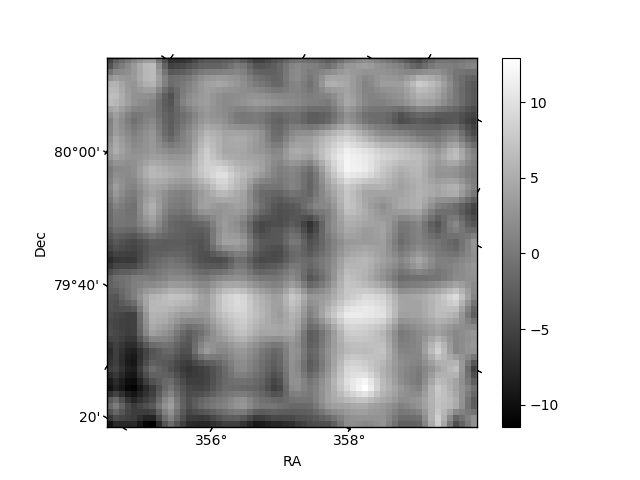

| Plot type | Count rate plots | Images |
|---|---|---|

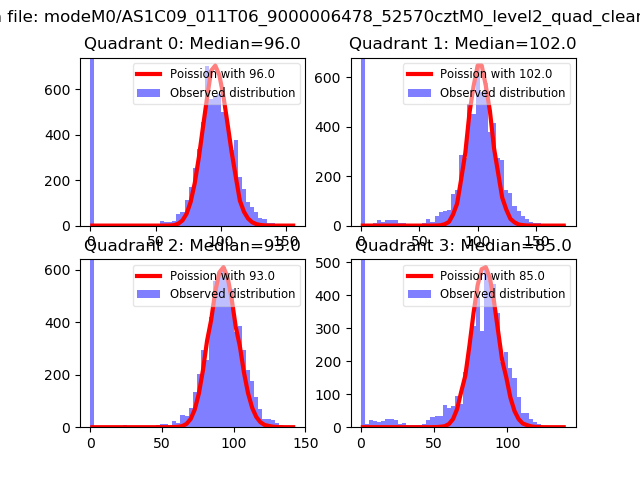

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

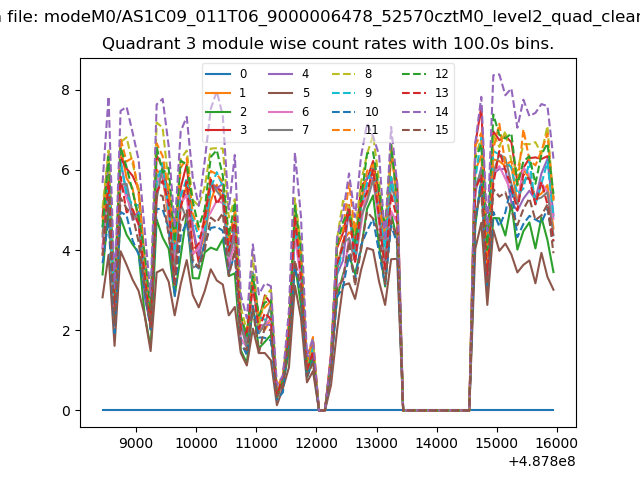

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

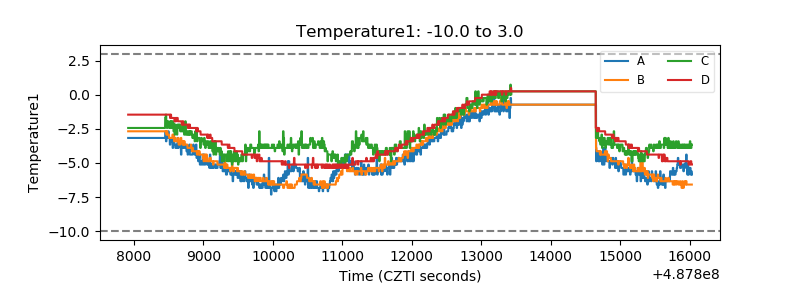

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

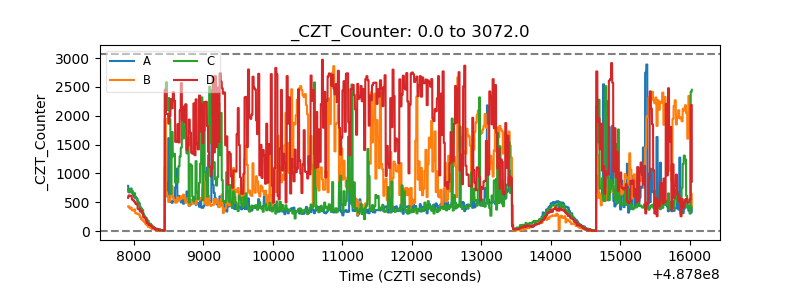

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

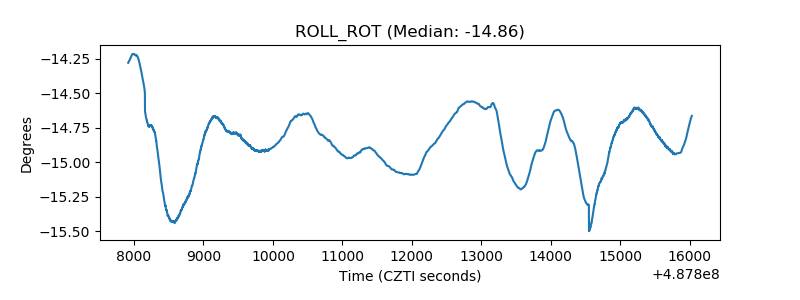

| _ROLL_ROT |  |

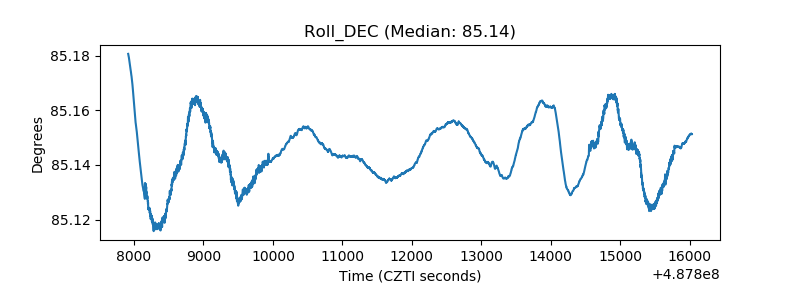

| _Roll_DEC |  |

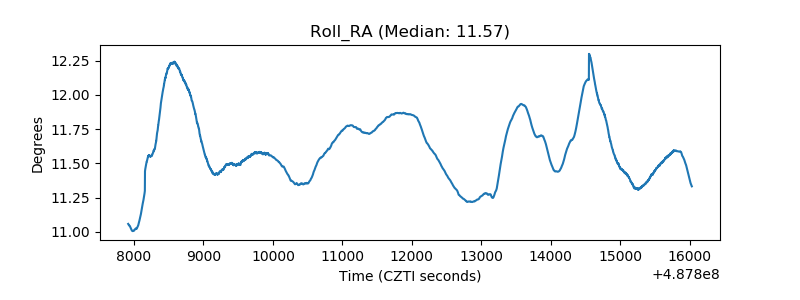

| _Roll_RA |  |

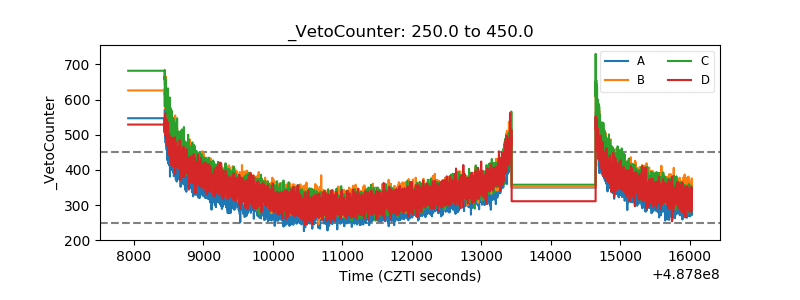

| Veto Counter |  |
